Assembling Dpp-350; Preparation Of Bottom Cover - Infinite Peripherals DPP-350 Work Instructions

1 DATECS

7. Assembling DPP-350

7.1 Preparation of bottom cover

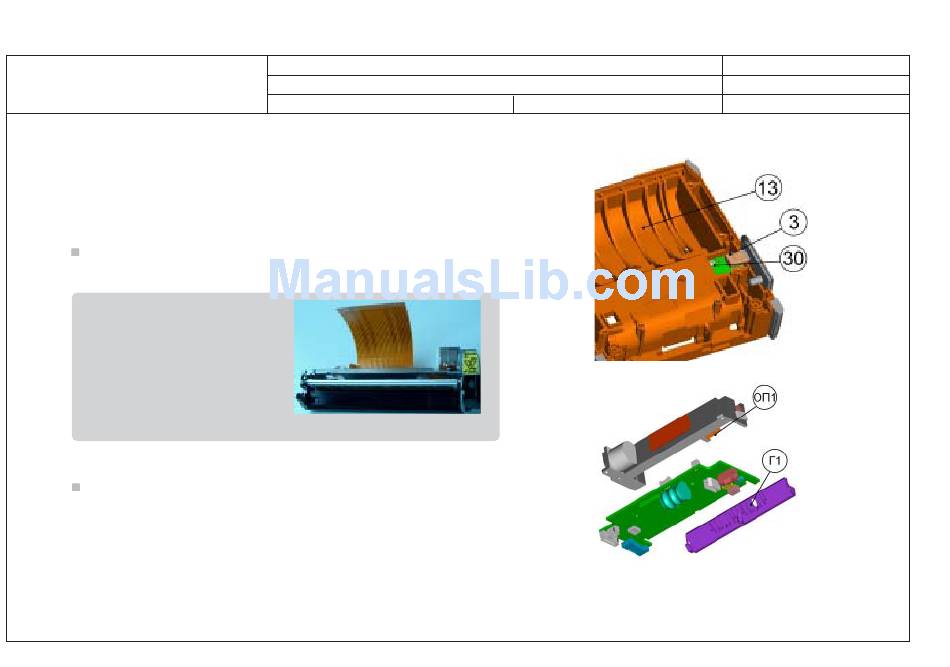

To the bottom cover (pos.13) is mounted USB PCB (pos.3) with the help of one screw
2 õ 6 mm (pos.30) (fig. 33)
REMARK:
Plastic attachment (fig. 34) of printer
mechanism is removed taking care
that optron cable is not destroyed or
cut.!
Optron (pos.ÎÏ1) is placed on inner side of printer mechanism's attachment (pos.3)
in a socket (pos.Ã1) and is glued with two drops of hot silicone (fig. 35)
EN ISO 9001:2000
WORK INSTRUCTIONS
model: DPP-350
Fig.34
edition: 02
Fig.33
Fig.35
identif.No: WI 07.01.52
Version: 2
Page. 13 from . 30
