1 DATECS

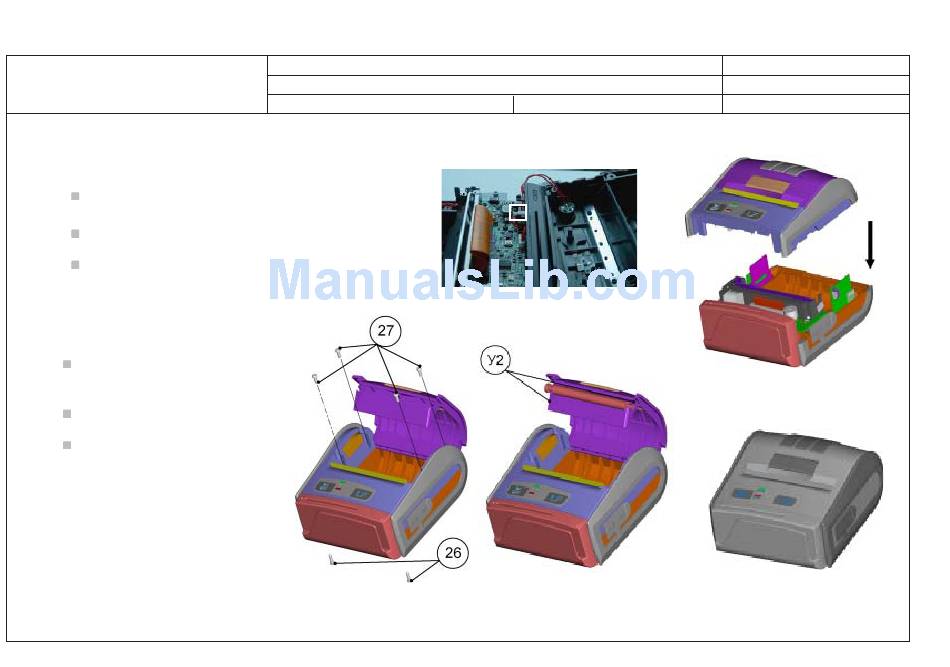

7.3 Closing of printer DPP-350

Connect the buzzer to connector CN9 on Main PCB (fig.66) and
connect the two covers (ôèã.67).
With four screws 2.5 õ 8 mm (pos.27) are fixed the two covers in the
middle and back side.
With another two screws 2.2 õ 9.5 mm (pos.26) are fixed the two
covers in the front side (fig.68).
Printer mechanism's Roller (fig.26) is
placed in the respective place (Ó2) on
paper cover so that a click is heard (fig.69).
Place the paper cover in the plae for it
and close paper cover.
After this step thermal printer DPP-350
is fully assembled! (fig.70).
EN ISO 9001:2000
WORK INSTRUCTIONS
model: DPP-350
Fig.68
edition: 02
Fig.66
Fig.67
Fig.69
identif.No: WI 07.01.52
Version: 2
Page. 23 from . 30
Fig.70
