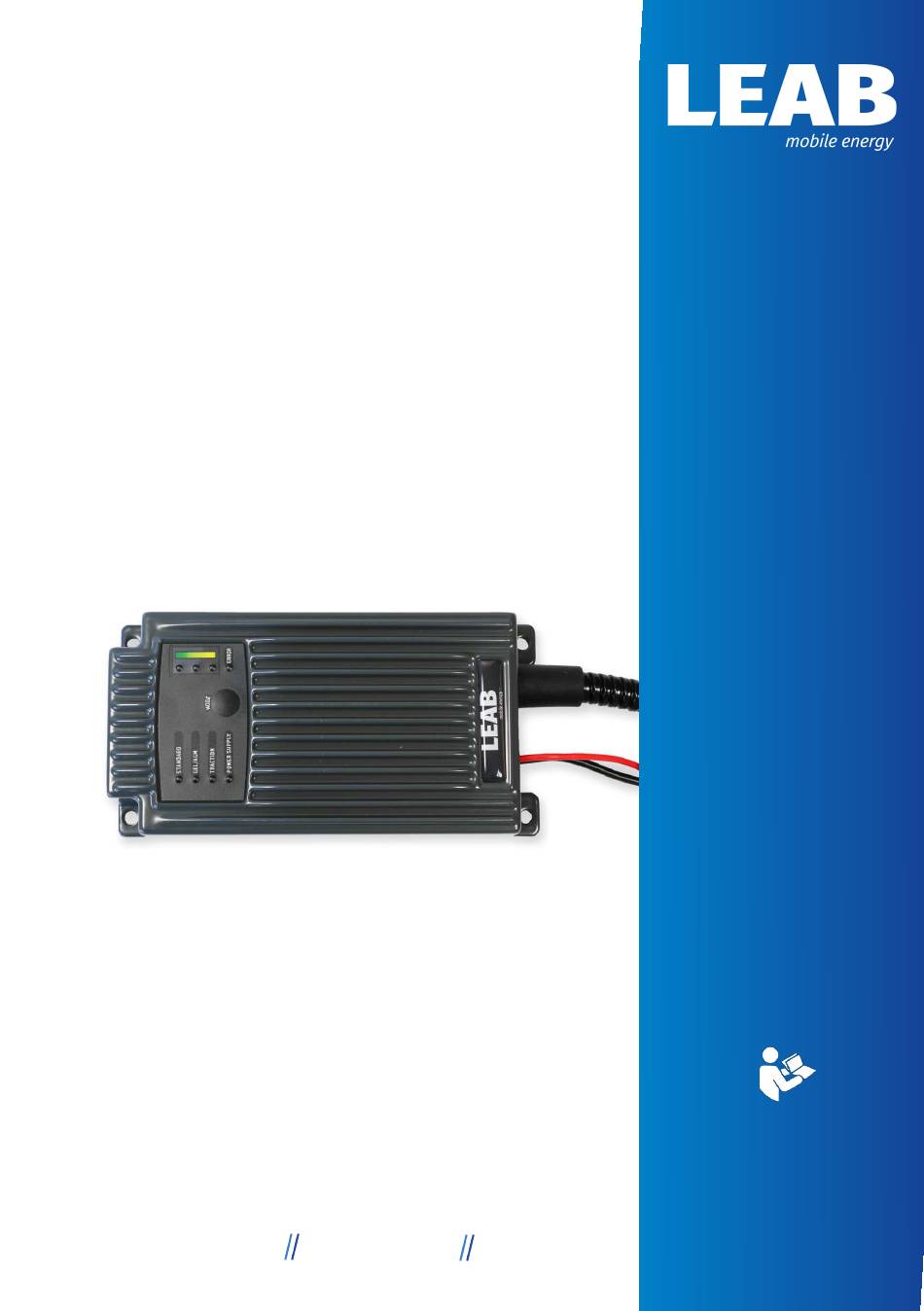

- Page 1 CHARGER CHAMP PRO 24 V USER MANUAL VERSION 8 19/08/2021 www.leab.eu LEAB Automotive GmbH Thorshammer 6 24866 Busdorf...
-
Page 2: Table Of Contents
Table of Contents LEAB Automotive GmbH Table of Contents 1 About this Manual ........................ 2 Safety ............................Intended Use....................... Foreseeable Misuse....................3 About this Product ....................... 4 Technical specifications..................... 5 Package Contents ......................... 6 Charging Characteristics....................7 Assembly ..........................8 Installation ..........................16 9 Operation.......................... -
Page 3: About This Manual
Skilled workers in the field of automotive electrics. Any modifications to the product or its components are prohibited and do not conform to its intended use. Only use original LEAB or LEAB-approved ac- cessories. Throughout the manual, you will be alerted to warnings and safety notices about potential hazards associated with handling the device. -
Page 4: Safety
2 Safety LEAB Automotive GmbH DANGER Danger that will lead to severe injury or death Safety instructions with the signal word Danger indicate a hazard which, if not avoided, will result in death or severe injury. Read the safety instructions carefully and follow them to avoid the hazard. -
Page 5: Intended Use
LEAB Automotive GmbH 2 Safety 2.1 Intended Use The charger is designed for permanent installation in vehicles with 12 or 24 V on-board power systems for charging Lead-acid batteries (wet, gel, AGM). It is suitable for charging and trickle charging auxiliary batteries. The device is de- signed for a temperature range of -30 °C ... -
Page 6: Foreseeable Misuse
The negative lead of the charger may contain a temperature sensor, do not shorten or lengthen the lead under any circumstances. Never pinch the leads of the charger to avoid damage. In the event of damage, unplug the charger immediately and contact your dealer or LEAB. LEAB Automotive GmbH Thorshammer 6... -
Page 7: About This Product
LEAB Automotive GmbH 3 About this Product 3 About this Product The Champ charger is a trickle and battery charger for permanent installation in vehicles. This charger can be used to charge all types of Lead-acid batteries (wet, gel, AGM). With the Champ charger, the charging characteristic can be ad- justed to ensure optimum charging of the battery. -
Page 8: Technical Specifications
4 Technical specifications LEAB Automotive GmbH 4 Technical specifications Part no. 0101043982 Part no. 0101043881 Modell Champ Pro 2412 Champ Pro 2412 Battery type Lead acid (wet, gel/AGM)/ Lead acid (wet, gel/AGM) traction Charging characteristics Choice of 4 charging char- Choice of 4 charging char-... - Page 9 LEAB Automotive GmbH 4 Technical specifications Part no. 0101043891 Part no. 0101043999 Modell Champ Pro 2420 Champ Pro 2420 Battery type Lead acid (wet, gel/AGM)/ Lead acid (wet, gel/AGM)/ traction traction Charging characteristics Choice of 4 charging char- Choice of 4 charging char-...
- Page 10 4 Technical specifications LEAB Automotive GmbH Part no. 0101056901 Part no. 0101056005 Modell Champ Pro 2420 Champ Pro 2420 Battery type Lead acid (wet, gel/AGM)/ Lead acid (wet, gel/AGM) traction Charging characteristics Choice of 4 charging char- Choice of 4 charging char-...
- Page 11 LEAB Automotive GmbH 4 Technical specifications Part no. 0101043981 Modell Champ Pro 2420 Battery type Lead acid (wet, gel/AGM) Charging characteristics Choice of 4 charging characteristics Battery capacity 65 Ah ... 200 Ah Temperature sensor AC cable 2.0 m, two-pin earthed plug...
-
Page 12: Package Contents
5 Package Contents LEAB Automotive GmbH 5 Package Contents Name Battery charger User manual Accessories Name Part number Connection cable and sensor (3 m) 1019003005 Connection cable and sensor (4.7 m) 1019003004 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf... -
Page 13: Charging Characteristics
LEAB Automotive GmbH 6 Charging Characteristics 6 Charging Characteristics Battery charging is fully automatic and micro-processor controlled with a 3- stage IU characteristic curve for gentle and optimum charging of the batter- ies. The charging phase of the charger is indicated by the LEDs on the display of the unit ( About this Product [ 7] , Fig. - Page 14 6 Charging Characteristics LEAB Automotive GmbH I phase: Charging with constant current Depending on the battery charge state, the battery is charged with maximum charging current to store as much energy as possible in the battery. After reaching the set main charging voltage, the charger switches to the next char- ging phase (U ).
-
Page 15: Assembly
LEAB Automotive GmbH 7 Assembly Charging characteristic: POWER SUPPLY Champ Pro chargers In the “Power Supply” setting can also be used without the battery connected to supply DC consumers. This setting can be used, for example, when replacing the battery in the vehicle to avoid on board com- puter and radio data loss due to the loss of power and having to be repro- grammed. -
Page 16: Installation
8 Installation LEAB Automotive GmbH 8 Installation The charger is designed for permanent installation in vehicles. When installing the charger, note the following: Notice Incorrect installation can damage the device The negative lead of the unit may contain a temperature sensor. -
Page 17: Operation
LEAB Automotive GmbH 9 Operation 9 Operation 9.1 Charging the battery To start the charging operation, proceed as follows: ü The device is installed. ü The battery is connected. 1. Connect the mains plug to a 230 V mains supply. -
Page 18: Temperature Sensor
9 Operation LEAB Automotive GmbH 1. Connect the mains plug to a 230 V/115 V mains supply. ð One of the 4 charging characteristic LEDs lights up orange while the unit is establishing a connection to the battery. There is no voltage output yet. -
Page 19: Maintenance
LEAB Automotive GmbH 12 EU Declaration of Conformity 10 Maintenance Check the device as follows before using it each time: – Check the mains cable and mains plug for damage. – Check charging cables and connections for damage. – Check the charger for external damage. -
Page 20: Appendix
13 Appendix LEAB Automotive GmbH 13 Appendix 13.1 Information on outdoor use of the PowerSystem 12/24 V MagCode PowerSystems were originally developed for vehicle interiors. How- ever, in Germany, the BGS, DRK, fire brigade, police and THW now use these systems in addition to the DIN plug as an outdoor socket for charge mainten- ance on their emergency vehicles. -
Page 21: Magcodepowerport Installation Instructions
LEAB Automotive GmbH 13 Appendix 13.2 MagCodePowerPort installation instructions NOTE! An existing car socket can easily be replaced by a MagCode PowerPort, as both have the same diameter. If installing elsewhere, we recommend visiting a specialist workshop. To install the MagCode PowerPort in place of an existing Fig. 5: MagCode... - Page 22 13 Appendix LEAB Automotive GmbH 5. Screw the cables into the terminals. NOTE! Note the polarity of the wires. 6. Screw the housing together. ð The device is assembled. LEAB Automotive GmbH Thorshammer 6 24866 Busdorf...
- Page 23 LEAB Automotive GmbH 13 Appendix LEAB Automotive GmbH Thorshammer 6 24866 Busdorf...
- Page 24 Tel: +49 (0) 4621 9 78 60-0 Fax: +49 (0) 4621 9 78 60-260 info@leab.eu It is prohibited to copy, duplicate, translate or otherwise pass on the content of this guide to third parties without the express written permission of LEAB.
