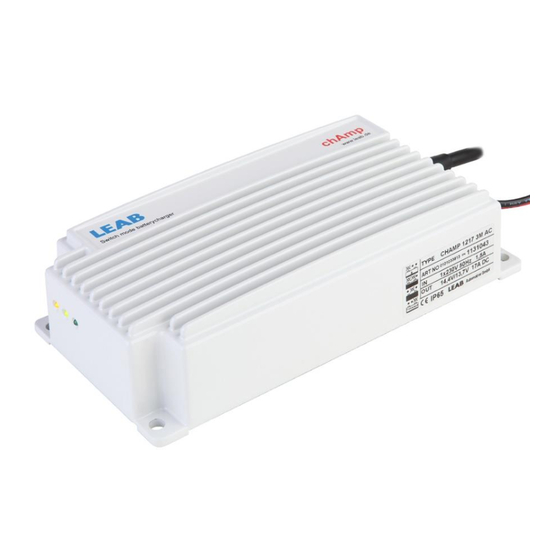

- Page 1 Champ Charger 1207, 1217 Waterproof battery charger with pre-programmed charging characteristic User Manual LEAB Automotive GmbH User manual Thorshammer 6 Version: V1.5 DE-24866 Busdorf Issue date: 09.07.2019...
-
Page 2: Table Of Contents
Installation instructions About this Manual Table of Contents About this Manual ................. 1 General Safety ................2 About the Battery Charger ............. 3 Package Contents ................3 Technical Specifications ..............4 Charging Process ................13 Mounting ..................14 Installation ................... 15 Normal operation ................ -
Page 3: General Safety
This manual supports safe handling of the device. Use the device solely in accordance with its intended use: The LEAB Champ is a trickle and battery charger for permanent installation in vehicles. This charger can be used to charge all types of lead acid batteries. -
Page 4: About The Battery Charger
Installation instructions About the Battery Charger Observe the following safety instructions: Danger from damaged, frozen or deformed batteries: Before charging, make sure that the battery is undamaged and the electrolyte is not frozen. Only charge batteries in well-ventilated rooms and away from ignition sources. -
Page 5: Technical Specifications
Installation instructions Technical Specifications Technical Specifications Model 0101033315 0101033316 0101033318 Model Champ 1207 Champ 1207 Champ 1207 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 0.2 m;... - Page 6 Installation instructions Technical Specifications Model 0101033326 0101033330 0101033331 Model Champ 1207 Champ 1207 Champ 1207 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 2.2 m, two-pin 2.2 m, two-pin...
- Page 7 Installation instructions Technical Specifications Model 0101033332 0101033333 0101033334 Model Champ 1207 Champ 1207 Champ 1207 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 2.2 m, two-pin 2.2 m, two-pin...
- Page 8 Installation instructions Technical Specifications Model 0101033335 0101035001 0101933331 Model Champ 1207 Champ 1207 Champ 1207 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 2.2 m; Neutrik 2.2 m, two-pin...
- Page 9 Installation instructions Technical Specifications Model 0101935001 0101033810 0101033811 Model Champ 1207 Champ 1217 Champ 1217 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 2.2 m, two-pin 1.5 m, two-pin...
- Page 10 Installation instructions Technical Specifications Model 0101033813 0101033814 0101033819 Model Champ 1217 Champ 1217 Champ 1217 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 1.5 m, two-pin 1.5 m, two-pin 0.2 m;...
- Page 11 Installation instructions Technical Specifications Model 0101033820 0101033825 0101033826 Model Champ 1217 Champ 1217 Champ 1217 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 0.2 m; DEFA 1.5 m, two-pin 1.5 m, two-pin earthed plug...
- Page 12 Installation instructions Technical Specifications Model 0101033827 0101033828 0101033829 Model Champ 1217 Champ 1217 Champ 1217 Battery type Lead acid (wet, gel, AGM) Charging characteristics pre-programmed, non changeable Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 1.5 m, two-pin 1.5 m, two-pin 1.5 m, two-pin earthed plug...
- Page 13 Installation instructions Technical Specifications Model 0101033830 0101033831 0101933825 0101933826 Model Champ 1217 Champ 1217 Champ 1217 Champ 1217 Battery type Lead acid (wet, gel, AGM) Charging pre-programmed, non changeable characteristics Battery capacity 55 Ah … 170 Ah Temperature sensor AC cable 1.5 m, two- 1.5 m, two- 1.5 m, two-...
-
Page 14: Charging Process
Installation instructions Charging Process Charging Process Battery charging is fully automatic and micro-processor controlled with a 3-stage IU characteristic curve for gentle and optimum charging of the batteries. I phase: Charging with constant current Depending on the battery charge state, the battery is charged with maximum charging current to store as much energy as possible in the battery. -
Page 15: Mounting
Installation instructions Mounting phase: Trickle charge with reduced voltage In this phase, the charging voltage is reduced in order to maintain the battery charge for an unlimited period and counteract self-discharge. Additionally connected consumers are supplied via the charger in this phase without loading the battery. -
Page 16: Installation
Installation instructions Installation Installation The Champ is a battery charger for permanent installation in vehicles. NOTICE Defects from incorrect installation The negative lead of the device may include a temperature sensor. Never shorten or extend the negative cable with a temperature sensor. -
Page 17: Normal Operation
The battery is charged. Temperature sensor Depending on the model, the LEAB Champ has 2 robust, moulded ring cable lugs on both charging cables for connection to the battery. The black negative lead is followed by the temperature sensor, which is why the lead must not be shortened or extended. -
Page 18: Maintenance
Installation instructions Maintenance 10 Maintenance Check the charger as follows before using it each time: Check the mains cable and mains plug for damage. Check charging cables and connections for damage. Check the charger for external damage. ... -
Page 19: Eu Declaration Of Conformity
Installation instructions EU Declaration of Conformity 12 EU Declaration of Conformity The LEAB Champ models 1207 and 1217 complies with the requirements of the following directives: 2014/30/EU: 2014/35/EU: 2011/65/EU: RoHS Page 18 of 18... - Page 20 LEAB Automotive GmbH Thorshammer 6 DE-24866 Busdorf Germany Tel.: +49(0) 4621 9 78 60-0 Fax: +49(0) 4621 9 78 60-260 Email: anfrage@leab.eu Web: www.leab.eu...
