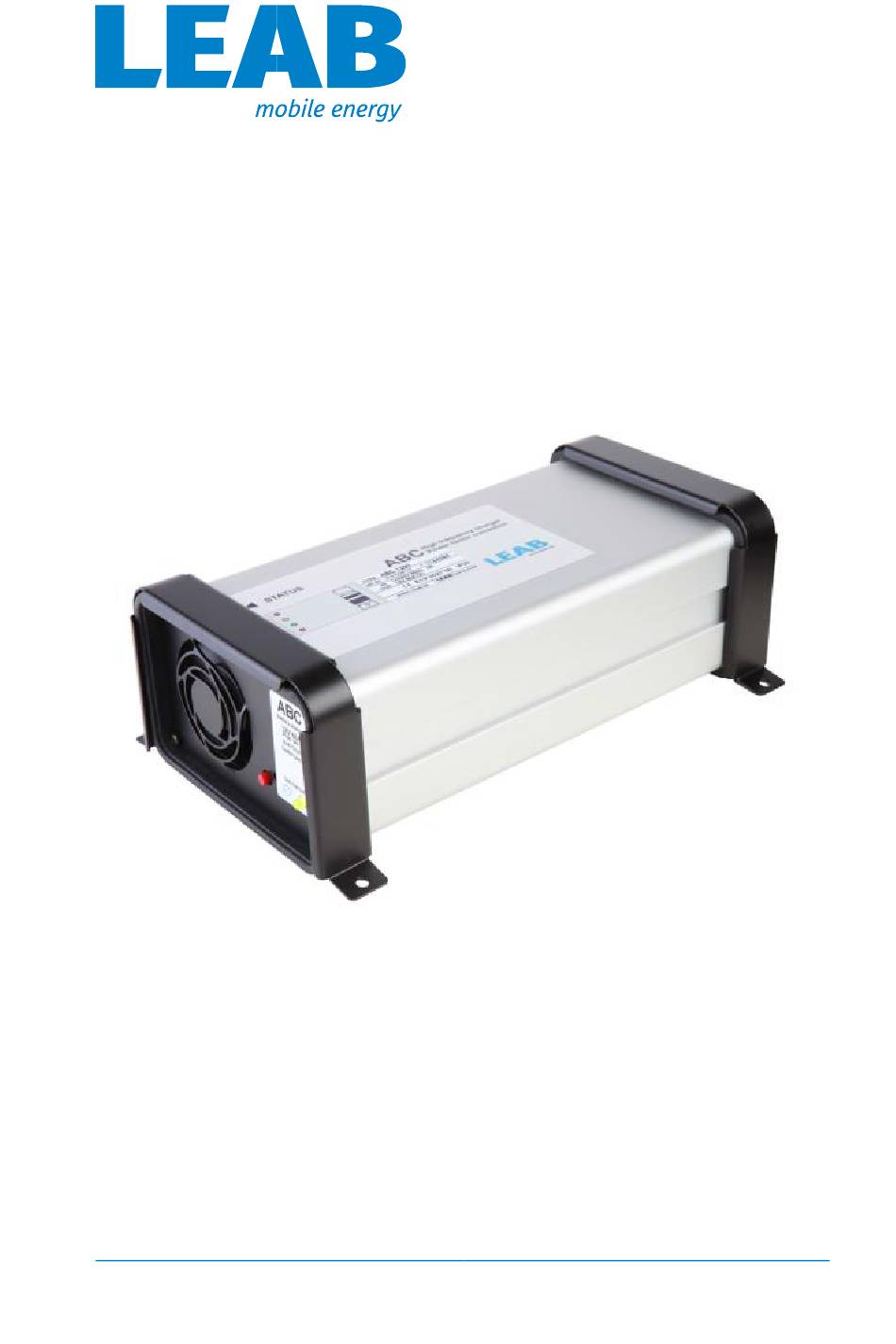

- Page 1 ABC Charger 12100, 1260, 2440, 2450, 2460, 3640, 4830 Microprocessor-controlled battery charger User Manual LEAB Automotive GmbH User Manual Thorshammer 6 Version: V1.5 DE-24866 Busdorf Issue date: 17.01.2020...
-
Page 2: Table Of Contents
Installation Instructions About this Manual Table of Contents About this Manual .................. 1 General Safety ..................2 About the Battery Charger ..............3 Package Contents ..................3 Technical Specifications ................4 Charging Characteristics................8 Setting Charging Characteristics ............. 9 Mounting ....................9 Installation .................... -
Page 3: General Safety
This manual supports safe handling of the device. Use the device solely in accordance with its intended use: The ABC charger from LEAB has been developed for permanent installation in vehicles for charging lead acid batteries. Thanks to their compact design, high... -
Page 4: About The Battery Charger
Installation Instructions About the Battery Charger About the Battery Charger Number Details Reset button Potentiometer for characteristic curve selection LED (status display) AC cable DC cable CBL* connection Connecting the sensor cable (CTS/TS)* Connecting the remote display* * Only two connections per device possible (see technical data) Package Contents... -
Page 5: Technical Specifications
Installation Instructions Technical Specifications Technical Specifications Model ABC 12100 ABC 12100 ABC 1260 Part number 0101036178 0101036179 0101036170 Battery Battery type Lead acid (wet, gel, AGM) Charging characteristics 15 optional characteristics (see characteristics sheet) rec. battery capacity 200 Ah… 200 Ah…... - Page 6 Installation Instructions Technical Specifications Model ABC 12100 ABC 12100 ABC 1260 Part number 0101036178 0101036179 0101036170 Remote display On/off switch Model ABC 2440 ABC 2450 ABC 2460 Part number 0101036040 0101036050 0101036060 Battery Battery type Lead acid (wet, gel, AGM)
- Page 7 Installation Instructions Technical Specifications Model ABC 2440 ABC 2450 ABC 2460 Part number 0101036040 0101036050 0101036060 DC cable 2 x 2 m, 2 x 2 m, 2 x 2 m, 10 mm² 10 mm² 10 mm² CTS/TS Remote display On/off switch Model ABC 2460 ABC 3640...
- Page 8 Installation Instructions Technical Specifications Model ABC 2460 ABC 3640 ABC 4830 Part number 0101036074 0101036340 0101036431 Weight (without cable) 2.6 kg Connections AC cable 1.5 m, 1 mm² 1.5 m, 1 mm² 1.5 m, 1 mm² Mains plug Two-pin Two-pin Two-pin earthed plug earthed plug...
-
Page 9: Charging Characteristics
Installation Instructions Charging Characteristics Model ABC 4830 ABC 4830 Part number 0101036437 0101036430 Dimension, housing (L x W x H) 265 mm x 135 mm x 85 mm Weight (without cable) 2.6 kg Connections AC cable 1.5 m, 1 mm² 1.5 m, 1 mm²... -
Page 10: Setting Charging Characteristics
Installation Instructions Setting Charging Characteristics Setting Charging Characteristics NOTICE Battery defect due to incorrect charging To protect the battery from damage due to incorrect charging, set a suitable charging characteristic before installation. Follow the battery manufacturer's instructions. To set a charging characteristic, perform the following steps: Turn the potentiometer to the desired position (see characteristics sheet). -
Page 11: Installation
Warning: Disconnect the negative cable first. 2. Secure the positive cable of the device as close as possible to the battery with a suitable fuse. ABC 1260, ABC 2440, ABC 12100 ABC 3640 ABC 4830 Model ABC 2450, ABC 2460... - Page 12 Installation Instructions Installation Connect Remote Display (Optional) The remote display shows the charging status of the battery with an LED. To connect the remote display, perform the following steps: Plug the connecting cable for the remote display into the connector for the remote display.
-
Page 13: Normal Operation
Installation Instructions Normal Operation 10 Normal Operation Switching on the Device To switch on the device, perform the following steps: Connect the mains plug to a 230-V mains supply. The device is switched on. After establishing the mains connection, the LED flashes red for 2 seconds (device test). -
Page 14: Led Display On The Charger
Installation Instructions LED Display on the Charger 11 LED Display on the Charger Status Description Measure Steady Battery is charging. The light charger is in the main orange charging phase. Steady Battery is fully charged, Charger can be switched off and the light charger is in trickle charge battery can be used. -
Page 15: Maintenance
Take it to a recycling point or send it to your point of sale. 14 EU Declaration of Conformity The LEAB ABC with the models 12100, 1260, 2440, 2450, 2460, 3640 and 4830 complies with the requirements of the following... - Page 16 LEAB Automotive GmbH Thorshammer 6 DE-24866 Busdorf Germany Tel.: +49(0) 4621 9 78 60-0 Fax: +49(0) 4621 9 78 60-260 Email: inquiry@leab.eu Web: www.leab.eu...
