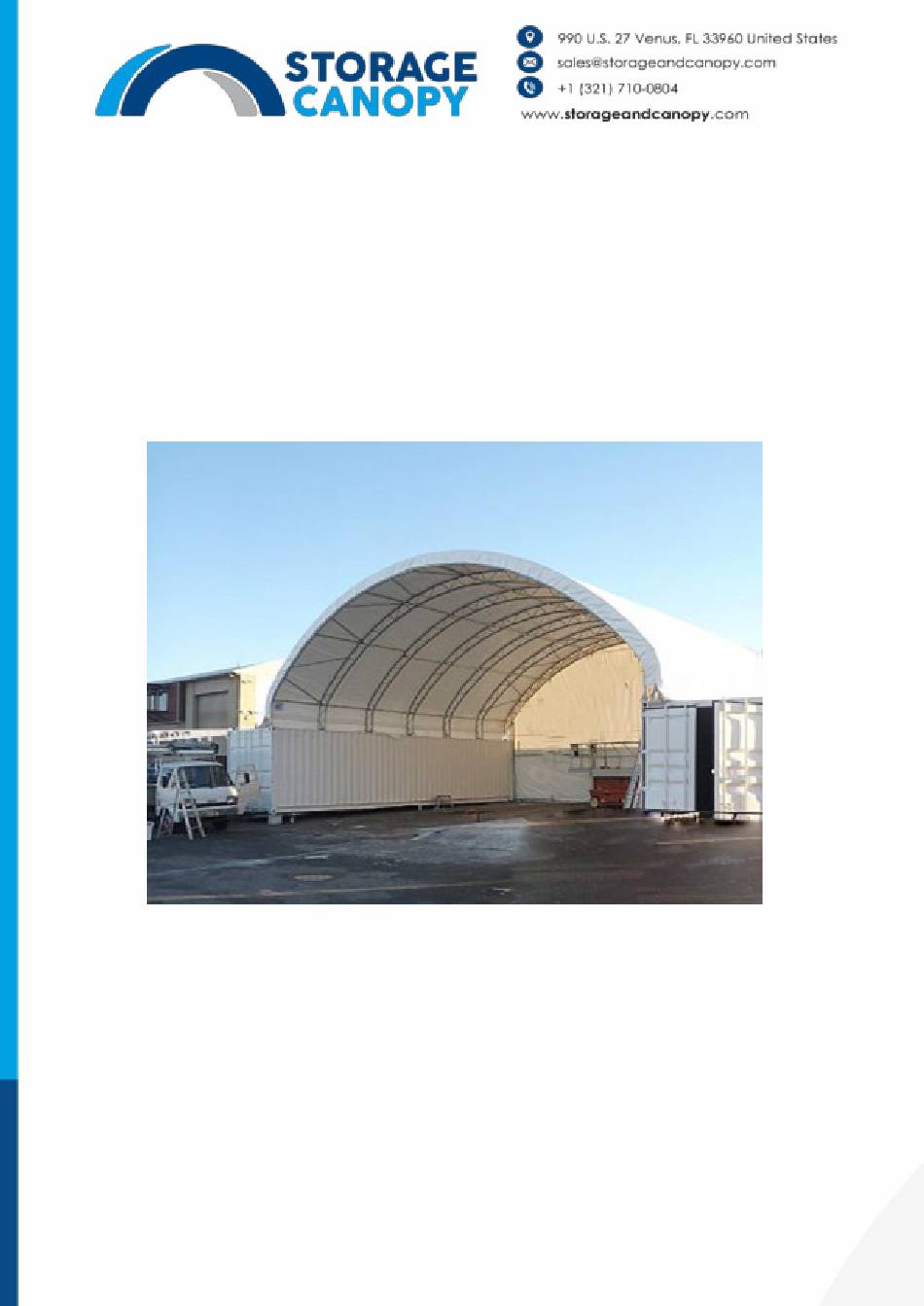

- Page 1 SHELTER ASSEMBLY MANUAL Model # C604015S W18x L12x H4.5m...
- Page 2 C604015S Parts list Part Code Description Top Bent Tube Side Bent Tube on the top Side Bent Tube on the bottom Lower Bent Tube Purlin Top Steel wire Clips Left Base Plate Left Base Plate in the middle Right Base Plate...
-
Page 3: Specification
SPECIFICATION Length: 18m Width: 12m Height: 4.5m IMPORTANT -----READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list. -
Page 4: Installation Process
EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A—BASE INSTALLATION Please refer to the diagram (Figure 1) to place the base plates. UNIT: mm Figure 1 1. - Page 5 Size: L18 x W12 x H4.5m Figure 2: B— FRAME INSTALLATION...
- Page 6 Figure 3 Figure 4...
- Page 7 Figure 5 D—INSTRUCTION THE ROOF COVER Figure 6...
- Page 8 Figure 7...
- Page 9 NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air. NOTE: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDER ANY CIRCUMSTANCES until the final assembly and tightening has been completed.
