PSE-McBasic
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSE-McBasic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IMC Networks PSE-McBasic

Summary of Contents for IMC Networks PSE-McBasic

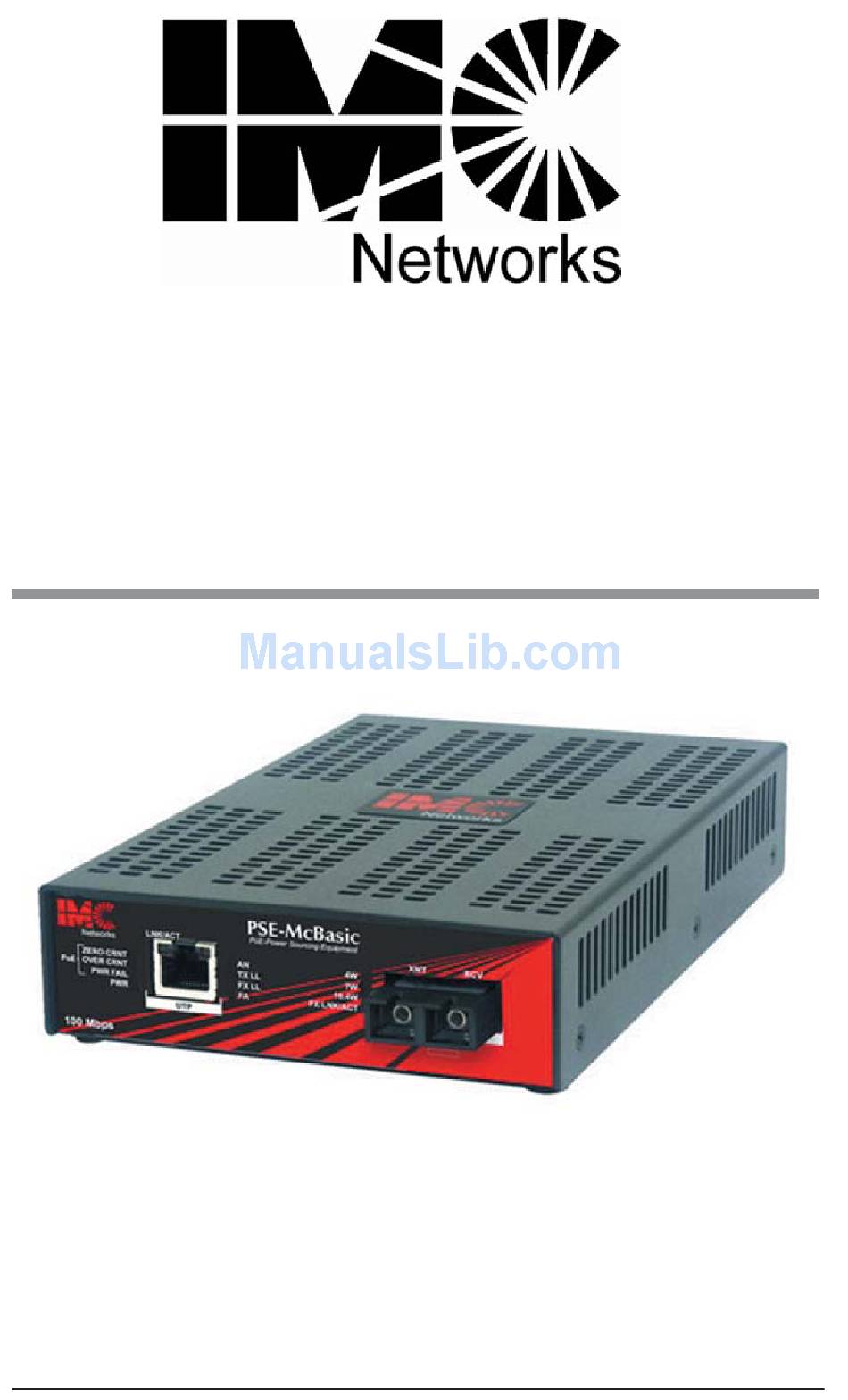

  • Page 1 PSE-McBasic Operation Manual...
  • Page 2 Notes:...

  • Page 3: Table Of Contents

    Table of Contents About the PSE-McBasic ......1 About Power over Ethernet and PSE ....1 About the LED Indicators .

  • Page 4: About The Pse-Mcbasic

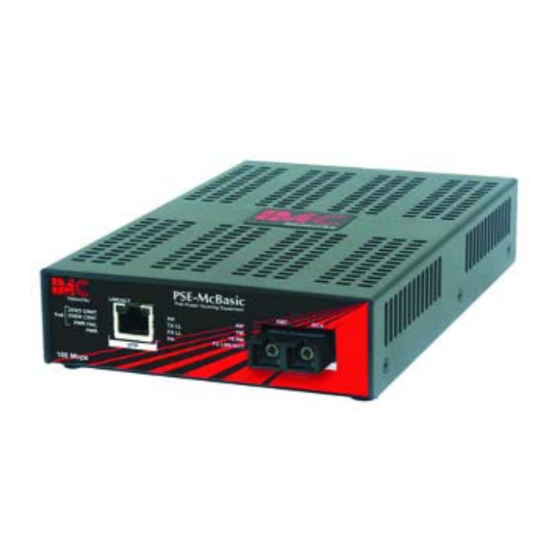

    Each PSE-McBasic includes one RJ-45 connector for the twisted pair port and ST or SC connectors for the fiber port. The PSE-McBasic is 1U high and includes diagnostic LEDs as well as a universal (100/240 VAC) power sup- ply.

  • Page 5: About The Led Indicators

    ZERO CRNT Glows red when no device is connected to the PSE- McBasic or when the device is NOT a valid PD. The LED is off when the PSE-McBasic detects a valid PD. OVER CRNT Glows red when an overcurrent condition lasts for more than 60 ms after power up and/or when an over tem- perature condition occurs.

  • Page 6: Installing The Pse-Mcbasic

    When working with units whose features cannot be disabled, both twisted pair and fiber cables must be connected before the link LEDs will light. To test a PSE-McBasic by itself, first verify that an appropriate fiber patch cable is being used. Then, follow these steps: Step 1: Connect the PSE-McBasic to the twisted pair device with a twisted pair cable.

  • Page 7: Configuring The Pse-Mcbasic

    Configuring the PSE-McBasic The PSE-McBasic features an 8 DIP switches, set after installation. Access these through a cut-out in the bot- tom of the unit. After configuring the DIP switches, power cycle the PSE McBasic for the changes to take effect.
  • Page 8 When a fault occurs on the fiber segment of a conversion, FX LinkLoss detects the fault and passes this information to the twisted pair segment. If a PSE-McBasic is not receiving a fiber link, FX LinkLoss disables the transmitter on the PSE-McBasic 's twisted pair port.
  • Page 9 Feature Fault Location FX LinkLoss Fiber TX LinkLoss Twisted Pair FiberAlert Fiber FiberAlert is not available/applicable on single-strand fiber versions of PSE-McBasic. Disabled LEDs Enable At Twisted Pair Main Site Only Fiber Remote Site Only Fiber Remote Site Only NOTE...

  • Page 10: Auto-Negotiation And Autocross

    100Mbps, Full-Duplex, so will the PSE-McBasic. This will func- tion within the operating parameters of the PSE-McBasic (10/100Mbps, Half or Full Duplex). To make the PSE-McBasic only communicate at one speed or one duplex setting, Auto-Negotiation will need to be turned off. AutoCross Whether using crossover or straight-through CAT5 twisted pair cabling, the PSE-McBasic will support both types of connections.

  • Page 11: Specifications

    Specifications Dimensions 1.45”H x 4.73”W x 7.30”D (3.68 cm x 12.01 cm x 18.54 cm) Weight: 1.8 lbs (.82 kg) Environmental Operating Temperature: 32° to 122° F (0° to +50° C); 0° to 149° F (-20° to +65° C) for PSE-XT-McBasic Storage Temperature: -13°...

  • Page 12: Fiber Optic Cleaning Guidelines

    1) Only use fiber patch cords (or connectors) from a reputable supplier; low-quality components can cause many hard-to-diagnose problems. 2) IMC Networks installs dust caps to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Assure that the fiber is properly terminated, polished and free of any dust or dirt and that the location is as free from dust and dirt as possible.

  • Page 13: Warranty

    This warranty is subject to the limitations set forth below. At its option, IMC Networks will repair or replace at no charge the prod- uct which proves to be defective within such warranty period. This limited...
  • Page 14 TICULAR PURPOSE ARE HEREBY LIMITED TO THE DURATION OF THE EXPRESS WARRANTY STATED ABOVE. Every reasonable effort has been made to ensure that IMC Networks product manuals and promotional materials accurately describe IMC Networks product specifications and capabilities at the time of publication.

  • Page 15: Federal Communications Commission Radio Frequency Interference Statement

    Federal Communication Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environ- ment.
  • Page 16 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. PSE-McBasic is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
