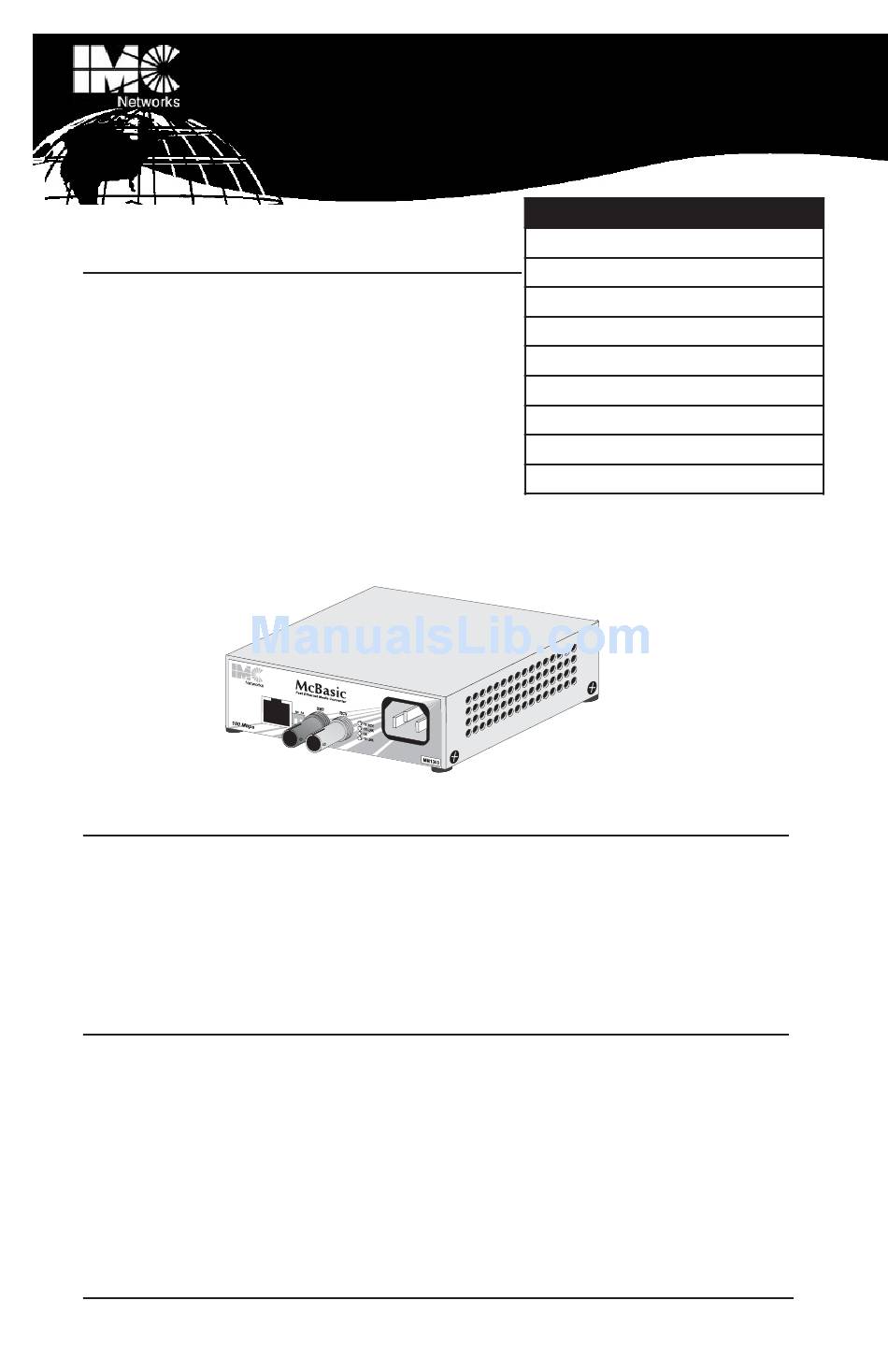

Installation

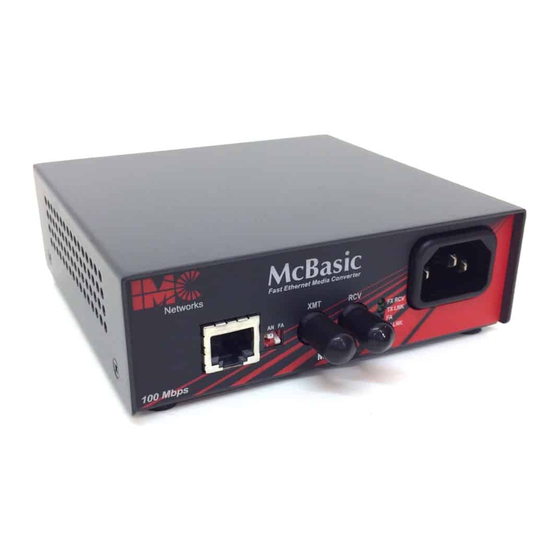

About McBasic TX/FX

M M c c B B a a s s i i c c T T X X / / F F X X ™ is a low-cost, IEEE 802.3 sin-
gle-conversion media converter that converts
between 100Base-TX twisted pair and
100Base-FX multi-mode or single-mode fiber.
It is available with one RJ-45 connector for the
twisted pair port and several types of fiber con-
nectors, including ST, SC, MT and LC, for the
fiber port.
McBasic TX/FX is a 1U high, stand alone unit that includes diagnostic LEDs
for each port and a universal (100/240 VAC) power supply.

Installing McBasic TX/FX

McBasic TX/FX comes ready to install (with the exception of configuring cer-
tain features, if desired – see below).
To install McBasic TX/FX, first make sure that the unit is placed on a suitable
flat surface. Attach the cables between the McBasic TX/FX and each device that
will be interconnected, then plug the unit into a reliable, filtered power source.

Configuring McBasic TX/FX

Before installation, configure McBasic TX/FX for the following features:
• TX LinkLoss
• FX LinkLoss
Once installed, configure McBasic TX/FX for the following features:
• FiberAlert
• Auto-Negotiation
NOTE: The default for all featuers is Disabled
Guide
.
1
McBasic TX/FX
Q U I C K
S T A R T
Introduction
Installation
Configuration
Crossover/Pass-Through
LinkLoss & FiberAlert
Auto-Negotiation
LED Indicators
Tech Support
Warranty/Safety Certifications 7
1
1
1
4
2
5
6
6
