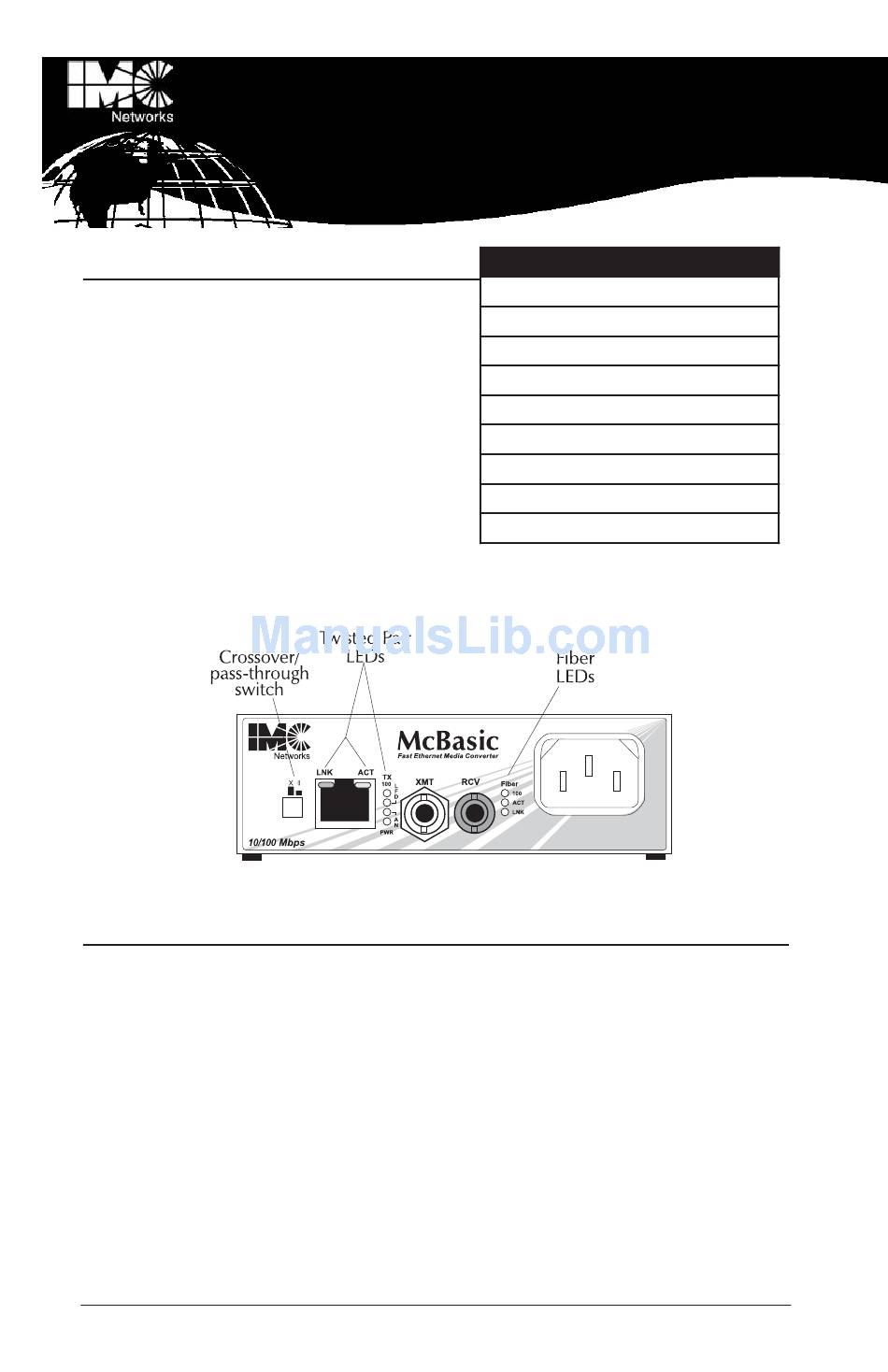

Installation

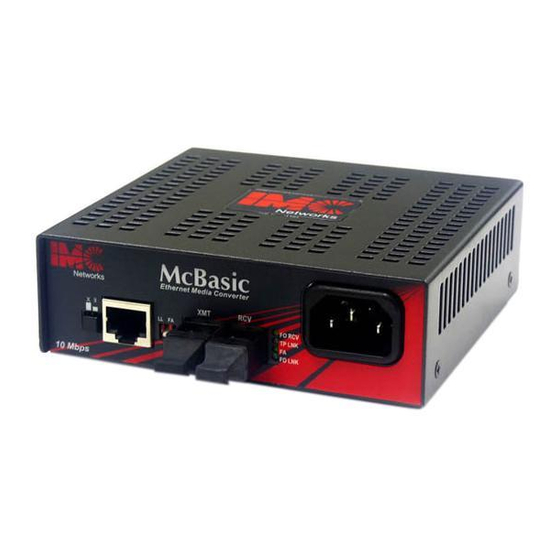

About McBasic 10/100

McBasic 10/100™ is a low-cost,
standalone, IEEE 802.3 single-conversion
media converter which converts between:
• 10Base-T twisted pair and 10Base-
FL multi-mode or single-mode fiber
• 100Base-TX twisted pair and
100Base-SX multi-mode fiber or
100Base-FX single-mode fiber.
McBasic 10/100 is a 1U high, standalone unit that includes diagnostic
LEDs for each port and an internal, universal (100/240 VAC) power supply.

Installing McBasic 10/100

McBasic 10/100 comes ready to install. The only adjustments that may
need to be made after installation are:
• Configuring the unit for its mode of operation and other features.
• Setting the twisted pair port for a crossover workstation or
pass-through connection.
To install McBasic 10/100, first make sure the unit is placed on a suit-
able flat surface, leaving some space at the back of the unit. Attach the
cables between the McBasic 10/100 and each device that will be inter-
connected, then plug the unit into a reliable, filtered power source.
NOTE: All network cables must be connected for link LEDs to glow.
Guide
Installation
Configuration
Crossover/Pass-Through
LED Indicators
Technical Support
1
McBasic 10/100
Q U I C K
S T A R T
1
2
2
4
5
5
6
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McBasic 10/100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IMC Networks McBasic 10/100

Summary of Contents for IMC Networks McBasic 10/100

  • Page 1 • Setting the twisted pair port for a crossover workstation or pass-through connection. To install McBasic 10/100, first make sure the unit is placed on a suit- able flat surface, leaving some space at the back of the unit. Attach the cables between the McBasic 10/100 and each device that will be inter- connected, then plug the unit into a reliable, filtered power source.
  • Page 2 (factory default is AN/PNP mode). Refer to pages 3-5 for information on Link Fault Detection. McBasic 10/100 cannot be manually set for Half- or Full-Duplex. Duplex is determined by the devices to which McBasic 10/100 is connected.
  • Page 3 R A N S P A R E N C Y Transparency is only available when using Auto-Negotiation mode; it is not available in either of the two Force modes. When McBasic 10/100 is auto- negotiating, Transparency treats the connection between the two end devices as if there were no media converters installed.

  • Page 4: Led Operation

    It applies to both network interfaces and to both data rates. If the link at the other interface to the McBasic 10/100 is also down, there is no out- put. LFD causes the Link Up indicator of the link partner to blink.

  • Page 5: Installation Troubleshooting

    Link LEDs in that conversion will either blink or extinguish. LEDs may react differently depending on the type of end devices in the con- version, whether McBasic 10/100 is in Force 10 or Force 100 mode, where the fault occurs, etc. For questions, please contact Technical support.

  • Page 6: Imc Networks Technical Support

    2) IMC Networks installs dust caps to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connect- ing the fiber cable to the device. Assure that the fiber is properly terminat-...
  • Page 7 WARE, shall be free from defects in materials and workmanship under normal and proper use in accor- dance with IMC Networks' instructions and directions for a period of six (6) years after the original date of purchase. This warranty is subject to the limitations set forth below.
  • Page 8 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McBasic is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
