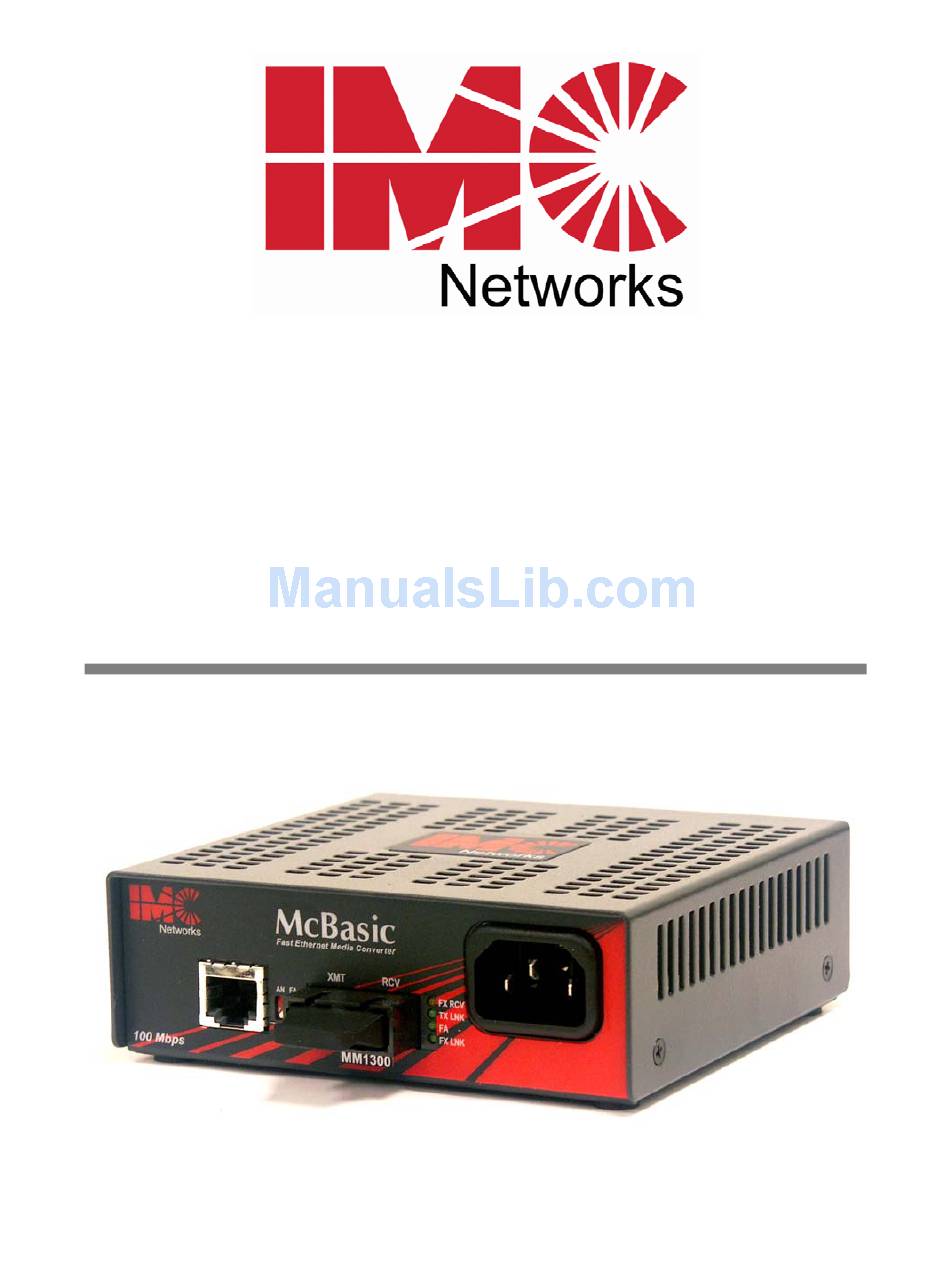

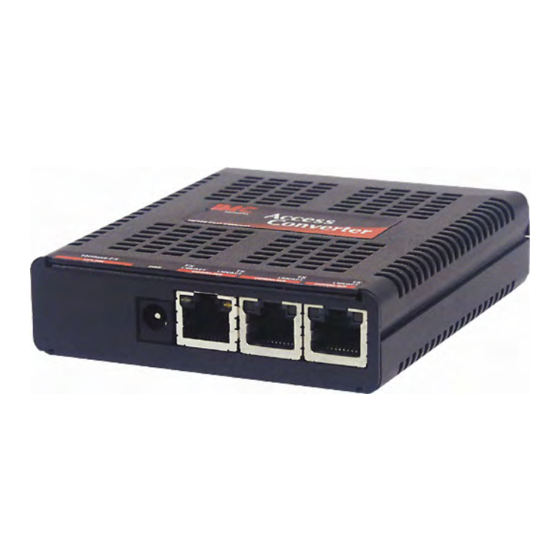

  • Page 1 McBasic TX/FX Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ... ii Warranty... ii About McBasic TX/FX...1 Installing the McBasic TX/FX ...1 Configuring McBasic TX/FX ...2 About FiberAlert and LinkLoss...3 Auto-Negotiation on McBasic TX/FX...5 LED Operation...6 Installation Troubleshooting ...7 IMC Networks Technical Support...8 Specifications ...8...

  • Page 4: About Mcbasic Tx/Fx

    McBasic TX/FX comes ready to install; make all configurations after installation. To install McBasic TX/FX, first make sure that the unit is placed on a suitable flat surface. Attach the cables between the McBasic TX/FX and each device that will be interconnected, then plug the unit into a reliable, filtered power source.

  • Page 5: Configuring Mcbasic Tx/Fx

    AutoNegotiation Twisted Pair Crossover/Pass-Through Connections Whether you are using crossover or straight-through CAT5 twisted pair cabling, McBasic TX/FX will support both types of connections by one of the following methods: AutoCross Switch 4: McBasic TX/FX includes AutoCross, a feature which...

  • Page 6: About Fiberalert And Linkloss

    The appropriate “LINK” LED is lit to indicate this. The IMC Networks media converter also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other device is intact and the link pulses are reaching the other end.
  • Page 7 Enable FiberAlert on only ONE side of a media conversion; enabling it on both sides will keep both transmitters off indefinitely. If you want to enable FiberAlert on BOTH sides of the conversion, you MUST also enable Pulsing FiberAlert on one unit. IMC Networks recommends enabling Pulsing FiberAlert on ONE side (see page 5).

  • Page 8: Auto-Negotiation On Mcbasic Tx/Fx

    McBasic TX/FX includes Auto-Negotiation. When Auto-Negotiation is enabled (default), the media converter negotiates as a 100 Mbps Full-Duplex device; if the device the McBasic TX/FX is connected to can operate at 100 Mbps Full-Duplex, a link will be established. If the twisted pair port on the other device does not have the ability to auto- negotiate, or if a 100 Mbps Half-Duplex connection is desired, Auto-Negotiation on McBasic TX/FX must be disabled.

  • Page 9: Led Operation

    IMC Networks Technical Support at (800) 624-1070 (U.S. and Canada); +32-16-550880 (Europe). LED Operation McBasic TX/FX features four diagnostic LEDs. The diagram below shows the location of the unit’s LEDs. Connect the DC power source. The LED functions are: FX RCV Glows yellow when module is receiving data.

  • Page 10: Installation Troubleshooting

    If this is the case, you may need to add an optical attenuator to your connection. Please visit our Web site at http://www.imcnetworks.com/adocs/fcs.asp specifications, or contact IMC Networks for more information. for fiber...

  • Page 11: Imc Networks Technical Support

    IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com Specifications Environmental: Operating Temperature: 32° - 104° F (0° - 40° C) Storage Temperature: 0° - 160° F (-20° - 70° C)
  • Page 12 Notes...
  • Page 13 Notes...

  • Page 14: Fiber Optic Cleaning Guidelines

    Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps.

  • Page 15: Safety Certifications

    (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
  • Page 16 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McBasic TX/FX is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
