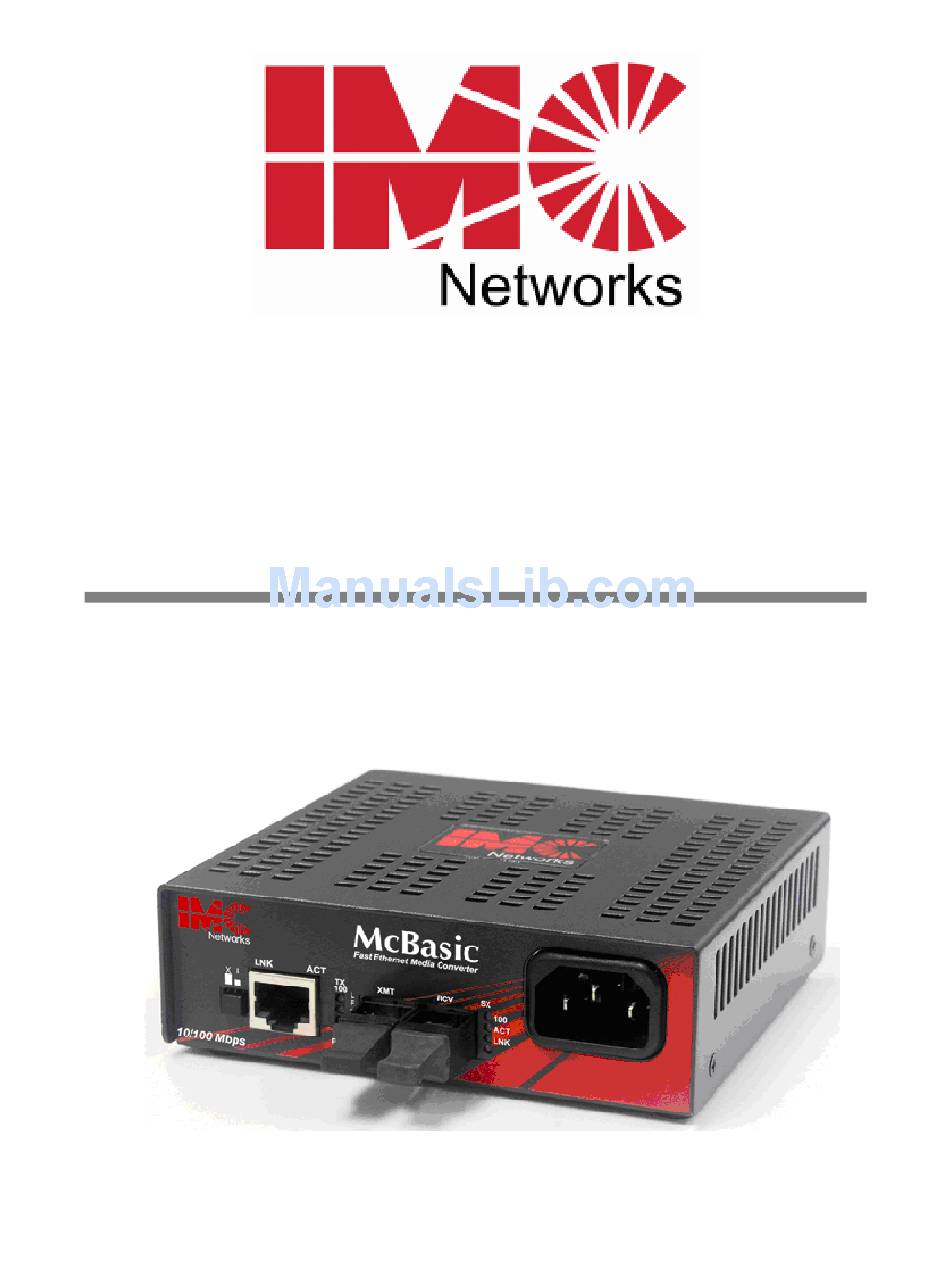

  • Page 1 McBasic 10/100 Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    This warranty is subject to the limitations set forth below. At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the McBasic 10/100 Module..............1 Installing the McBasic 10/100................2 Configuring the McBasic 10/100 ................3 Twisted Pair Crossover/Pass-Through Switch............3 Modes of Operation...................4 Troubleshooting Features ...................5 Link Fault Detection in Force Modes (LFD) ............6 Operation ......................7...

  • Page 4: About The Mcbasic 10/100 Module

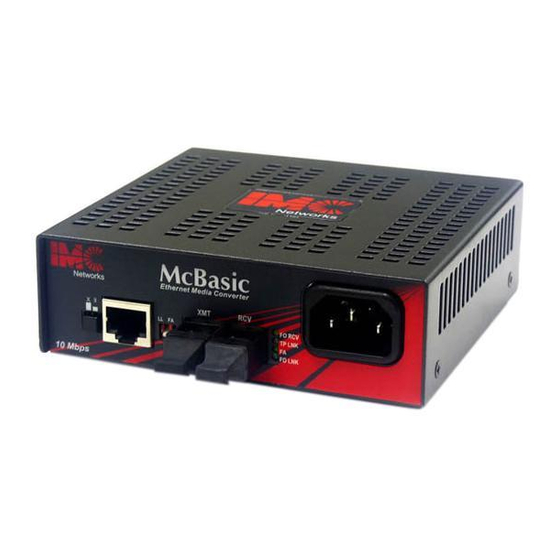

    100Base-TX twisted pair and 100Base-SX multi-mode fiber or 100Base-FX single- mode fiber The McBasic 10/100 is a 1U high, standalone unit that includes diagnostic LEDs for each port and an internal, universal (100/240 VAC) power supply. In many networks, the media converter is typically installed as a pair, between two copper-based end devices.

  • Page 5: Installing The Mcbasic 10/100

    Installing the McBasic 10/100 The McBasic 10/100 comes ready to install. The only adjustments that may need to be made after installation are: • Configuring the mode of operation and other features on the unit. • Setting the twisted pair port for a crossover workstation or pass-through connection.

  • Page 6: Configuring The Mcbasic 10/100

    (S7 is ON) DIP Switches S1-S4 are factory configured—DO NOT CHANGE Twisted Pair Crossover/Pass-Through Switch The McBasic 10/100 has a Crossover/Pass-Through push-button switch, located on the faceplate next to the RJ-45 connector, for setting the twisted pair connection type. Select a Pass-Through connection by pressing the push-button IN. A Crossover connection is selected when the push-button is OUT.

  • Page 7: Modes Of Operation

    Selective Advertising AN (All OFF) NOTE The McBasic 10/100 cannot be set for Half- or Full-Duplex manually. Duplex is determined by the link partners connected to the McBasic 10/100. The McBasic 10/100 media converter is typically installed in pairs and provides compatibility with legacy 10BASE-FL devices, while also providing support for 100Mbps devices.

  • Page 8: Troubleshooting Features

    If a fault occurs on any segment between the two end devices, link LEDs on the end devices will go out. This prevents any failure on the link between the end units from going undetected. As stated, transparency is available when McBasic 10/100 is operating in Auto Negotiation mode: •...

  • Page 9: Link Fault Detection In Force Modes (Lfd)

    10/100 is also down, there is no output. LFD causes the Link Up indicator of the link partner to blink. When the McBasic 10/100 is in one of the FORCE modes, enable LFD by setting S5 to the ON position. Disable LFD by setting S5 to the OFF position.

  • Page 10: Operation

    Operation The McBasic 10/100 features several diagnostic LEDs per port (see illustration above). The LED functions for the McBasic 10/100 are: Port Definition Glows green when a twisted pair link is established. Glows yellow when data is detected on the port.

  • Page 11: Installation Troubleshooting

    Use caution when conducting a loopback test. It is possible to create a network loop if connecting the media converter’s twisted pair port to an active network. IMC Networks recommends connecting the twisted pair cable to a computer when performing this type of...

  • Page 12: Electrostatic Discharge Precautions

    Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component.

  • Page 13: Fiber Optic Cleaning Guidelines

    Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps.

  • Page 14: Imc Networks Technical Support

    +32°F to +122°F (0°C to +50°C) Storage Temperature -4°F to +158°F (-20°C to +70°C) Humidity 5 to 95% (non-condensing) Input Specifications 100-240 ±10% VAC, 50/60Hz, 1-0.5A Fiber Optic Specifications For fiber optic specifications, visit the IMC Networks Web site at http://www.imcnetworks.com/adocs/fcs.asp...

  • Page 15: Safety Certifications

    Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1...
  • Page 16 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McBasic 10/100 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
