McLIM
(RX and TX Modules)
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McLIM TP-TX/FX and is the answer not in the manual?

Questions and answers

Related Manuals for IMC Networks McLIM TP-TX/FX

Summary of Contents for IMC Networks McLIM TP-TX/FX

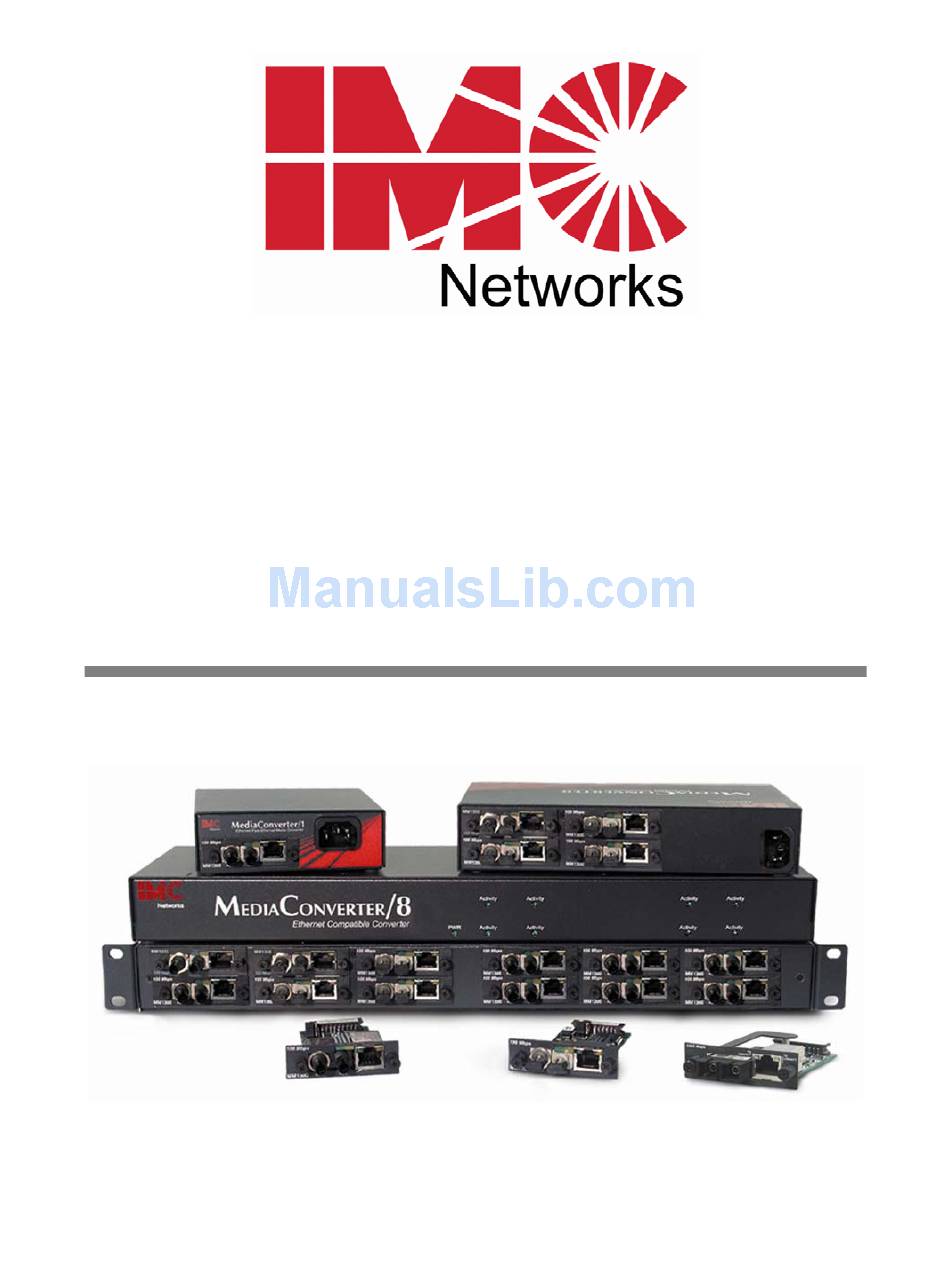

  • Page 1 McLIM (RX and TX Modules) Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ...i Warranty...i About the MediaConverter...1 About the McLIMs (RX/TX Versions) ...1 Configuring Media Conversion Modules...1 Installing Media Conversion Modules ...2 LED Operation...3 IMC Networks Technical Support...5 Specifications ...6 Electrostatic Discharge Precautions...6 Safety Certifications...8...

  • Page 4: About The Mediaconverter

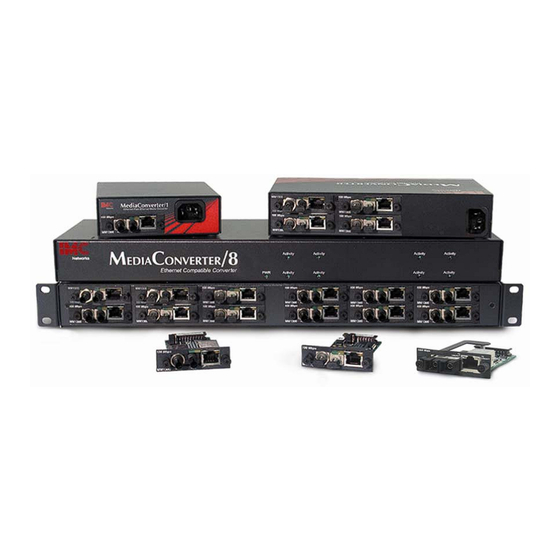

    About the McLIMs (RX/TX Versions) McLIM TP-TX/FX is an Auto Negotiating, switching media converter which offers plug-and-play operation to convert 10 Mbps or 100 Mbps, Half- or Full-Duplex twisted pair to 100Base-FX, Full-Duplex fiber. McLIM TP-TX/FX protects against Broadcast storms, and allows jumbo packets of up to 1916 bytes.

  • Page 5: Installing Media Conversion Modules

    MediaConverter chassis ship from the factory with all but one media conversion module slot covered with “blank” brackets. Be sure to keep unused slots covered for EMI containment. IMC Networks recommends saving any “blanks” removed during installation for future use if configuration requirements change.

  • Page 6: Led Operation

    Each media conversion module features diagnostic LEDs (see diagrams below) that provide information on features and ports. LEDs on McLIM TP-TX/FX The LED functions on McLIM TP-TX/FX are as follows: FX LINK/ACT Glows green when link is established on the FX port; blinks green when activity is detected on the port.
  • Page 7 LEDs on MediaConverter Chassis MediaConverter/1, 4 and 8 include LEDs on the back of the chassis: POWER Glows green when chassis has power. ACTIVITY This LED blinks green when data is being passed on either port of a module that does not include Link/Activity LEDs. This LED is not applicable for modules that include Link/Activity LEDs.

  • Page 8: Imc Networks Technical Support

    IMC Networks Technical Support Phone: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com...

  • Page 9: Specifications

    Specifications Operating Temperature* 32° to 122°F (0° to +50°C); 5% to 90% (non-condensing), 0 to 10,000 ft. altitude Storage Temperature* -13° to +158°F (-25° to +70°C); 5 to 90% (non-condensing) *Some products may support lower operating and storage temperatures. Electrical MediaConverter/1 AC Input Load: 100/240 100-240VAC ±10% , 50/60Hz, 0.1/0.05A 0.3A Maximum Heat Generated: 51 BTU/hour...
  • Page 10 Hold boards by the edges only; do not touch the electronic components or gold connectors. After removal, always place the boards on a grounded, static-free surface, ESD pad or in a proper ESD bag. Do not slide the board over any surface. WARNING! Integrated circuits and fiber optic components are extremely susceptible to electrostatic discharge damage.

  • Page 11: Safety Certifications

    (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
  • Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McLIM is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.

This manual is also suitable for:

Mclim tx/fx
