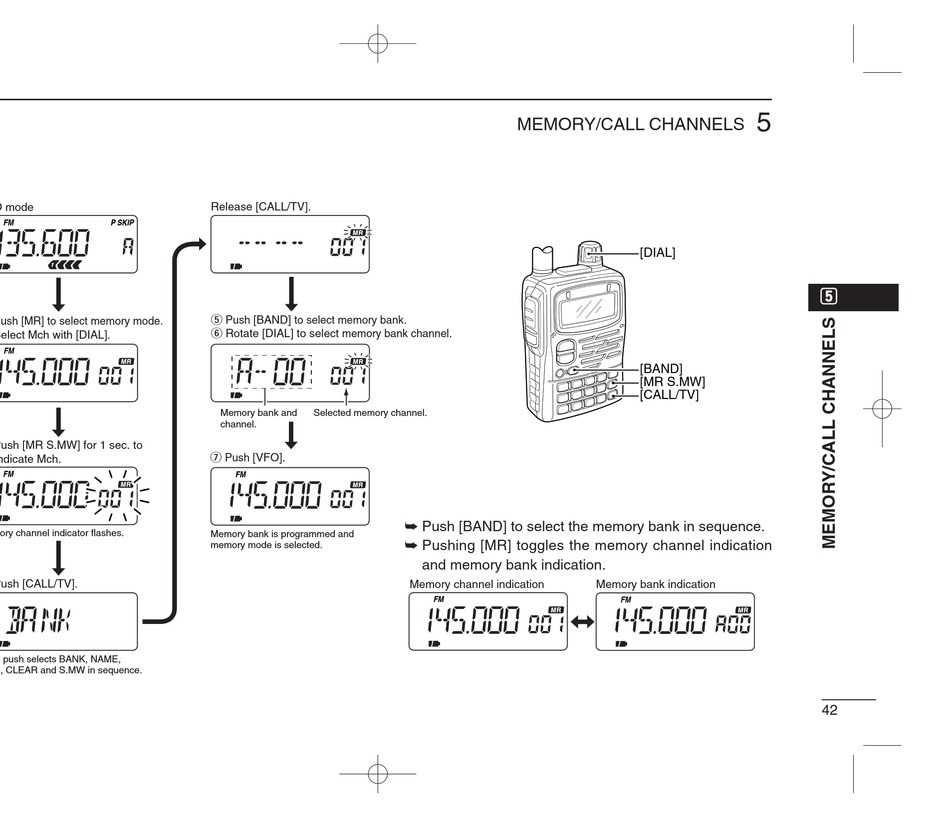

Icom IC-T90A Instruction Manual page 47

VFO mode
FM P SKIP
q Push [MR] to select memory mode.
w Select Mch with [DIAL].
FM
e Push [MR S.MW] for 1 sec. to
indicate Mch.
FM
Memory channel indicator flashes.
r Push [CALL/TV].
Each push selects BANK, NAME,
SKIP, CLEAR and S.MW in sequence.
Release [CALL/TV].
t Push [BAND] to select memory bank.
y Rotate [DIAL] to select memory bank channel.
Memory bank and Selected memory channel.
channel.
u Push [VFO].
FM
Memory bank is programmed and
memory mode is selected.
MEMORY/CALL CHANNELS
➥ Push [BAND] to select the memory bank in sequence.
➥ Pushing [MR] toggles the memory channel indication
and memory bank indication.
Memory channel indication
FM
5
[DIAL]
[BAND]
[MR S.MW]
[CALL/TV]
Memory bank indication
FM
t t
42
