CONNECTION AND MAINTENANCE

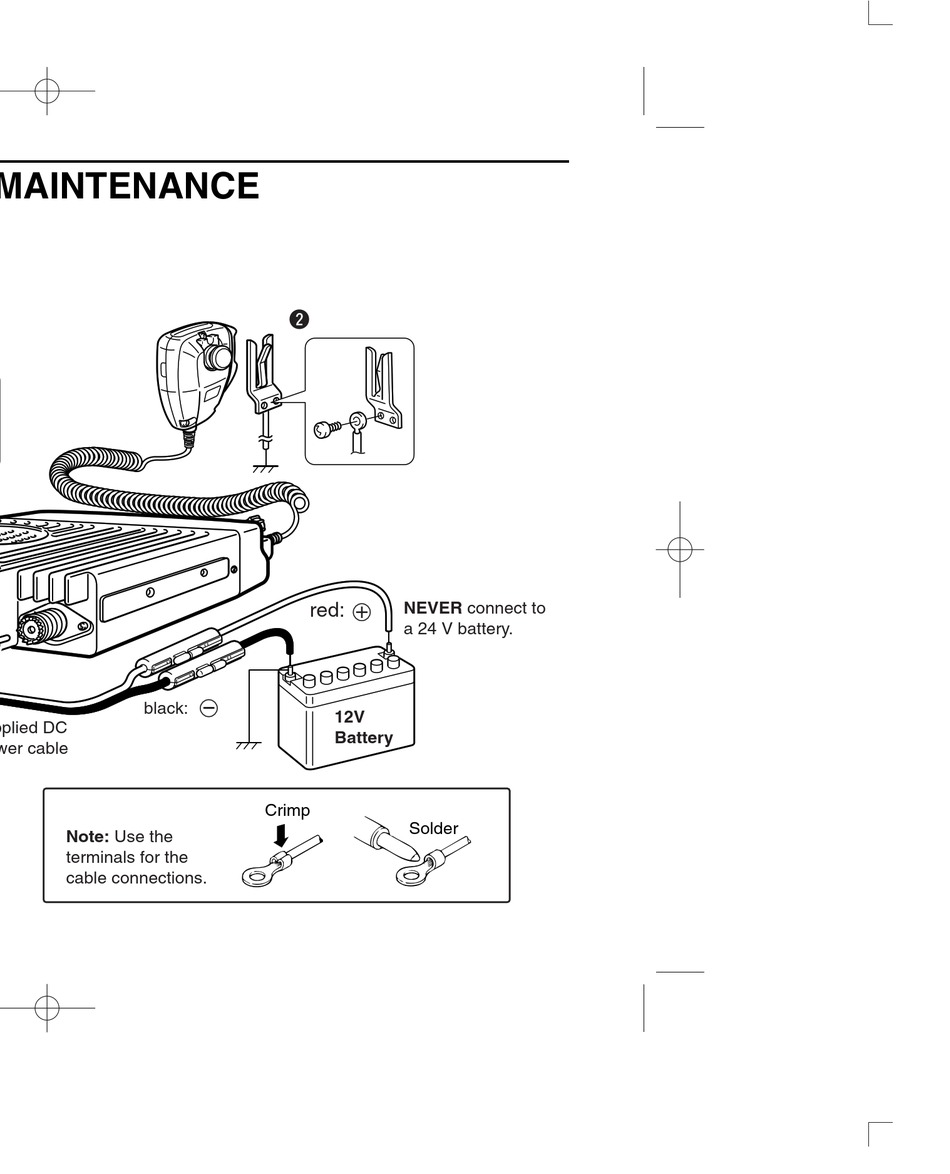

I Rear panel and connection

Optional speaker
t
Optional cable
(OPC-617)
13
q Antenna
(SP-22)
r
e
black:
Supplied DC
power cable
Note: Use the
terminals for the
cable connections.
w
NEVER connect to
red:
+
a 24 V battery.
12V
Battery
Crimp
Solder
