I Optional OPC-617 installation

Install the OPC-617 as shown below.
OPTIONAL CABLE PIN ASSIGNMENT
t r e w q
q
LCD backlit cont. IN
w
AF OUT
e
Det. AF OUT
r
Mod. IN
t
PTT control IN
o i u y

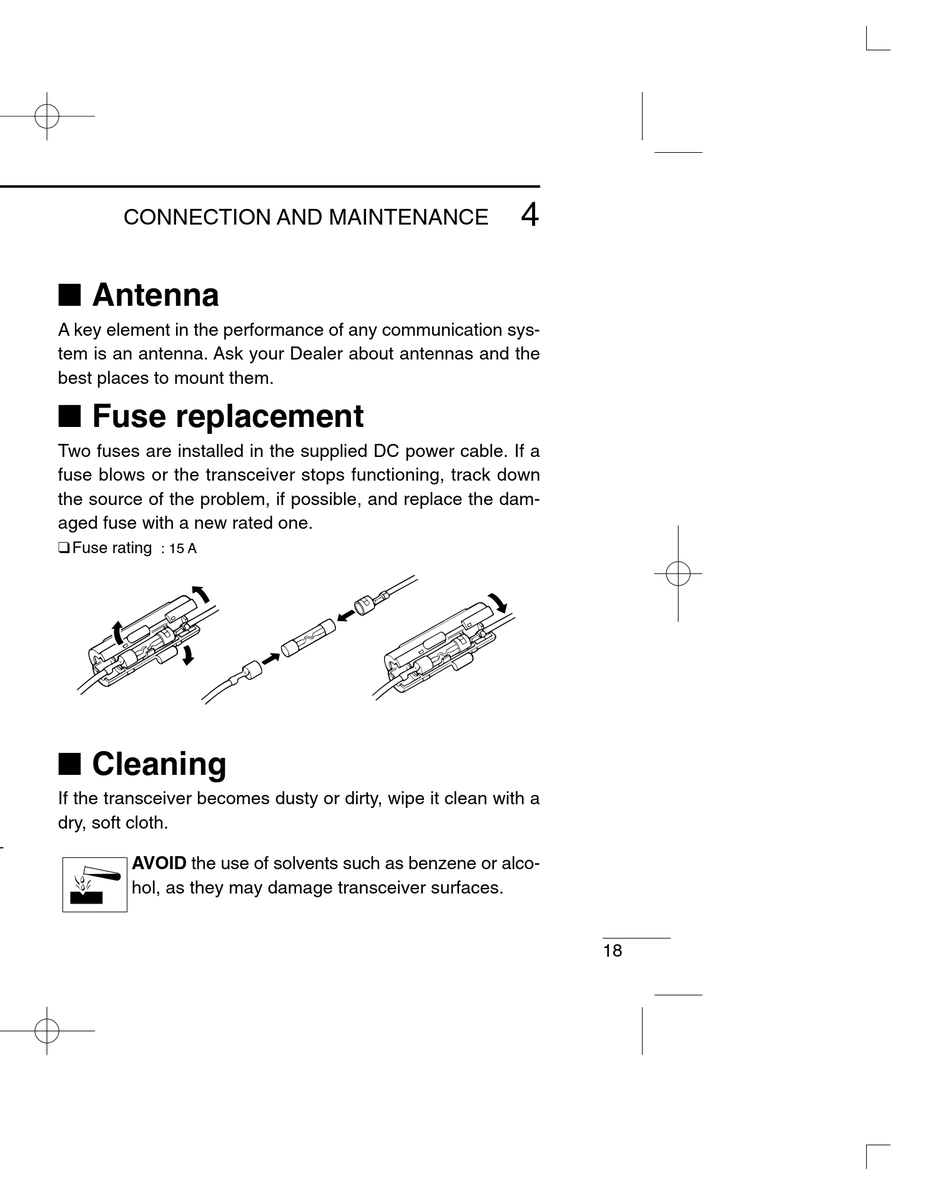

I Antenna

A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
best places to mount them.

I Fuse replacement

Two fuses are installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem, if possible, and replace the dam-
aged fuse with a new rated one.
❑ Fuse rating

I Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
dry, soft cloth.
y
Horn drive cont. OUT
u
AF GND
i
Det. AF GND
o
Mod. GND
CONNECTION AND MAINTENANCE
: 15 A,
AVOID the use of solvents such as benzene or alco-
hol, as they may damage transceiver surfaces.
