I Receiving and transmitting

RECEIVING:
q Push
[POWER] to turn the power ON.
w Push [CH UP] or [CH DN] to select a channel.
e When receiving a call, adjust the audio output level to a
comfortable listening level.
TRANSMITTING:
r Take the microphone off hook.
• 5-tone mute may be released (the 'audible' condition is selected
and " " appears).
• A priority channel may be selected automatically.
t Wait for the channel to become clear.
• The channel is busy when "
y Push the [CALL] key when initiating a call from your side.
• Coded audio may be heard from the transceiver, then "
appears.
• This operation may not be necessary depending on your signal-
ing system. Ask your Dealer.
u While pushing and holding [PTT], speak into the micro-
phone at your normal voice level.
i Release [PTT] to receive.
IMPORTANT:
To maximize the readability of your signal:
(1) Pause briefly after pushing [PTT]
(2) Hold the microphone 2 to 5 cm from your mouth, then
speak into the microphone at a normal voice level.
" appears.

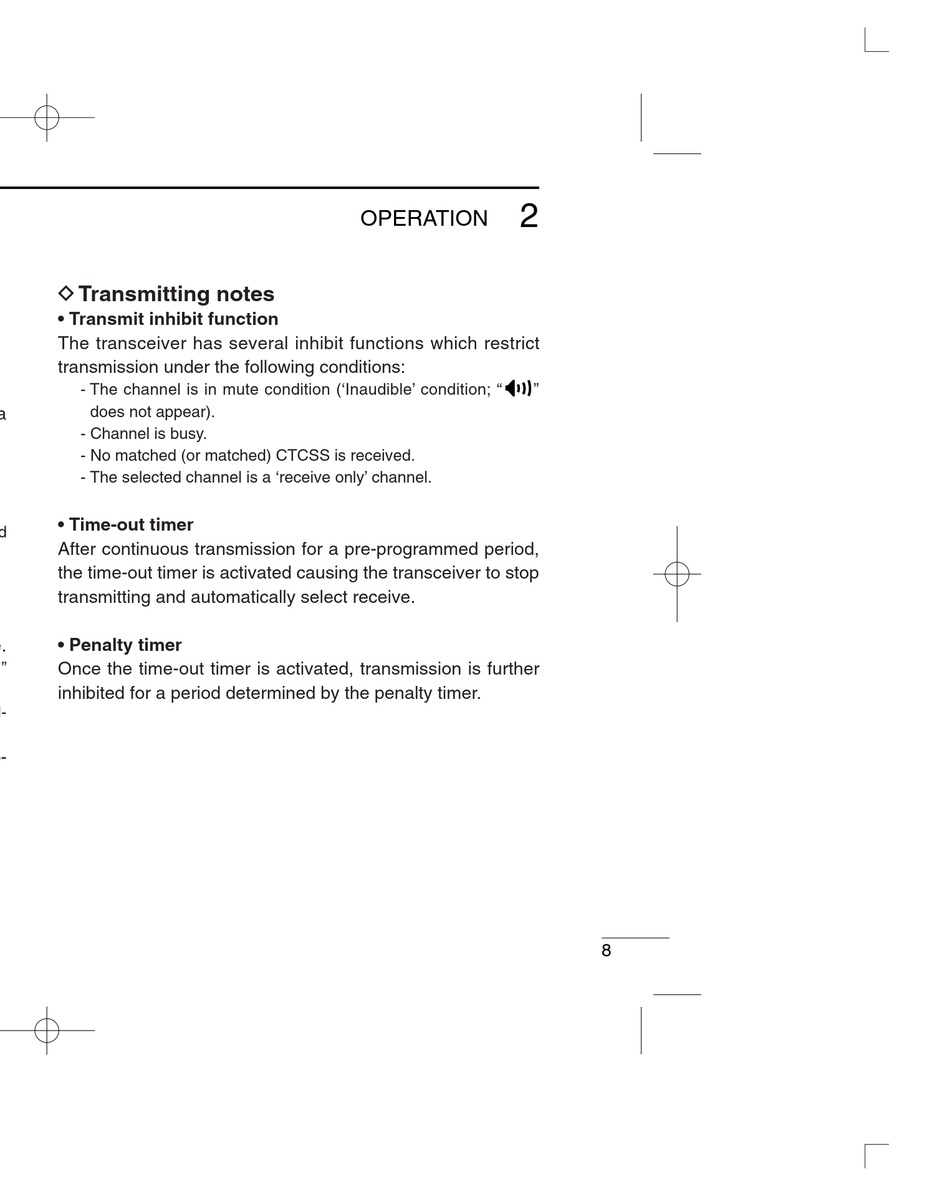

D Transmitting notes

• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmission under the following conditions:
- The channel is in mute condition ('Inaudible' condition; "
does not appear).
- Channel is busy.
- No matched (or matched) CTCSS is received.
- The selected channel is a 'receive only' channel.
• Time-out timer
After continuous transmission for a pre-programmed period,
the time-out timer is activated causing the transceiver to stop
transmitting and automatically select receive.
• Penalty timer
" Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.
