D Tx Code Channel Selection; D Tx Code Number Selection; D Dtmf Transmission; D Scrambler Function - Icom IC-F510 Instruction Manual

2
OPERATION

D Tx code channel selection

If the transceiver has a [
between the operating channel number (or name) and Tx
code channel number (or name). When the Tx code channel
number (or name) is displayed, the [CH UP]/[CH DN] keys
select the Tx code channel.
TO SELECT A TX CHANNEL:
q Push [
] — a Tx code channel appears.
TX CH
w Push [CH UP]/[CH DN] to select the desired Tx code
channel.
e Push [
] to transmit the selected Tx code.
CALL
r Push [
] again to return to the channel display.
TX CH

D Tx code number selection

If the transceiver has a [
changed within the allowable digits.
TO SELECT A TX CODE:
q Push [
] — a Tx code number appears and an allow-
CODE
able digit blinks.
w Push [CH UP]/[CH DN] to select the desired number at
the blinking digit.
e Push [
] to enter the selected number.
CODE
r Repeat steps w and e to input all allowed digits.
t Push [
] to transmit the selected Tx code.
CALL
9
] key, display can be toggled
TX CH
] key, Tx code contents can be
CODE

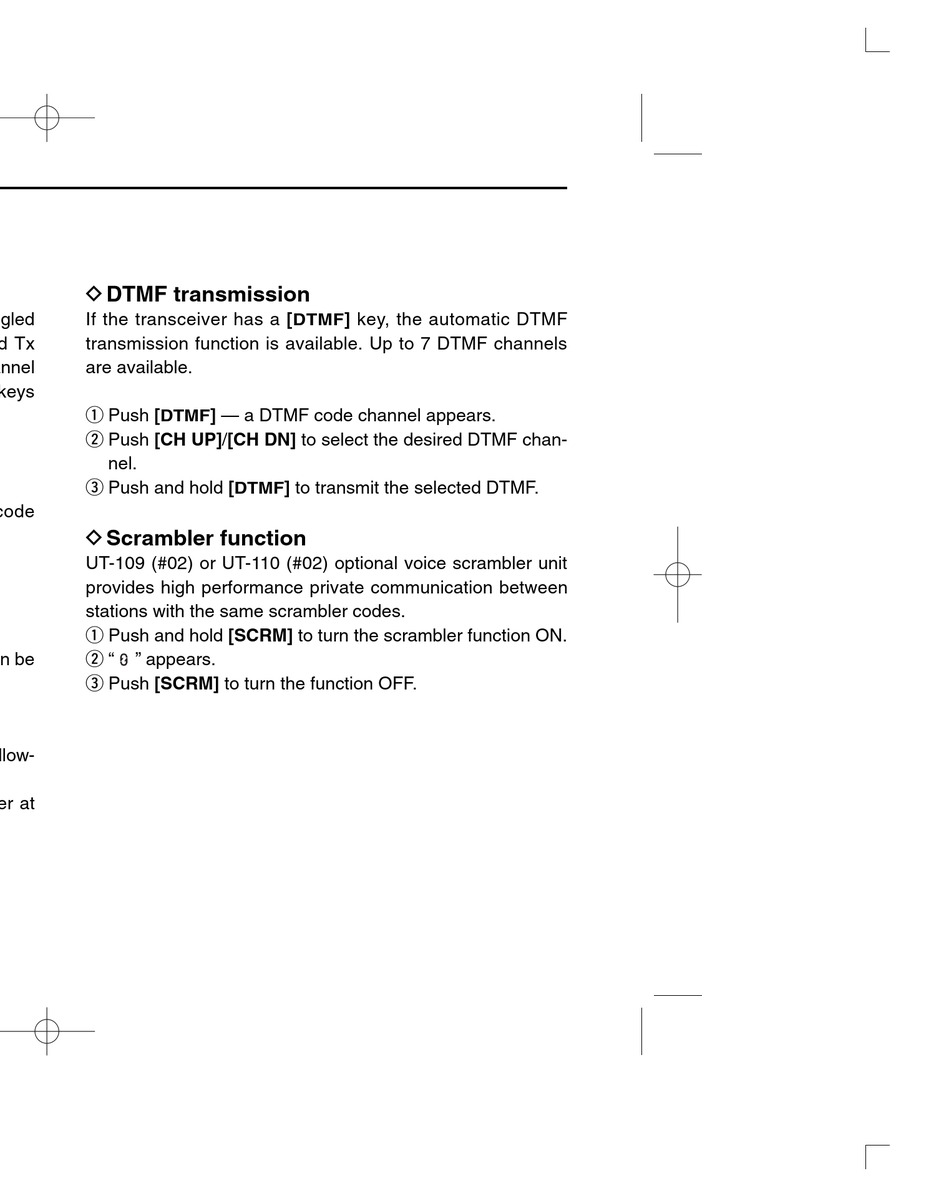

D DTMF transmission

If the transceiver has a [
DTMF
transmission function is available. Up to 7 DTMF channels
are available.
q Push [
] — a DTMF code channel appears.
DTMF
w Push [CH UP]/[CH DN] to select the desired DTMF chan-
nel.
e Push and hold [
] to transmit the selected DTMF.
DTMF

D Scrambler function

UT-109 (#02) or UT-110 (#02) optional voice scrambler unit
provides high performance private communication between
stations with the same scrambler codes.
q Push and hold [SCRM] to turn the scrambler function ON.
w "
" appears.
e Push [SCRM] to turn the function OFF.
] key, the automatic DTMF
