D Location
Select a location which can support the weight of the trans-
ceiver and does not interfere with driving. We recommend the
locations shown in the diagram below.
NEVER place the transceiver or remote controller where nor-
mal operation of the vehicle may be hindered or where it
could cause bodily injury.
NEVER place the transceiver or remote controller where air
bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where hot
or cold air blows directly onto it.
AVOID placing the transceiver or remote controller in direct
sunlight.
@ Q @@ QQ @ Q @ Q
Controller
Main unit
Main unit
Main unit
QUICK REFERENCE GUIDE

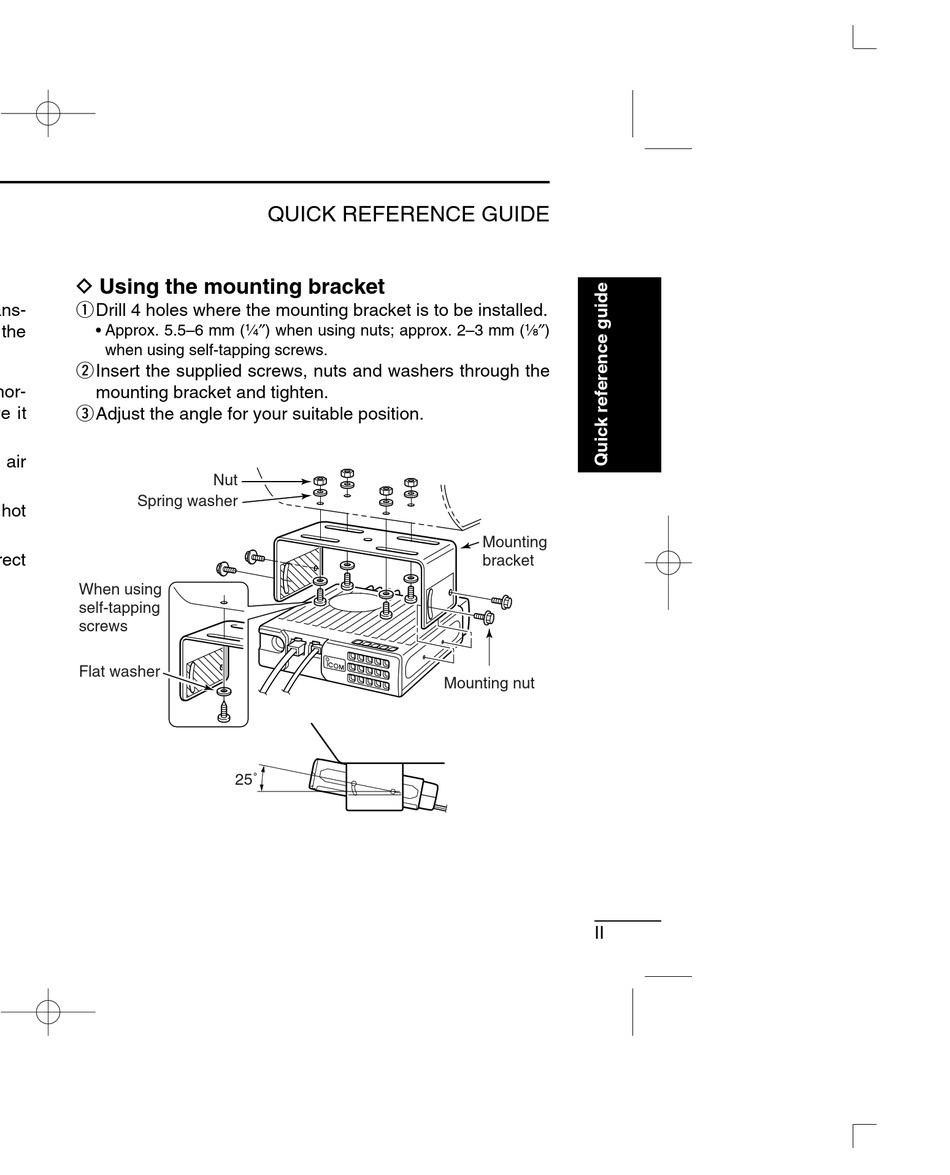

D Using the mounting bracket
qDrill 4 holes where the mounting bracket is to be installed.
") when using nuts; approx. 2–3 mm (
1
• Approx. 5.5–6 mm ( ⁄
4
when using self-tapping screws.
wInsert the supplied screws, nuts and washers through the
mounting bracket and tighten.
eAdjust the angle for your suitable position.
Nut
Spring washer
When using
self-tapping
screws
Flat washer
25˚
")
1
⁄
8
Mounting
bracket
Mounting nut
II
