t AM INDICATOR (p. 64)
Appears when AM mode is selected.
y FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• Frequency decimal point blinks while scanning. (p. 41)
• "d" appears in place of the 1st digit while the DTMF memory
function is in use. (p. 48)
u MEMORY CHANNEL NUMBER INDICATORS
➥ Shows the selected memory channel number. (p. 29)
➥ Shows the selected bank initial. (p. 35)
➥ "C" appears when the call channel is selected. (p. 38)
➥ "L" appears when the lock function is activated. (p. 15)
i SKIP INDICATOR (p. 44)
Appears when the displayed memory channel is specified
as a skip channel.
o MEMORY INDICATOR (pgs. 12, 29)
Appears when memory mode is selected.
!0 S/RF INDICATORS
➥ Shows the relative signal strength while receiving sig-
nals. (p. 16)
➥ Shows the output power level while transmitting. (p. 20)
!1 OUTPUT POWER INDICATORS
"LOW" appears when low output power; "MID" appears
when middle output power is selected.
No indicator appears when high output power is selected.
PANEL DESCRIPTION

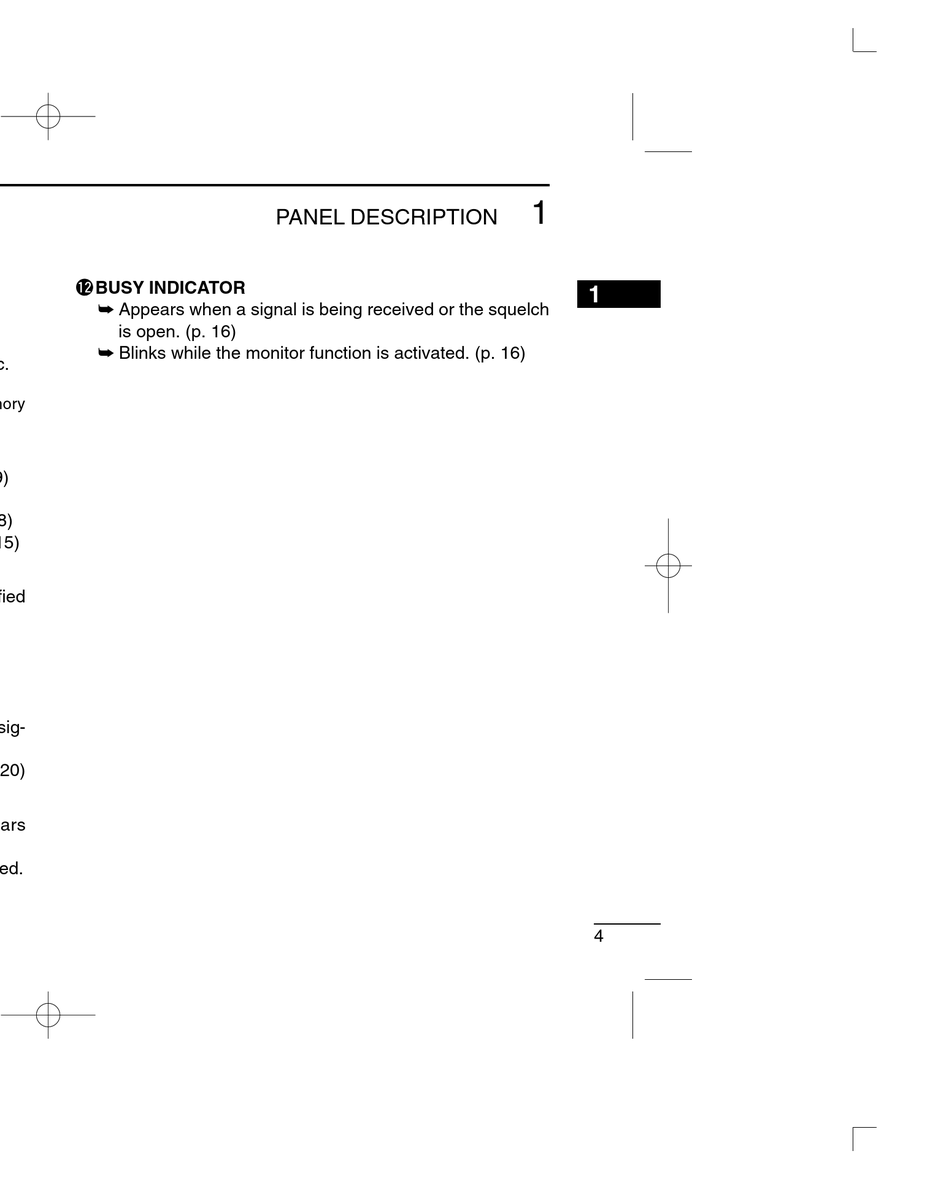

!2 BUSY INDICATOR
➥ Appears when a signal is being received or the squelch
is open. (p. 16)
➥ Blinks while the monitor function is activated. (p. 16)
