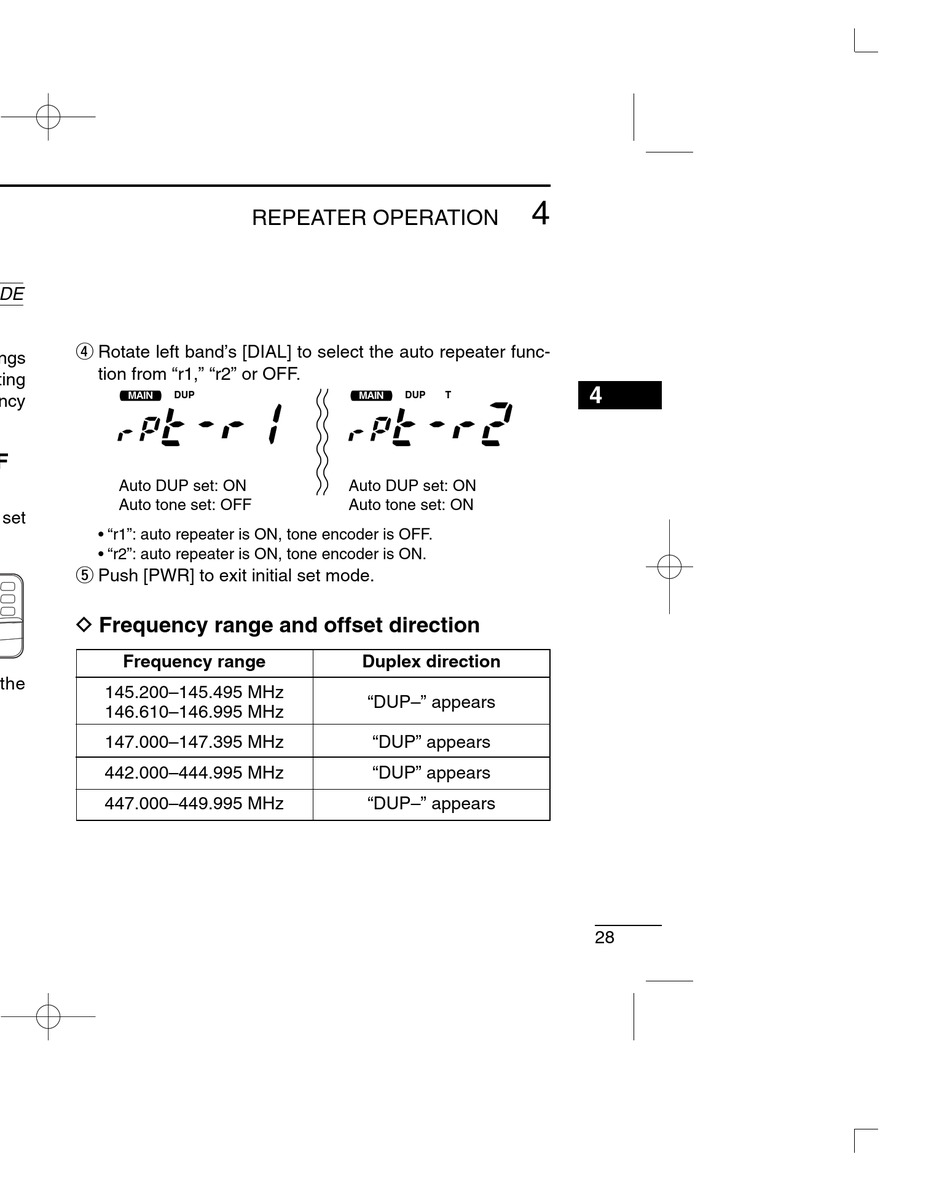

I Auto Repeater (Usa Version Only) - Icom IC-2720H Instruction Manual

I Auto repeater
(U.S.A. version only)
The USA version automatically activates the repeater settings
(DUP– or DUP+ and tone encoder ON/OFF)
frequency falls within the general repeater output frequency
range and deactivate them when outside of the range.
D Setting the auto repeater function ON/OFF
q Push [PWR] to turn power OFF.
w While pushing [SET•
], turn power ON to enter initial set
mode.
While pushing [SET• ]
push [PWR] to enter initial
set mode
e Push [SET•
] or [LOW•PRIO] several times until the
"rPt" display appears as shown above right.
INITIAL SET MODE
USING
when the operating
REPEATER OPERATION
r Rotate left band's [DIAL] to select the auto repeater func-
tion from "r1," "r2" or OFF.
DUP
MAIN
T X
M
Auto DUP set: ON
Auto tone set: OFF
• "r1": auto repeater is ON, tone encoder is OFF.
• "r2": auto repeater is ON, tone encoder is ON.
t Push [PWR] to exit initial set mode.
D Frequency range and offset direction
Frequency range
145.200–145.495 MHz
146.610–146.995 MHz
147.000–147.395 MHz
442.000–444.995 MHz
447.000–449.995 MHz
4
DUP T
MAIN
T X
M
Auto DUP set: ON
Auto tone set: ON
Duplex direction
"DUP–" appears
"DUP" appears
"DUP" appears
"DUP–" appears
4
28
