QUICK REFERENCE GUIDE

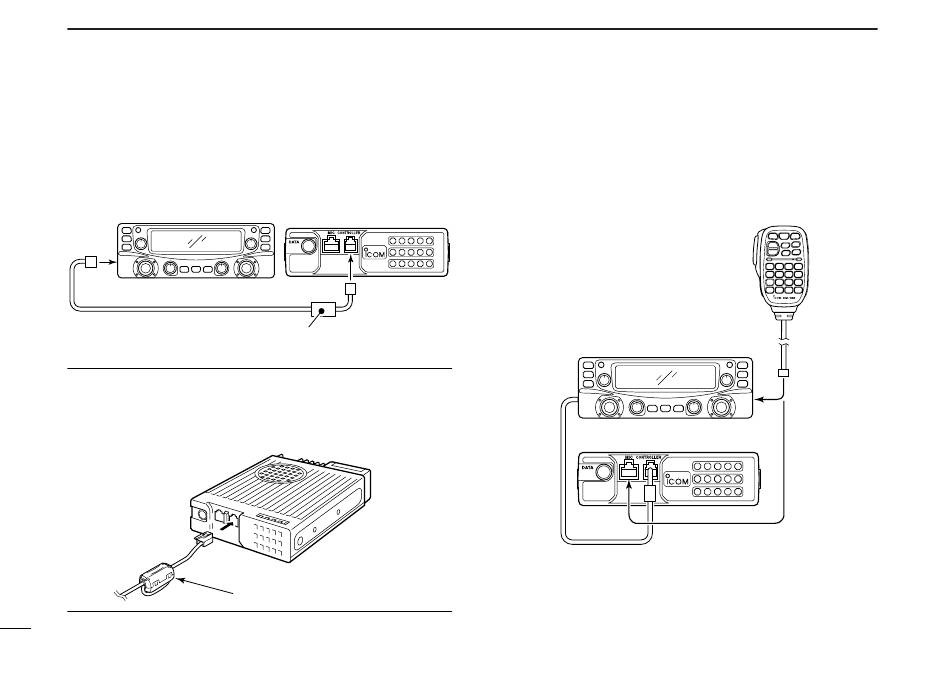

D Separation cable connection
A separation cable (3.5 m; 11.5 ft) is supplied with the IC-
2720H.
Connect the controller and the main unit using with the sepa-
ration cable as follows.
Controller
See " IMPORTANT!" below.
IMPORTANT!— For the USA version
A ferrite core is supplied within the separation cable. Connect
the cable connector with the ferrite core into the main unit
[CONTROLLER] socket as below.
V
Main unit
Ferrite core
D Microphone connection
Two microphone connectors are available for the IC-2720H—
one is on the controller side panel, and another is on the main
unit front panel.
Connect the supplied microphone to either the desired con-
nector as illustrated below.
Controller
Main unit
