Introduction Dana Api Matic 2000 - Swienty DANA api MATIC Instruction Manual

INTRODUCTION DANA api MATIC 2000+

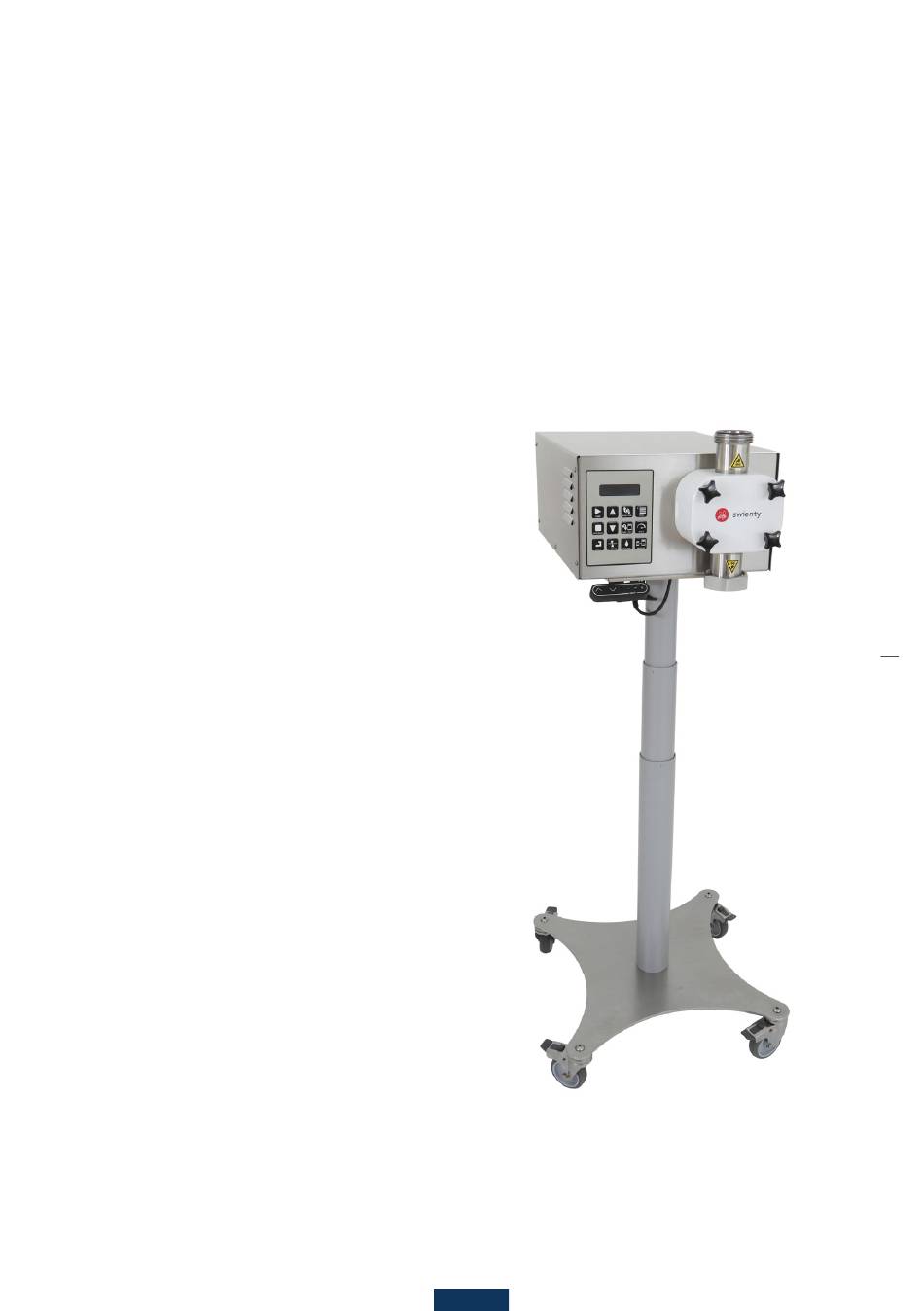

The DANA api MATIC 1000 is a filling machine with a gear pump. A strong low voltage DC motor
drives the gear pump with the help of a planetary gear. The motor is controlled by computer-ba-
sed electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling
programs with settings for weight, calibration factor and other filling parameters.
The machine works precisely and is easy to program for different substances. As a pump, the
machine works both ways and can be set to different speeds.
All parts that come into contact with the substance are made from food grade plastic or stainless
steel and are easy to take apart and to clean.
TECHNICAL DATA
Machine type:
Filling capacity:
Weight unit:
Precision:
Pump capacity:
Programs:
Power supply:
Power consumption:
Sound level:
Weight:
Dimensions:
Connections:
Computer-controlled
gear pump
10 g - ∞ g (honey)
ml / g / oz
+/- 1g
approx. 610 kg/hour
20 + options to program
90-305VAC 50/60Hz
575W
The sound pressure level
of the pump is less than
70 dB(A)
17.5 kg
51.5 x 31 x 18.5 cm
2" BS hose connection on
both sides of the pump
ENGLISH
