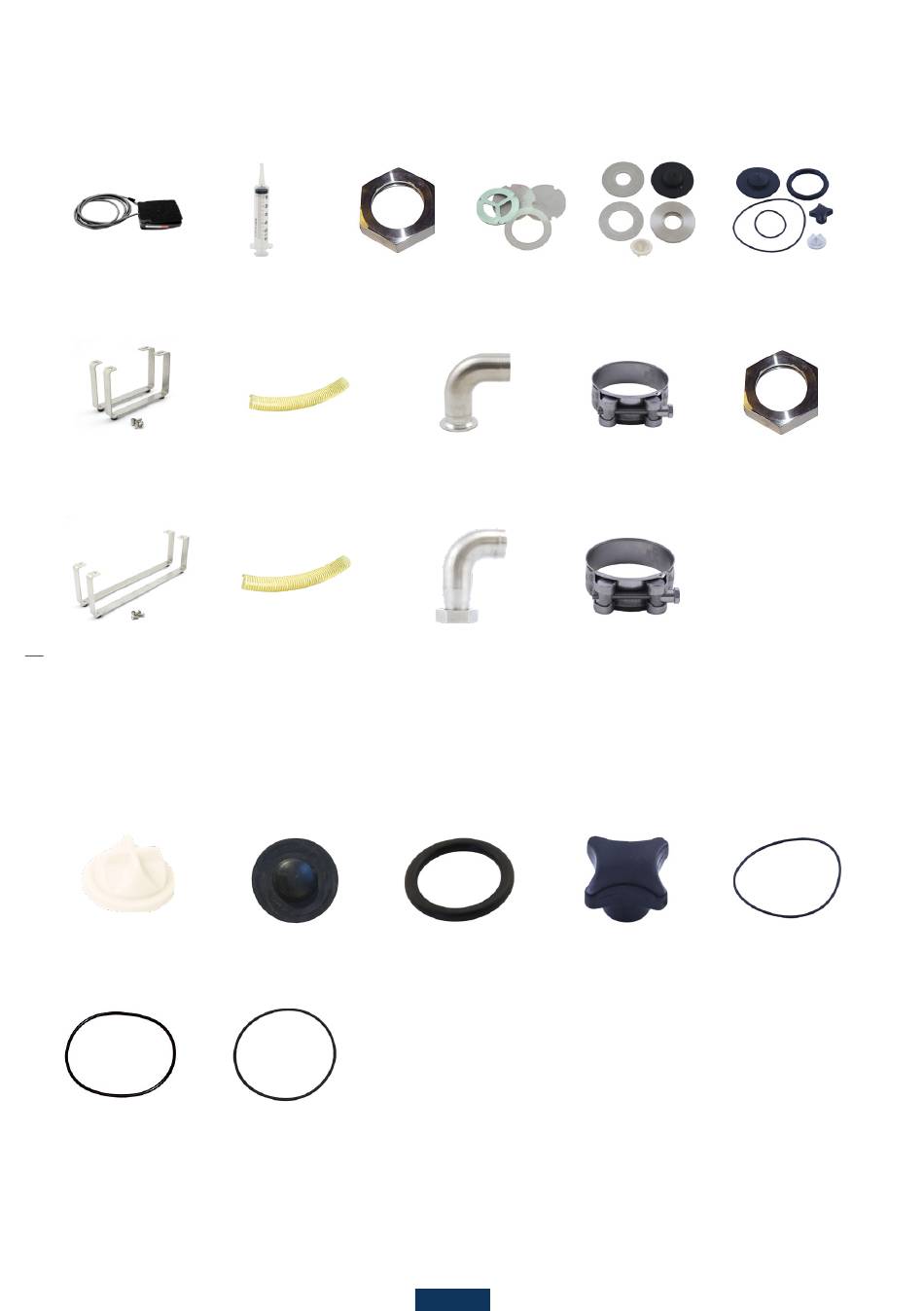

FITTINGS AND ACCESSORIES

INCLUDED FITTINGS
Foot pedal
110075
DaM 1000
Legs 2 pcs.
110046
DaM 2000+
38
Legs 2 pcs.
39
110056
SPARE PARTS SET
DANA api MATIC 1000 (110074B)
DANA api MATIC 2000+ and 3000 (110074A)
Cut-off valve Ø20
110065D
DaM 1000
O-ring 82x2 NBR 70
for pump housing
508082
Dosing syringe Nut BS 1½
0-60 ml 500110F
115815
DaM 1000
Hose 1½"/38mm
110165
DaM 2000+ & 3000
Hose 2"/50mm
110172
Diaphragm
110072
DaM 2000+ & 3000
O-ring 96x3 NBR 70
for pump housing
508096
Counterflow
valve
110059
DaM 1000
Fitting 1½" bent
110110A
DaM 2000+ & 3000 DaM 2000+ & 3000
1½-2" fitting bent
110130
O-ring BS 1½" Handmountable nut
500212 for pump housing
ENGLISH
Cut-off cross Spare parts set
Ø20 complete
110065C
DaM 1000 DaM 1000
Hose clamp 1½" Nut for BS 1½
110175
Hose clamp 2"
110176
O-ring 37x2
502740
fitting
500110F
NBR 70
508037
