MAINTENANCE

Other than cleaning the pump housing NO maintenance is necessary.
A TTENTION: The pump may never run without a filling substance for a longer period of
time (i.e. without honey or similar substance), because this may cause it to get too hot
and thus damage the gears and/or shaft seals.

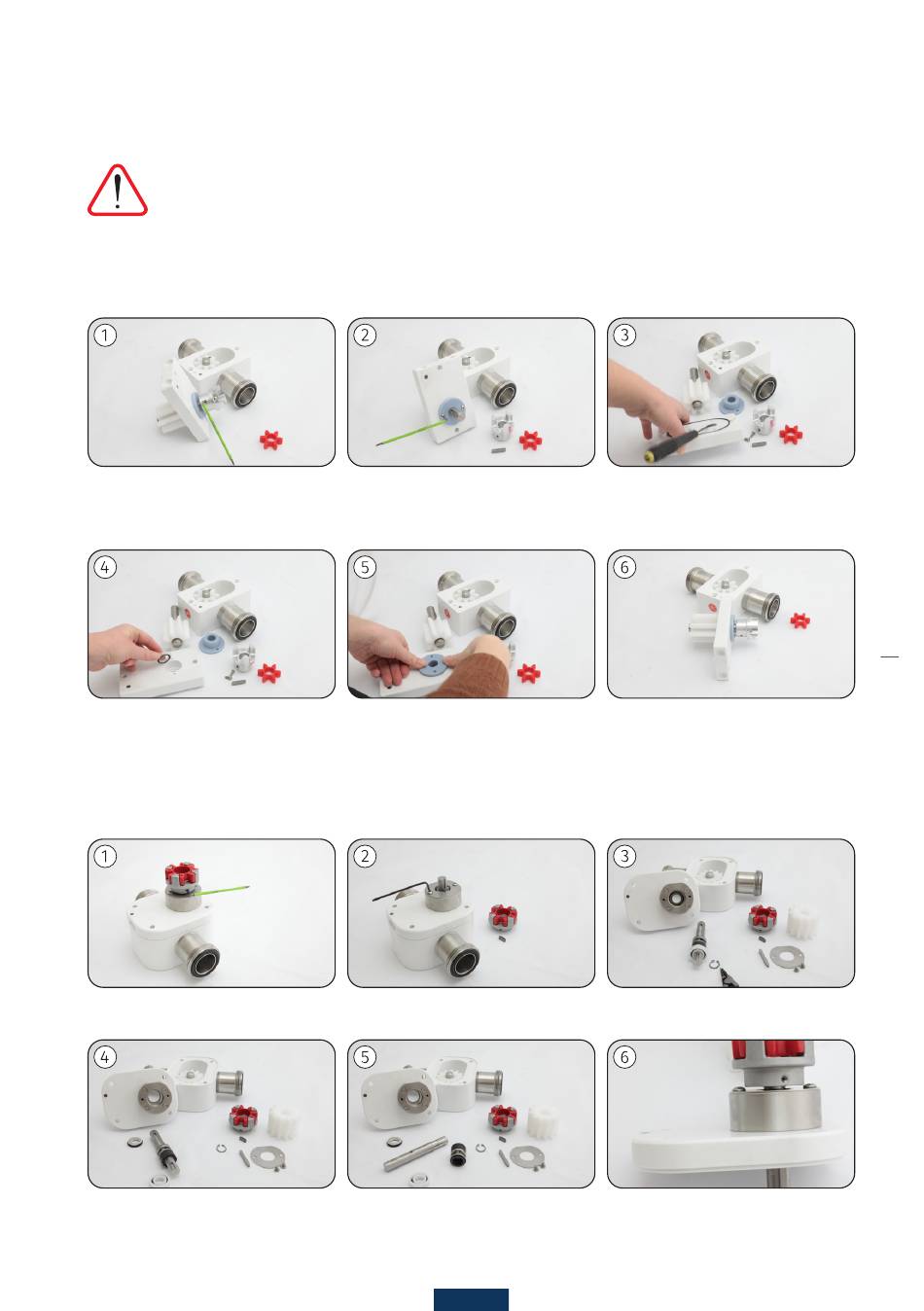

MOUNTING OF NEW SEALING - DANA API MATIC 1000
Unscrew the coupling from the
pump cover.
Put the new sealing in, now you
can start to put the pump head
together again.
MOUNTING OF NEW SHAFT SEAL AND BALL BEARING - DANA API MATIC 2000+ AND 3000
Unscrew the coupling.
Remove the seal inside the bearing
housing and push/pull the gasket
and shaft seal off the drive shaft.
Then screw off the plastic part.
The sealing gets positioned by
pressing the plastic part in with
your fingers.
Then unscrew the cover plate.
Now replace shaft seal and ball bea-
ring with new ones and reassemble
following instructions bachwards.
ENGLISH
Use a small, flat screwdriver to
remove the sealing from the
backside of the pump cover.
The coupling needs to have approx.
5 mm distance from the plastic part
to ba able to rotate.
Take the pump cover off, pull the drive
shaft out and remove the circlip.
When mounting the coupling leave
a millimeter to the screws so it can
still rotate.
