Cleaning With Long Storage - Swienty DANA api MATIC Instruction Manual

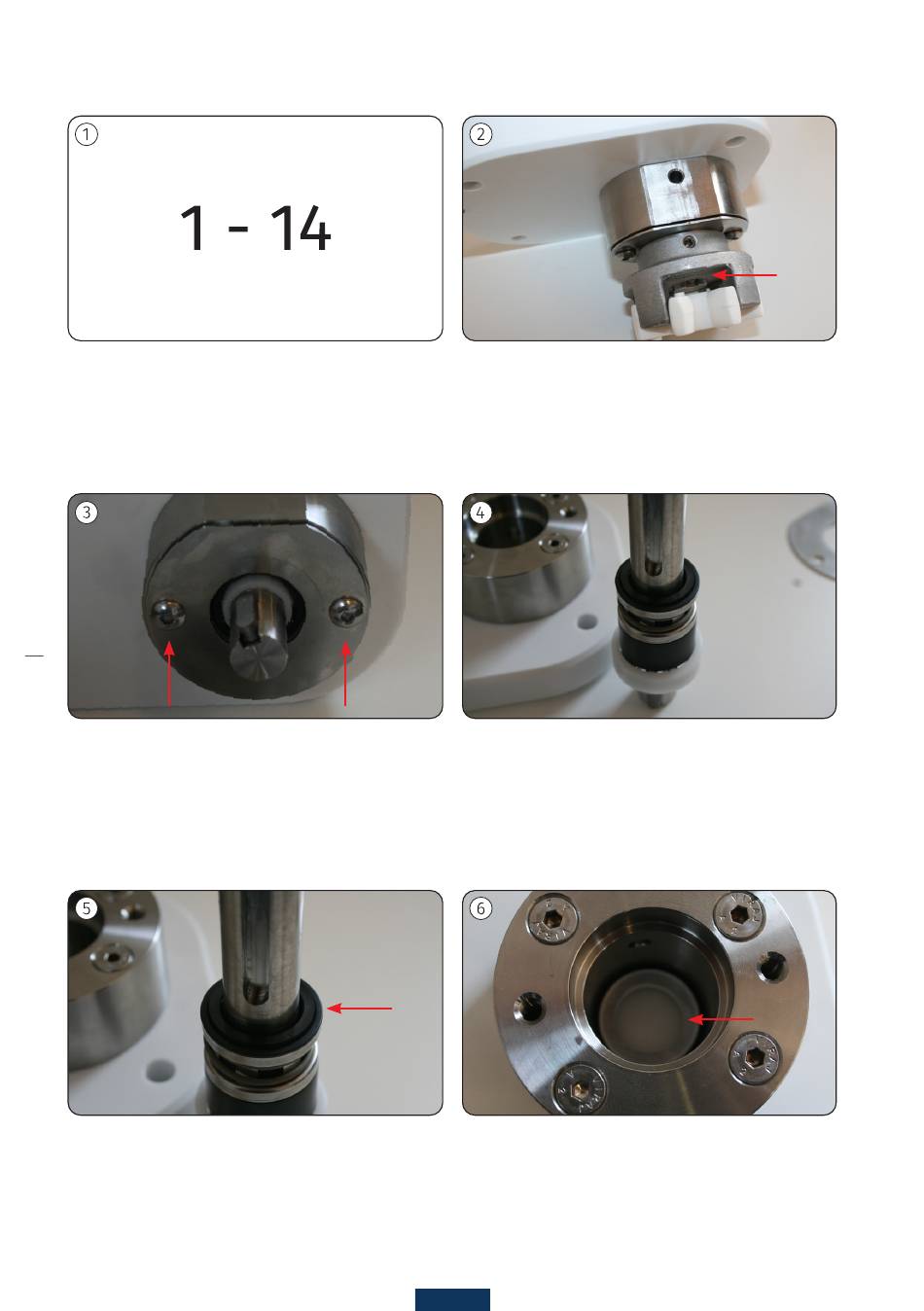

CLEANING WITH LONG STORAGE (DANA api MATIC 2000+ AND 3000)
Follow the cleaning guide on page 17, from point 1-14.
20
21
Loosen the two Allen screws and take off the plate.
Rinse the black disc (red arrow) with water until all
honey is gone.
Loosen the Allen screw (red arrow), after which the
claw cuppling can be pulled off the axis.
Now you can pull out the axis, bearings and gasket
out by carefully pulling on the axis (ATTENTION you
must pull from the side you just took the plate off of).
Also make sure to rinse all honey off the white cera-
mics disc (red arrow).
