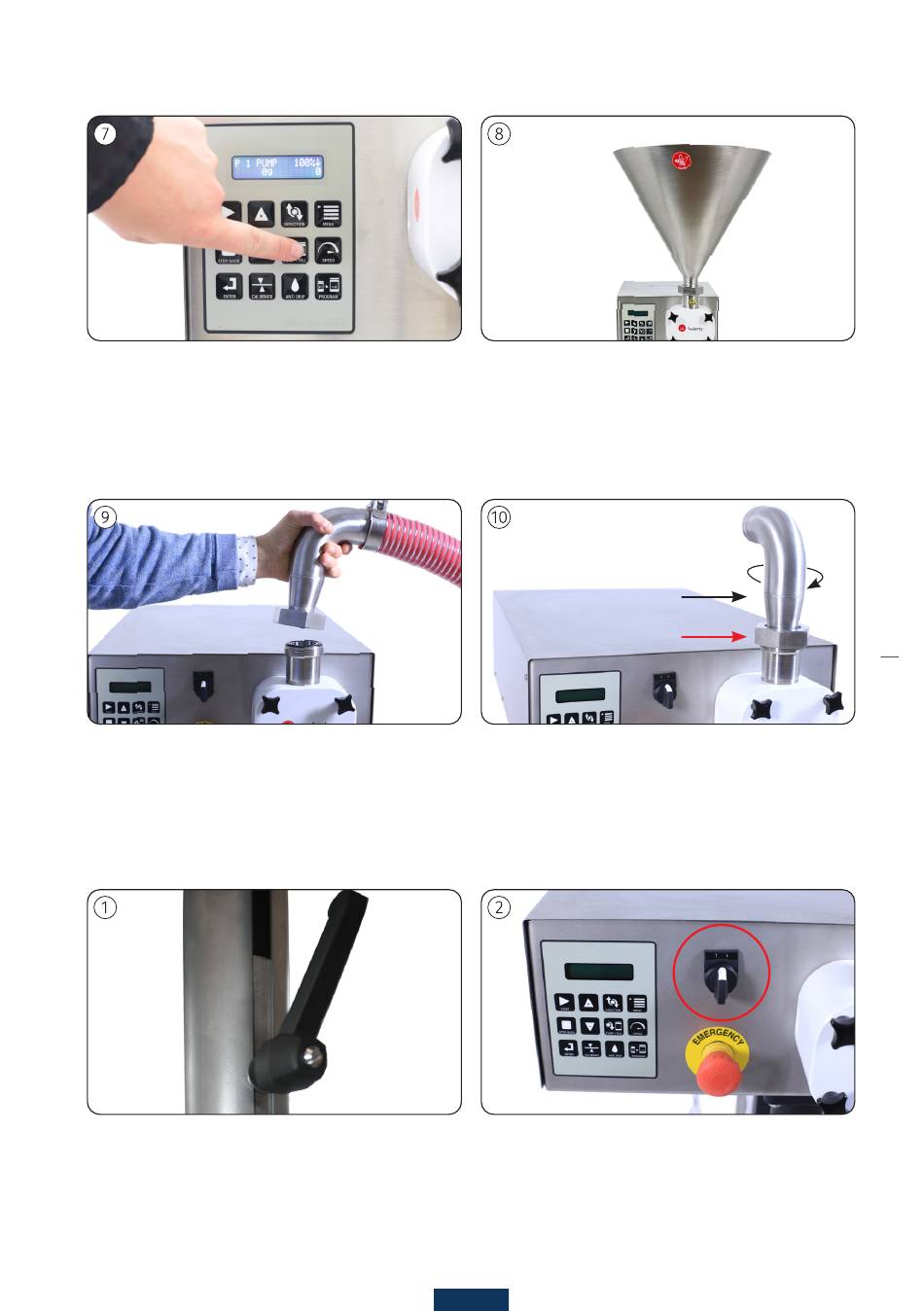

Set the machine to pump by pressing [PUMP/FILL].
Pump for 1-2 sec. and then fill up the pump housing
to the edge again.
Connect the hose to the tank and the machine.

HEIGHT ADJUSTMENT (DANA api MATIC 3000)

Loosen the two screws in the legs (as you can see on
the picture above). NOTE never stick your fingers into
the space that opens up! You can injure your fingers.
Tip: for optimal operation we recommend that the
tank is placed on the same level with or above the
pump housing. Shown with a funnel here, which we
recommend for small filling amounts.
The fittings can be tightened without tools. Grasp the
nut (red arrow) with your left hand and the fitting/
hose with your right hand. Pull clockwise on the
fitting and nut. This is how to tighten the fitting
without using tools. Check the tank fittings as well!
The button in the red circle is used to adjust the
height of the filling machine. When you have set the
desired height, tighten the screws again as can be
seen in picture 1.
