MOUNTING THE ANTI-DRIP

RUBBER DIAPHRAGM FOR FILLIG NOZZLE
The newly developed rubber diaphragm ensures a fast and drip free stop, also with very high
viscosity.

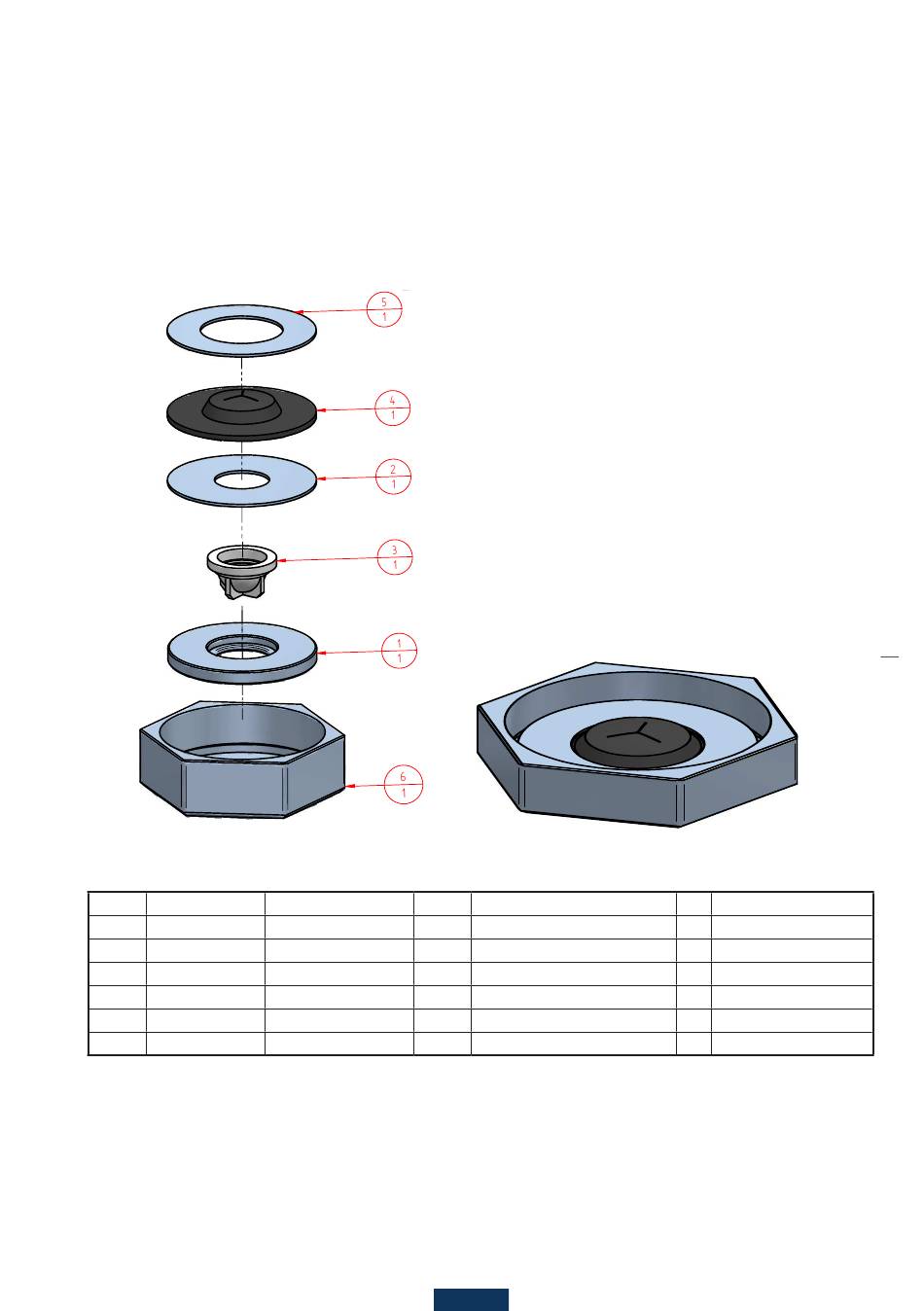

It is ABSOLUTELY NECESSARY, that all parts are put in the depicted order:
Document Number
09F dt-075-030
dt-075-031
Gummilukker-3_slidser
dt-004-082
NO. ITEM NO.
1
60750309F
2
110071A
Buk værktøj
3
110065D
Revisionnumber
4
110072
Revision date
5
110071
Tolerancer efter DS 2075, ISO 2768
6
500110F
middel hvor ikke andet er angivet
With creamy honey you might be able to leave out part 1 and 3.
We also deliver nozzles for other purposes and substances.
Get advice from your dealer or contact Swienty.
