Swienty DANA api MATIC Instruction Manual page 29

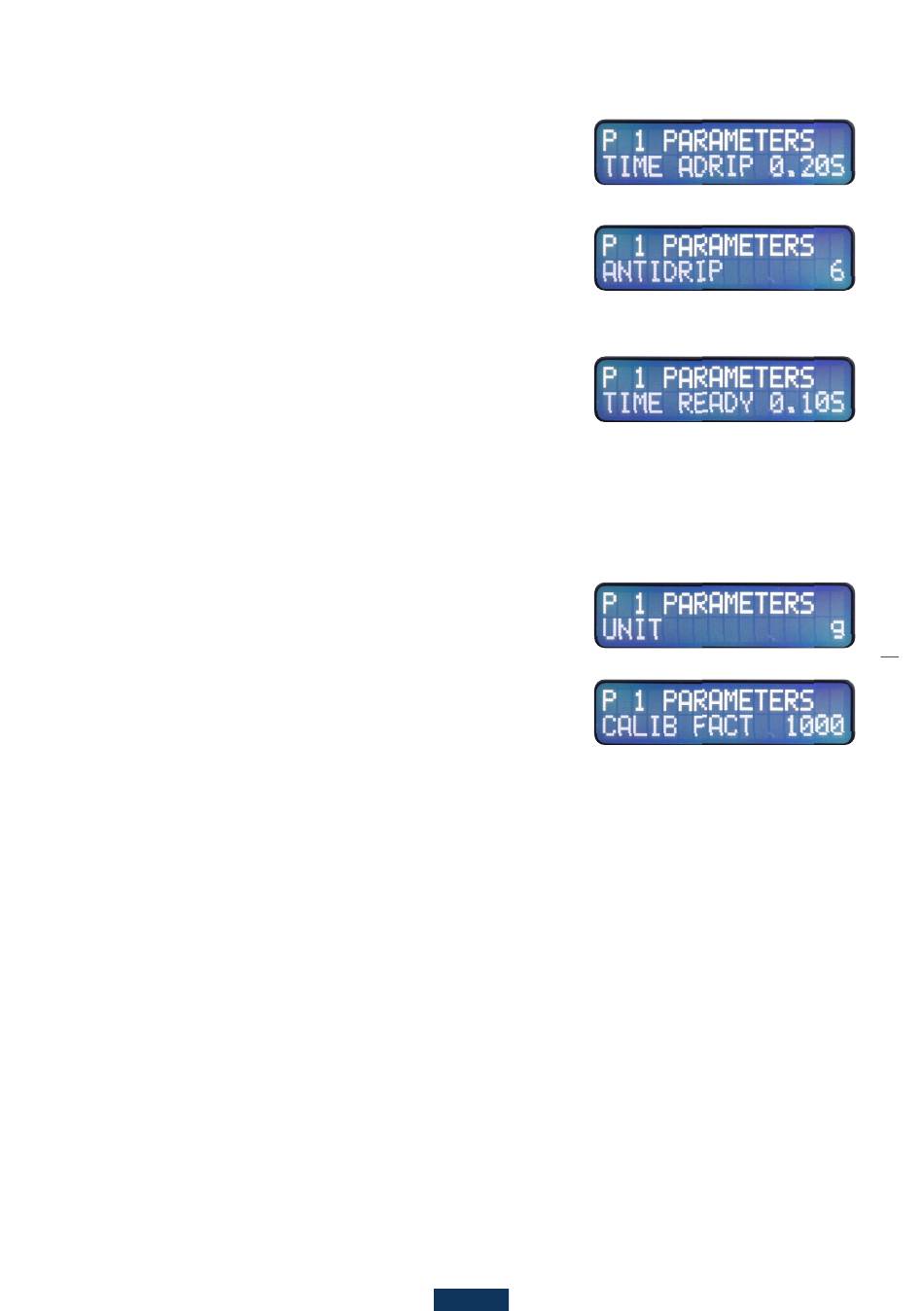

Timeadrip - Determines the break before the motor rotates
backwards with parameter ANTIDRIP amount of impulses.
TIMEADRIP can be set from 0. 1 0S to 9.90S in steps of 0. 1 0S (Fac-
tory setting is 0.20S). This value should usually not be changed.
Antidrip - Determines the amount of impulses the motor
rotates backwards after TIMEADRIP is run out to prevent the
machine from dripping after filling. ANTIDRIP can be set from
0 to 99 in steps of 1 (Factory setting is 6). You can also set this
value directly with the [ANTI DRIP] button.
Time ready - Determines how much time should pass before the
machine sends a (READY) signal to e.g. a turntable or another
machine after the filling process ended. TIME READY can for
example be used to prolong the dripping time for very tough
honeys (typically in connection with a turntable). If you use the
machine with a foot pedal, TIME READY can be set as a break
time between to fillings so you have time to remove the filled jar
and place an empty jar under the nozzle. TIME READY can be set
from 0.00S to 9.90S in steps of 0. 1 0S (Factory setting is 0. 1 0S).
Unit - Determines which unit you would like to use. You can
choose between g, OZ or ml.
26
Calibration - This is the calibration factor, which can be seen
27
and changed here. It gets set when you calibrate the machine
using the [CALIBRATE] button. We recommend not changing the
calibration factor, but instead using the [CALIBRATE] button.
The values are only valid for the chosen program. Værdierne
gælder kun for et givent program. To enter another program,
press the [STOP/BACK] button.
Press [STOP/BACK] to times to leave the menu function
(see funktions diagram).
Here you can set different values for the filling machine and its
20 programs.
Press [ENTER], P(1-20) is shown. The last used program number
blinks. To switch to another program, press [+]/[-].
ENGLISH
