MULTI-DECK SHELF ALIGNMENT

Taped to one of the shelves of each merchandiser
is a small plastic bag containing shelf alignment
strips. These strips are designed to enhance the
appearance of the shelves by aligning the front
edge of each shelf with that of an adjacent shelf.
When installing shelves:
1. Insert one of the alignment strips into the slot
behind the front edge of each shelf.
2. After all shelves are installed, slide the strip
across the shelf joint wherever two shelves
are adjacent. This will lock them together.

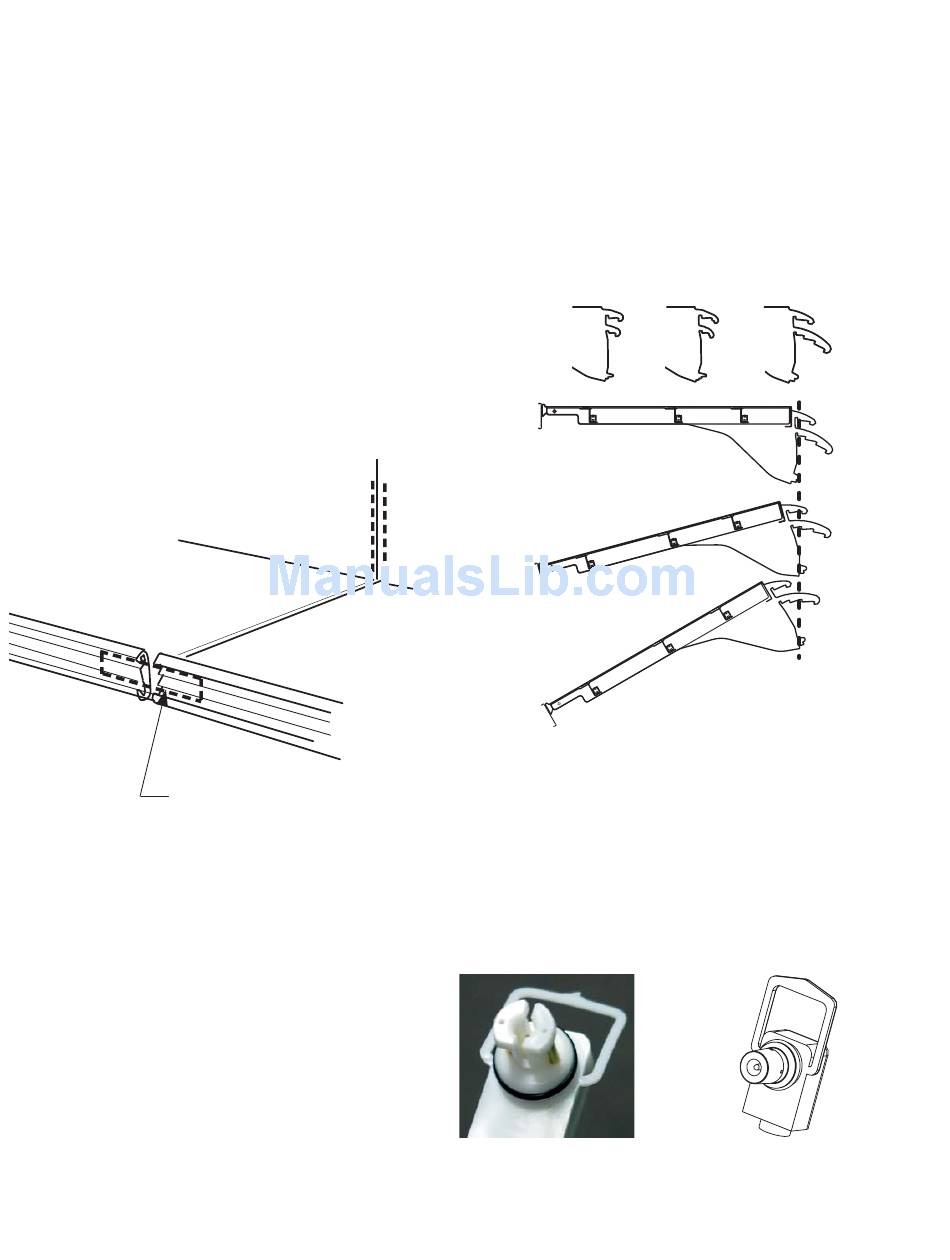

Shelf Alignment Strip
5
( / x 6 in. —16 x 152 mm)
8

MULTI-DECK SHELF CONFIGURATION

The bottom display shelves can be adjusted to
accommodate shallow or volume displays (bulky
items such as hams or chickens). The upper
shelves are individually mounted in 1 in. (25 mm)
increments and have two-, three-, or four-position
brackets permitting shelves to be placed in a flat
or down-tilt position (see illustration). Front
product stops are recommended when shelves are
placed in the down-tilt position.
P/N 0463880_E
/ O
PERATION
Case performance will be degraded if peg
shelves are used without baffles. Unauthorized
specialty shelving may cause poor case perfor-
mance also. Consult your Hussmann representa-
tive to ensure optimum performance of
Hussmann equipment.
2-Position 3-Position
PROCEDURE FOR INSTALLING LIGHTED
SHELVES WITH SINGLE-PRONG
CONNECTOR
Please follow these instructions to ensure good
contact between male and female connectors.
Fluorescent Lamp
Shelf Connector
4-Position
LED Light Shelf Connector
. .
