Merchandising Accessories Guide
For Impact Excel Medium Temp Wall Models

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M5X and is the answer not in the manual?

Questions and answers

Related Manuals for Hussmann M5X

Summary of Contents for Hussmann M5X

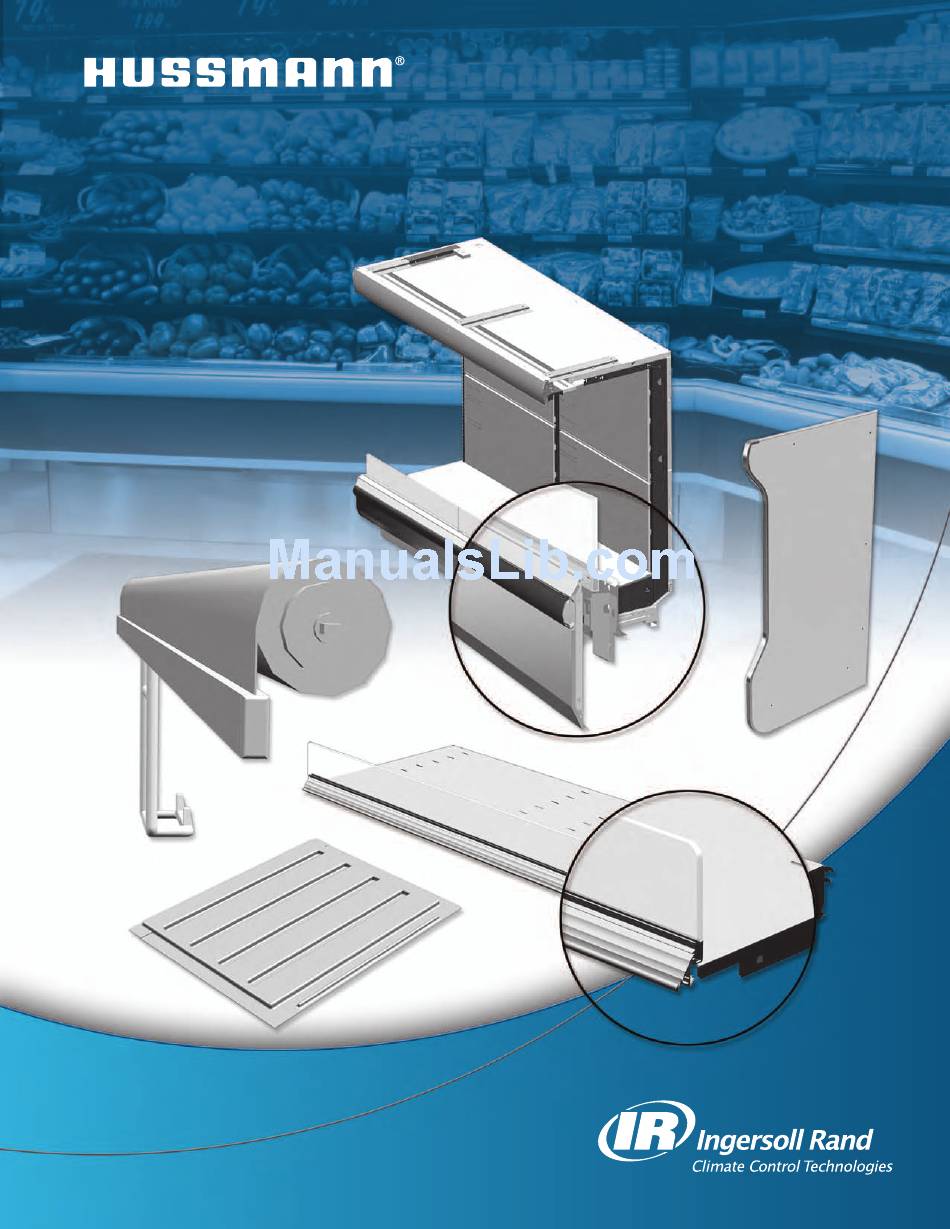

  • Page 1 Merchandising Accessories Guide For Impact Excel Medium Temp Wall Models...

  • Page 2: Table Of Contents

    Table of Contents This guide lists commonly used merchandising accessories that were available at time of publication. Other accessories may be available that were not included in this guide. Please contact your sales representative for further information. Exterior Canopies Contour Canopies Streamline Canopies Ends Multi-Deck Ends...

  • Page 3: Exterior

    E X T E R I O R Canopies Contour Canopies Finishes: All standard and optional paint colors Lengths: Same as parent case Metal: Textured (standard) or stainless Light lengths: 3’ or 4’ All fluorescent lights are size T-8. Fluorescent tubes available in a wide range of colors from numerous manufacturers. Consult your sales representative for details.
  • Page 4 Integrated Night Curtains with Brake Bracket Finishes: Case color Lengths: 3’ or 4’ Merchandising Accessories Guide...

  • Page 5: Streamline Canopies

    E X T E R I O R Canopies Streamline Canopies Finishes: All standard and optional paint colors Lengths: Same as parent case Metal: Textured (standard), smooth or stainless Light lengths: 3’ or 4’ All fluorescent lights are size T-8. Fluorescent tubes available in a wide range of colors from numerous manufacturers.
  • Page 6 Lighted Signs Lengths: 3’ or 4’ Back lighted by existing case lights. Graphics can be customized to fit your merchandising needs. - Develop your own graphics - Have us develop graphics - Modify existing templates Integrated Night Curtains with Brake Bracket Finishes: Case color Lengths: 3’...

  • Page 7: Ends

    E X T E R I O R Ends Multi-Deck Ends Contour Rectangular End Finishes: All standard and optional paint colors or brushed stainless steel Metal: Textured (standard) or stainless* Interior: Optional color or reflective Contour View End Finishes: All standard and optional paint colors or brushed stainless steel Metal: Textured (standard) or stainless* Interior: Optional color or reflective...
  • Page 8 Streamline Rectangular End Finishes: All standard and optional paint colors or brushed stainless steel Metal: Textured (standard), smooth, or stainless* Interior: Optional color or reflective Streamline View End Finishes: All standard and optional paint colors or brushed stainless steel Metal: Textured (standard), smooth, or stainless* Interior: Optional color or reflective *Stainless available on most models.

  • Page 9: Partitions

    E X T E R I O R Ends Partitions Connecting Partition - Contour Finishes: All standard and optional paint colors Exterior Metal: Textured (standard) Interior: Optional color or reflective Connecting Partition - Streamline Finishes: All standard and optional paint colors Exterior Metal: Textured (standard) Interior: Optional color or reflective Acrylic Partition...

  • Page 10: Single Deck Ends

    Single Deck Ends Contour Contoured End – Single Deck Finishes: All standard and optional paint colors or brushed stainless steel Metal: Textured (standard), stainless Interior: Optional color or reflective Streamline Contoured End – Single Deck Finishes: All standard and optional paint colors or brushed stainless steel Metal: Textured (standard), stainless Interior: Optional color or reflective...

  • Page 11: End Accessories

    E X T E R I O R Ends End Accessories End Bumpers Finishes: All standard bumper colors Diamond Tread Merchandising Accessories Guide...
  • Page 12 End Trim Finishes: Stainless and aluminum Merchandising Accessories Guide...

  • Page 13: Fronts

    E X T E R I O R Fronts Contour Fronts Finishes: All standard and optional paint colors and brushed stainless steel Lengths: Same as parent case Metal: Textured (standard), smooth, or stainless Note: Low, medium and high fronts are only available on dairy/deli and convertible models.
  • Page 14 Rail Lights - Contour Rail lights increase front height by 1 5 / 8 ” Finishes: Gray (standard), standard and optional paint colors Note: Includes PTM holding 1 1 / 4 ” and 1 1 / 2 ” price tags. Bumper - Contour Upper bumper standard Lower bumper optional...

  • Page 15: Streamline Fronts

    E X T E R I O R Fronts Streamline Fronts Finishes: All standard and optional paint colors and brushed stainless steel Lengths: Same as parent case Metal: Textured (standard), smooth, or stainless Streamline Glass Front Finishes: All standard and optional paint colors and brushed stainless steel Lengths: Same as parent case Metal: Textured (standard), smooth, or stainless...
  • Page 16 Rail Lights - Streamline Rail lights increase front height by 1 5 / 8 ” Finishes: Gray (standard), standard and optional paint colors Note: Includes PTM holding 1 1 / 4 ” and 1 1 / 2 ” price tags. Panel Guard Trim –...

  • Page 17: Bases

    E X T E R I O R Bases Standard Base Typical Standard Base (M5X shown) Splashguard Finishes: 701 black (standard), all standard and optional paint colors Splashguard Lengths: Same as parent case Splashguard Metal: Textured (standard) or stainless Standard bases come in various heights depending on case model.

  • Page 18: Rear Close Offs, Hold Offs, And End Close Offs

    E X T E R I O R Rear Close Offs, Holds Offs, and End Close Offs Rear Close Off Finishes: All standard and optional paint colors, stainless, and reflective Lengths: 4’, 6’, 8’ or 12’ Metal: Textured (standard) or smooth Hold Off –...

  • Page 19: Interior

    I N T E R I O R Shelves Standard Shelves All Hussmann shelves are manufactured as a single assembly with shelf deck and brackets included. Shelves are shipped installed in their respective cases. Finishes: White, black, stainless, or other optional colors Lengths: 3’...
  • Page 20 Heavy Duty Beverage Shelves Finishes: White, black, stainless, or other optional colors Lengths: 3’ or 4’ Depths (front to back): 16” to 24” in 2” increments Tilt Positions: 1 Position only (0° tilt) Peg Bar Shelves Finishes: White, black, stainless, or other optional colors Lengths: 3’...

  • Page 21: Floral Shelves

    I N T E R I O R Shelves Floral Shelves Floral Shelves Rectangle Cut-Out Floral Shelf Cut Out Size: 5 1 / 2 ” wide 44 3 / 8 ” long Finishes: Black only Lengths: 3’ or 4’ Depths (front to back): 10” to 22” in 2” increments Tilt Positions: 2 Position only (0°...

  • Page 22: Shelving Accessories

    Shelving Accessories Shelf Lights Shelf Light Fixtures: Plastic or metal material Plastic Fixture Finishes: White, or black Metal Fixture Finishes: White, black, stainless, or Front Light Mid Light other optional colors Shelf Light Wiring Harness: White or black Available in 2 positions as shown Light Lengths: 3’...
  • Page 23 I N T E R I O R Shelves Shelving Accessories continued Shelf Product Stops Wire Product Stop Finishes: White or black Heights: 2 1 / 2 ” or 4” Lengths: 3’ or 4’ Shelf Product Stops Acrylic Product Stop Heights: 1”, 2”, 2 1 / 2 ”, 3”, 3 1 / 2 ”...
  • Page 24 Shelf Product Stop Combined with Price Tag Molding (PTM) Product Stop Height: 4” PTM Height: 1 1 / 2 ” Holds the Following Price Tag Sizes: 1”, or 1 1 / 4 ” Materials: Aluminum Finishes: White, black, bare metal, or optional colors Lengths: 4’...

  • Page 25: Pans And Wire Racks

    I N T E R I O R Pans and Wire Racks All Hussmann shelves are manufactured as a single assembly with shelf deck and brackets included. Shelves are shipped installed in their respective cases. Standard Plastic Flat Pan Finishes: White or black Lengths: 4’...
  • Page 26 Step Wire Rack Finishes: White or black Lengths: 4’ Material: Plastic coated metal wire Lipped Wire Rack Finishes: White or black Lengths: 4’ Lip Height: 4” or 6” Material: Plastic coated metal wire Heavy Duty Wire Rack Finishes: White or black Lengths: 3’...

  • Page 27: Thermometers

    I N T E R I O R Thermometers Discharge Thermometers 6 3 / 4 ” Pencil Discharge Thermometer Scales: Fahrenheit or Celsius 1” Dial Discharge Thermometer Chrome Case Finishes: Chrome Short Probe (2.5”) Scales: Fahrenheit or Celsius 1” Dial Discharge Thermometer Chrome Case Finishes: Chrome Long Probe (5”)
  • Page 28 2” Dial Discharge Thermometer Black Case Finishes: Black Flush Mount Scales: Fahrenheit or Celsius 2” Dial Discharge Thermometer White Case Finishes: White Flush Mount Scales: Fahrenheit or Celsius 2” Dial Discharge Thermometer White Case Finishes: White Scales: Fahrenheit or Celsius Merchandising Accessories Guide...

  • Page 29: Digital Thermometers

    I N T E R I O R Thermometers Digital Thermometers Digital Thermometer Black Case Finishes: Black Solar Powered Scales: Celsius Digital Thermometer Black Case Finishes: Black Solar Powered Scales: Fahrenheit Merchandising Accessories Guide...
  • Page 30 Digital Thermometer White Case Finishes: White Solar Powered Scales: Celsius Digital Thermometer White Case Finishes: White Solar Powered Scales: Fahrenheit Merchandising Accessories Guide...
  • Page 31 Providing equipment and services to manage controlled-temperature environments for food and other perishables, our Climate Control Technologies sector encompasses both transport and stationary refrigeration solutions. Our product brands include Thermo King® , , world leader in transport temperature control systems, and Hussmann®, a manufacturer of refrigeration and food merchandising equipment.
