3.6.9. User defined screens

In UTCOMP application, you can define your own screen. You can decide what to display in each place. In UTCOMP-3 there is available single user
screen. In UTCOMP-PRO there are four user screens (different templates).

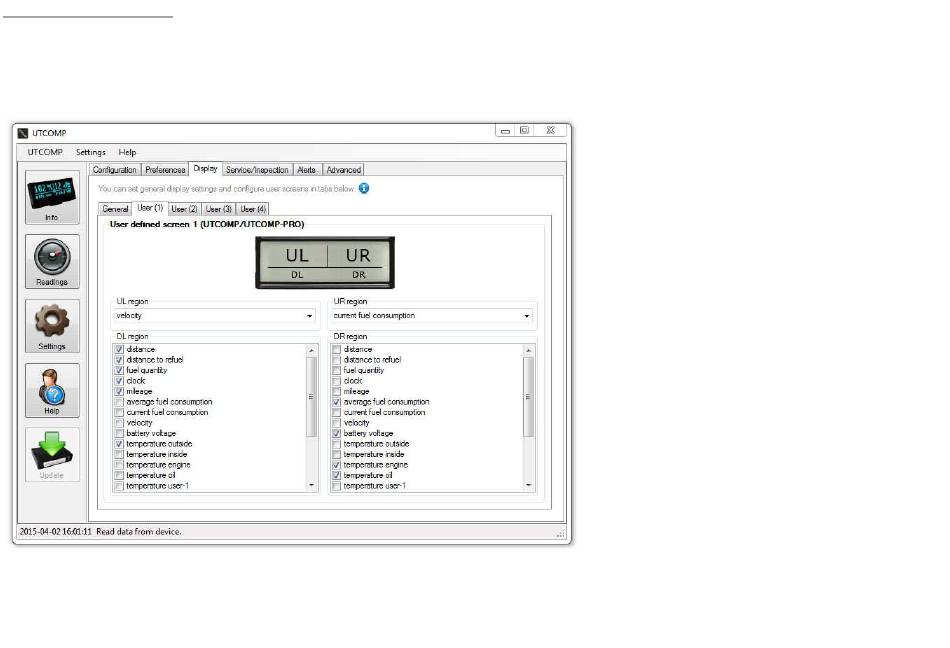

Here is an example of configuration user screen for UTCOMP-3 and UTCOMP-PRO (user-1 has template from tacho screen):
Top regions (UL and UR) are single choose. Bottom regions are multi choose (DL and DR) - press SW2 and SW3 to switch between options.
