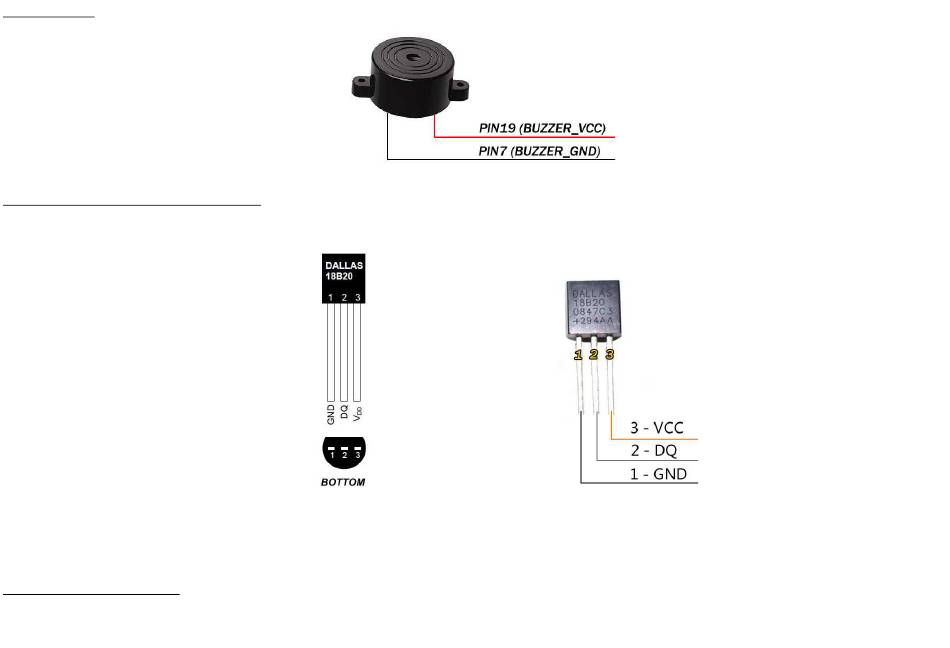

2.4.3. BUZZER

2.4.4. TEMPERATURE SENSORS DS18B20

Kit includes two digital temperature sensors DS18B20. Each sensor has 3 terminals: GND (GROUND), DQ (SIGNAL) AND VCC (POWER SUPPLY).
Pay special attention to the outputs – it is easy for mistake changing side wires and burning the sensor (if mistake is done then nothing may be
displayed on the screen). Isolation wire leads are recommended using hotair shrink insulation
temperatures, so connection order does not matter. For inside temperature sensor we recommend to place it in the place of free heating air, sun rays
1
please take a look at short video tutorial: https://www.youtube.com/watch?v=R8Z66qtYowA
1
. In UTCOMP-3 application you can associate sensors with
- 16 -
