REVELTRONICS UTCOMP-3 User & Assembly Manual page 32

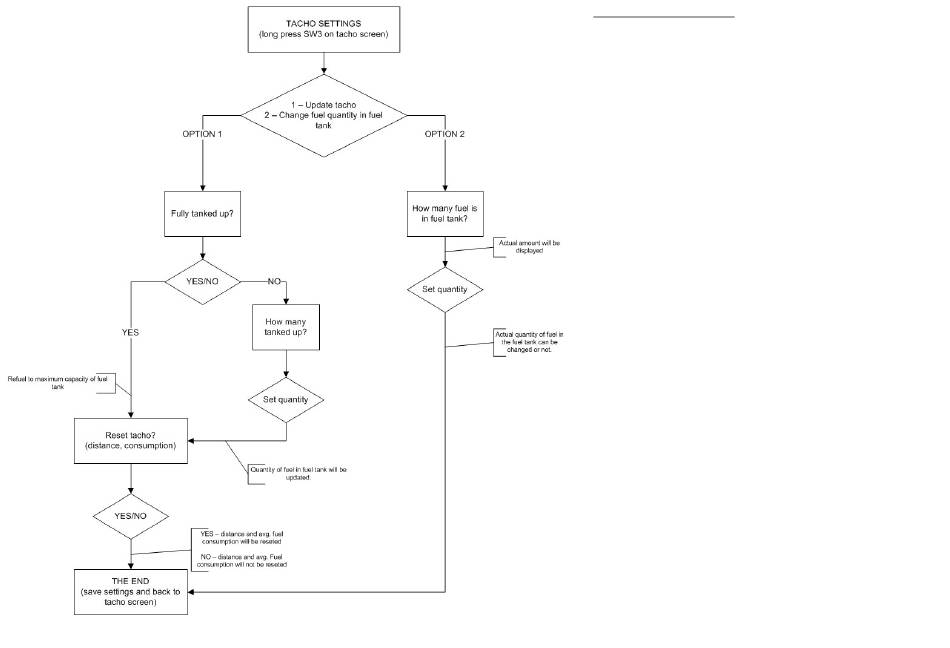

Notes for the diagram:
•
you can jump to reset menu from screens: tacho,
fuel tanks and user screens,
•
if you connect fuel level signal than you do not
need to enter fuel quantity,
•
if you do not enter fuel quantity and do not
connect fuel level signal than two functions will not work
properly: estimated distance to refuel and fuel level in
fuel tank (average fuel consumption will still work),
•
for vehicles with LPG displayed sequence is for
current fuel type (UTCOMP measure distance and fuel
consumption separately for PB/LPG).
- 32 -
