3.5.1. Screen 1 - Temperatures

Available information: temperatures (outside, inside, oil, engine), battery voltage level, fan cooler state (on/off), date and time. Press SW3 to switch
between battery voltage, engine temperature (icon represents also fan state) and oil temperature.

3.5.2. Screen 2 - Tacho

Available information: vehicle speed, current fuel consumption, travelled distance, estimated distance to refuel, fuel left in fuel tank, vehicle mileage
and time. For vehicles with LPG there is also additional icon on the center of the screen indicating current fuel type (p - petrol, g - lpg). Press SW2 to
switch between options displayed in bottom-left corner. Long press SW3 will jump to menu for statistics reset.
Following diagram on the next page shows resetting sequence.

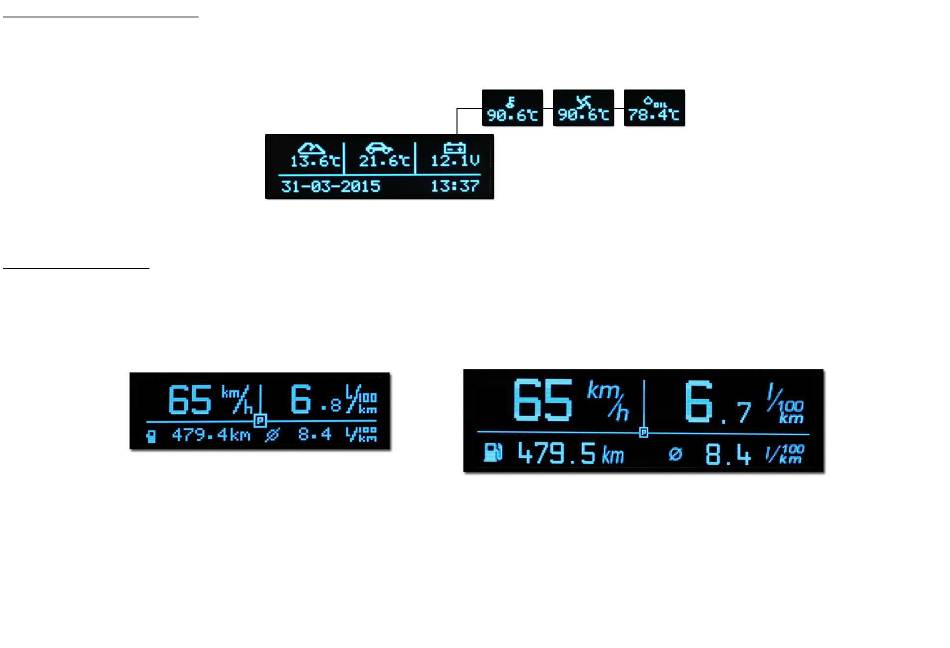

OLED 2,3" display (UTCOMP-3)
OLED 2,3" (UTCOMP-3) on the left, OLED 3,2" (UTCOMP-PRO) on the right
- 31 -
