3. User manual

3.1. Quick start

Initial start-up can be performed before assembly - in order to check the device and its initial configuration. Connect the device using the USB 2.0
cable to the PC. Windows should detect new hardware and automatically install the drivers. Next download, install and run the UTCOMP

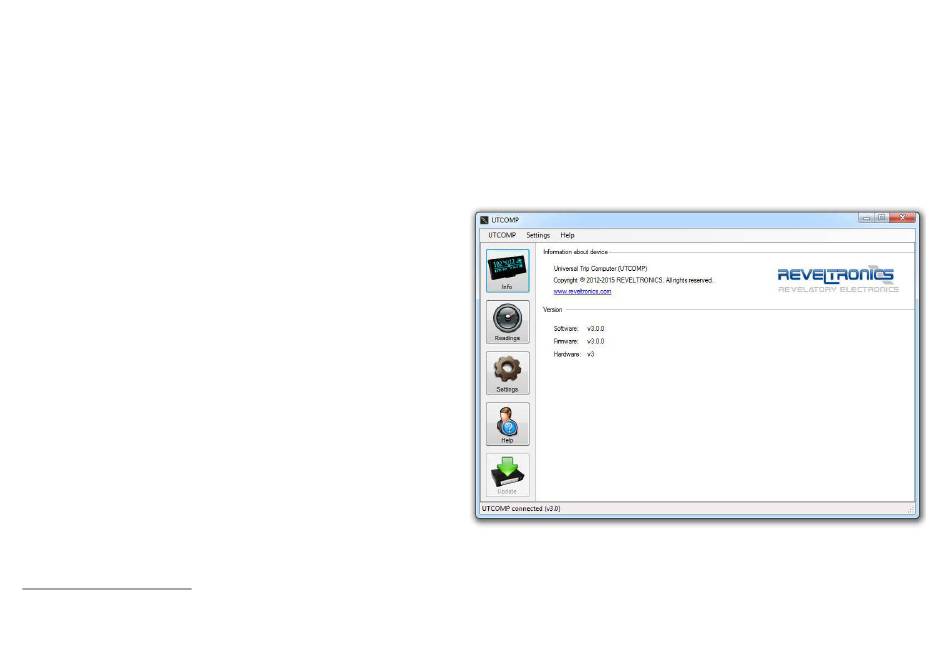

the device is working properly the status window will display "UTCOMP connected (v3.x)".
There are five main tabs in the left menu:
•
information about device: software version, firmware version and
hardware version,
•
current readings from inputs/outputs,
•
device settings,
•
help: calibration assistant is used to calculate vss/inj constants
for speed/distance and fuel consumption measurements,
•
update: for devices with previous version of firmware.
4
UTCOMP software can be downloaded from manufacturer page (technical support tab) - the same application is for UTCOMP-3 and UTCOMP-PRO
- 23 -
4 application. If
