UTCOMP upon detection of the first pulse (vehicle moved) will start counting the time. Take a look that you do not have to move immediately after
resetting the measurements. When the vehicle reaches the desired speed level then counter stops. Measurement accuracy depends on resolution of
vehicle speed signal, e.g. accuracy is + / - 0.1s for VSS constant <0.2 m/imp.
The screen displays the currently set intervals, and current speed measurements. Refreshing parameters on the screen are slower and less accurate
than measurement procedure.
User can set the ranges of accelerations/decelerations in which the measurement will be made (via UTCOMP application)
3.5.7. Screen 7 – Oscilloscope
Oscilloscope allows real-time observation of constantly varying voltage on Adc1-Adc5 and Adc1Vcc1-AdcVcc2 inputs. You can active this function for
each channel in advanced settings (Settings -> Advanced -> Oscilloscope). You can set label and voltage range for each channel. Press SW2 to switch
between inputs.
Typical applications are: signal from lambda o2 sensor (oscillations between lean and reach mixture), boost pressure chart, threshold position sensor
or any other voltage signal changing in time.

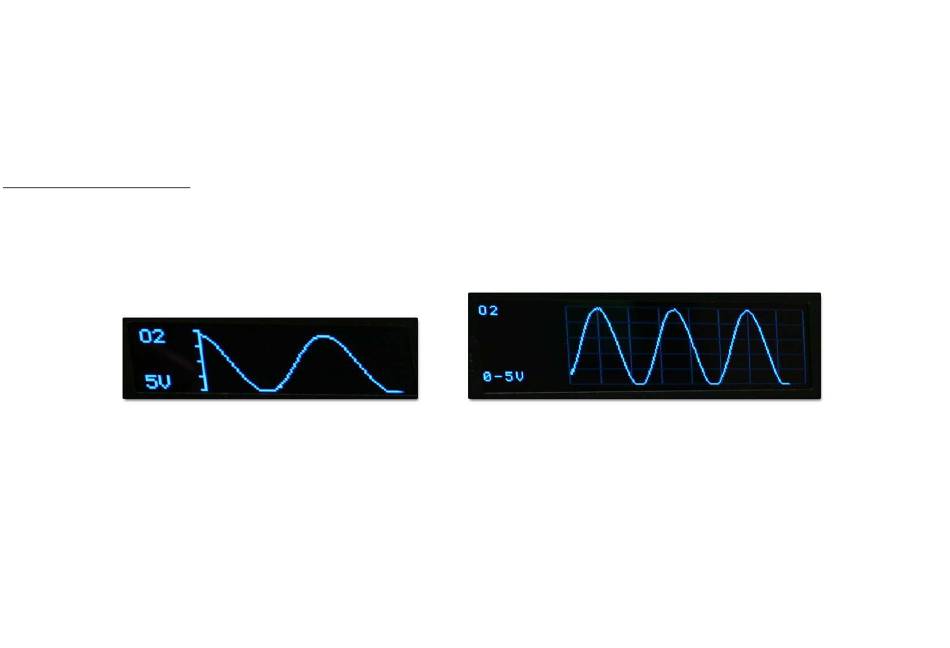

Oscilloscope on OLED 2,3" (UTCOMP-3) - on the left, and OLED 3,2" (UTCOMP-PRO) - on the right
- 36 -
