Rear Panel Description

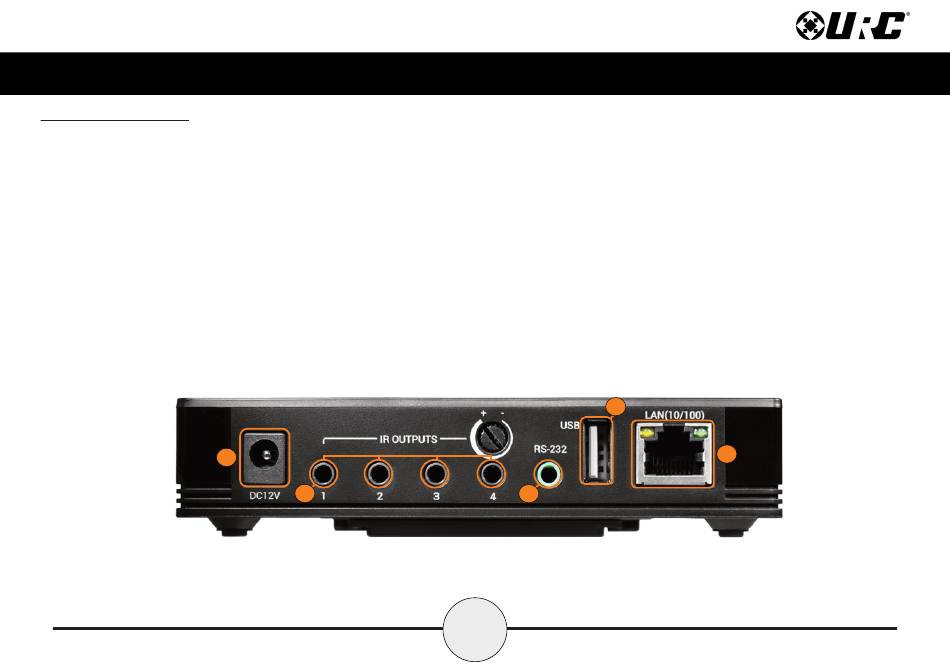

The rear panel of the MRX-5 Advanced Network System Controller displays the
following information:
1. DC 12V: Connect the supplied power adapter to this port, the Power LED
becomes solid blue when the device has received power.
2. IR Outputs: Four (4) standard 3.5mm IR emitter ports. IR Output 4 provides
variable level adjustment.
3. RS-232 Port: One (1) RS-232 ports support Tx(Transmit), Rx(Receive) and
GND(Ground) connections for two way communication.
Compatible with URC cables RS232F and RS232M.
1
2
4. USB Port: Designed for future use.
5. LAN Port: RJ45 standard 10/100 Ethernet connection to the
local network.
4
3
3
