Summary of Contents for URC MRX-4IR
- Page 1 Order Number : GETEC-C1-12-197 FCC Part 15 subpart C 1 / 1 Test Report Number : GETEC-E3-12-065 Page APPENDIX H : USER’S MANUAL EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR...
- Page 2 MRX-4IR Network Base Station Owner’s Manual...
- Page 3 MRX-4IR Network Base Station Owners Manual ©2012 Universal Remote Control, Inc. The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc.
-
Page 4: Table Of Contents
ABLE ONTENTS Introduction Features and Benefits Parts Guide Front, Rear and Bottom Panel Descriptions Network Installation Network Discovery & Download Optimizing IR Flasher Levels Overview of IR Routing USA Limited Warranty Statement Specifications Federal Communication Commission Interference Statement Regulatory Information to the user Declaration of Conformity... -
Page 5: Introduction
System Controller and then sends IR signals to control your components. Compact Size The small size of the MRX-4IR allows it to easily fit behind devices or into places where a traditional base station would not. Parts Guide The MRX-4IR includes:... -

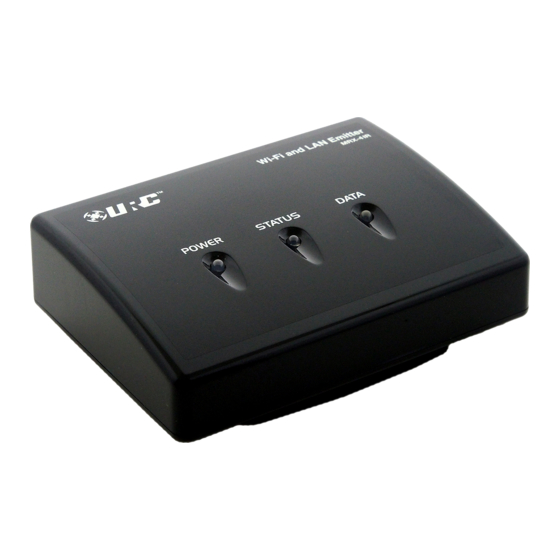

Page 6: Front, Rear And Bottom Panel Descriptions
“Orange” (which is only present when a wireless connection is used) and no connection is OFF. Data LED: The Data LED flashes as the MRX-4IR transmits IR data. IR Blaster: The front IR Blaster sends IR signals to one or more components placed in direct line of sight. - Page 7 MRX-4IR N ETWORK TATION Rear Panel The rear panel ports are: DC 12V Power: Plug in the included 12V DC 1A power supply. IR Outputs: Connect an included 3.5mm IR emitter to each of the four IR outputs. Adjust the IR output signal strength for port 1 using the attenuator located on the bottom of the unit.
- Page 8 Pressing and holding the Reset button for 15 seconds, will factory default the MRX-4IR, and return the unit back to its original unprogrammed state. Mac Address Sticker: The MAC Address (12 numbers) identifies this wireless device when connected to the network.
-
Page 9: Network Installation
WARNING!! Before proceeding, a Custom Professional is required to install and configure your MRX-4IR. The MRX-4IR is a network base station that allows full control of your components with the use of Total Control MRX Advanced System Controllers and compatible interfaces. Once installed on the network, and a button is pressed on an interface, a command is transferred over the customer’s network to the MRX Advanced... -
Page 10: Network Discovery & Download
WARNING!! Before proceeding, a Custom Professional is required to install and configure your MRX-4IR. 1. Open a new or current project. In Step 3: Add URC Devices, add an MRX-4IR to a room included in your project which represents the physical location of the unit. -
Page 11: Optimizing Ir Flasher Levels
ALL. When IR commands are sent to all the flashers in a cabinet, you can have difficulty adjusting the IR Output. Program URC Accelerator to send IR commands only via a specific IR port (1-4), then readjust the IR Line Output level. -
Page 12: Overview Of Ir Routing
There are several considerations to take into account when you are installing an MRX-4IR to control an array of components: 1. When connecting a flasher from the MRX-4IR to your compo- nent make sure to notate the IR outputs being used. Program the sameport designations into URC Accelerator. -
Page 13: Usa Limited Warranty Statement
MRX-4IR N ETWORK TATION USA Limited Warranty Statement Your Universal Remote Control, when delivered to you in new condition, is warranted against defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this product against defects in material or workmanship for a period of one (1) year and as set forth below. - Page 14 MRX-4IR N ETWORK TATION LIMITATION OF REMEDIES UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL...
-
Page 15: Specifications
MRX-4IR N ETWORK TATION Specifications CPU : ARM 32-bit Cortex-M3(120MHz) Memory : 128Kbyte SRAM, 768Kbyte Flash Macro Capability : Up to 255 steps each IR Range(Line of Sight via Infrared) : 30 to 50 feet, depending on the environment RF Range(radio frequency) : 50 to 100 feet, depending upon the environment Wi-Fi : IEEE 802.11 b/g/n... -
Page 16: Federal Communication Commission Interference Statement
MRX-4IR N ETWORK TATION Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 17: Regulatory Information To The User
& same ratings described on the product label (12V DC 1A). Declaration of Conformity “Hereby, Universal Remote Control Inc. declares that this MRX-4IR is in compliance with the Essential requirements and other relevantpro- visions of Directive 1999/5/EC.”... -
Page 18: Declaration Of Conformity
MRX-4IR N ETWORK TATION Declaration of Conformity Company Name Universal Remote Control Inc. Company Address 500 Mamaroneck Avenue, Harrison, NY 10528, U.S.A www.universalremote.com Contact Information Phone: (914)835-4484 Fax: (914)835-4532 Brand Name UNIVERSAL remote control Product Name Base Station Model Name... - Page 19 Page 15...
- Page 21 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0131A Rev 01...
