- Page 1 Order Number : GETEC-C1-23-142 FCC Part 15 subpart C & FCC Part 15 subpart E 1 / 1 Test Report Number : GETEC-E3-23-004 Page APPENDIX H : USER’S MANUAL EUT Type: Touch Screen Controller FCC ID.: 2AT6QMX4000...

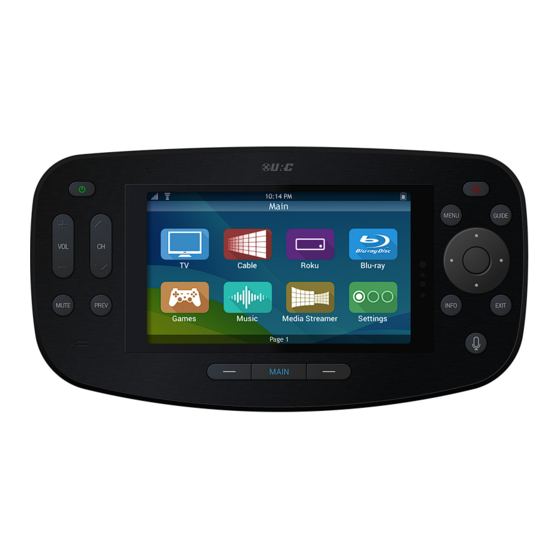

- Page 2 MX-4000 Complete Control Owner’s Manual MX-4000 Owner’s Manual...
-
Page 3: Table Of Contents
Owner’s Manual Introducing the MX-4000 Table of Contents Thank you for purchasing URC’s MX-4000 wand remote control. Its easy and Features & Benefits......................1 intuitive use helps to simplify your life while adding control of more things than thought possible. -
Page 4: Features & Benefits
MX-4000 Complete Control Owner’s Manual Features & Benefits • IR/RF Device Control: This unit can directly control every IR device in your home. You can also use RF to control devices located in different rooms by integrating an MRF base station. •... -
Page 5: Parts
MX-4000 Complete Control Owner’s Manual Parts • MX-4000 Wi-Fi Remote Control • Li-ion Rechargeable Battery MX-4000 Charging Cradle • Charging Cradle • Power Adapter • USB Type C-Cable Power Adapter Rechargeable Battery USB Type C Cable... -
Page 6: Connecting The Battery Pack
MX-4000 Complete Control Owner’s Manual Connecting the Battery Pack A battery is included in the box when shipped from the factory. Press the spring lock down to unlock and remove the cover. Place the battery into the battery compartment, making sure to align the contacts on the battery with the contacts within the MX-4000’s battery compartment. -
Page 7: Using The Mx-4000
MX-4000 Complete Control Owner’s Manual Using the MX-4000 The Main Menu pages display activities and/or devices. Press the Main button to access the Main Menu. Larger systems may have more than one (1) page. Press either of the Page buttons to view additional Main Menu pages. Although the MX-4000 is programmed with custom layouts and devices, there are persistent buttons that maintain a steady function: A. - Page 8 MX-4000 Complete Control Owner’s Manual H. Navigation Keys: Comprised of up, down, left, and right. These buttons are used to navigate through the menus and/or devices. I. Select: Center button of navigation keys, used to confirm selections displayed on a viewing device. J.
-
Page 9: Using Voice Control
MX-4000 Complete Control Owner’s Manual Using Voice Control The MX-4000 has the capability of using Amazon Alexa Voice Assistant to control activities and devices programmed within the Alexa system. For instructions on how to enable the Alexa Voice service, refer to page The MX-4000 preserves your privacy with a push-to-talk button on the remote control. -
Page 10: Displaying The Setup Menu
MX-4000 Complete Control Owner’s Manual Displaying the Setup Menu The Setup Menu allows users to configure or change certain behaviors of the MX-4000. Enter the Setup Menu by pressing and holding the Main and Select (see image at the right) buttons for greater than five (5) seconds. The Setup Menu times out after sixty (60) seconds and returns the MX-4000 to the system’s Main Menu. -
Page 11: Voice Assistant & Wifi Setup
MX-4000 Complete Control Owner’s Manual Voice Assistant & WiFi Setup This option allows you to integrate your Amazon Alexa voice assistant with the MX-4000. Once enabled, use the push-to-talk button to issue vocal commands to the Alexa system. Follow these instructions to enable the Alexa Voice Assistant service and connect the remote to a WiFi network: 1. - Page 12 MX-4000 Complete Control Owner’s Manual 3. Select Reactivate Beacon. 4. The FFS beacon is activated. Select OK and open the Alexa app on a smart phone or tablet.
- Page 13 MX-4000 Complete Control Owner’s Manual 5. On the app Home screen, select Devices. 6. Select the + icon in the top-right of the Devices page to add the remote.
- Page 14 MX-4000 Complete Control Owner’s Manual 7. Select Add Device. 8. Type “URC” into the search bar at the top and select the only option that is displayed.
- Page 15 MX-4000 Complete Control Owner’s Manual 9. Select Allow to provide the Alexa App with required permissions to continue setup. 10. Select a Wi-Fi network to connect the remote too.
- Page 16 MX-4000 Complete Control Owner’s Manual 11. Enter the Wi-Fi network password and select Next. Follow any other prompts to complete the setup process. The remote and Alexa have now been paired and the Mic button is ready for use.
-
Page 17: Voice Assistant Settings
MX-4000 Complete Control Owner’s Manual Voice Assistant Settings After setup, the Voice Assistance menu offers a few features to customize how the remote interacts with Alexa. • Audio Settings: Allows for Voice Volume and the Audio Cue levels to be adjusted. •... -
Page 18: Sleep Timers
MX-4000 Complete Control Owner’s Manual Sleep Timers Adjust the screen and button sleep times by pressing the adjacent LCD buttons to increase or decrease the sleep timer. Once the times have been adjusted, press the Save button. Pressing Cancel reverts the remote to the last saved setting. SAVE CANCEL Leaving the remote’s display on... -
Page 19: Power
If the advanced system controller is reset, it defaults to the program’s default location using the Internet. If Internet is not present, the date and time must be entered manually from a URC interface such as the MX-4000. Once the date and time settings have been adjusted, press the Save button. -
Page 20: Brightness
MX-4000 Complete Control Owner’s Manual Brightness Adjust the screen and button brightness by pressing the adjacent LCD buttons to increase or decrease the brightness level. Once the brightness has been adjusted, press the Save button. Pressing Cancel reverts the remote to the last saved setting. High brightness levels may reduce the MX-4000’s CANCEL... -
Page 21: System
MX-4000 Complete Control Owner’s Manual Pickup Turn on or off the remote’s pickup sensor. When enabled, the MX-4000 turns on when the remote is picked up. Select Yes (turn on) or No (turn off). Enabling the pickup sensor may reduce the MX-4000’s SAVE CANCEL battery life. -
Page 22: Factory Default
Owner’s Manual Factory Default Resets the memory of the MX-4000 to the factory settings. All existing programming is erased. The device requires reconfiguration by your certified URC integrator. WARNING! Only use this button when instructed by URC’s Technical Support team. -
Page 23: Specifications
LCD: 5.0” TFT-LCD (720 x 1280) Limited Warranty Statement Touch Window: Captive Touch https://www.urc-automation.com/legal/warranty-statement/ Sound: Mono 1.5W End User Agreement Sensors: Pickup sensor The terms and conditions of the End User Agreement available at https://www.urc-automation.com/legal/end-user-agreement/... - Page 24 Risk of explosion if the battery is replaced by incorrect type. • Dispose of used batteries according to the instructions. • Lithium Polymer batteries are recyclable. For information on local drop-off site, Declaration of Conformity please visit www.rbrc.com or call toll free 1-800-822-8837 https://www.urc-automation.com/legal/DoC/MX-4000...
