Front Panel Description

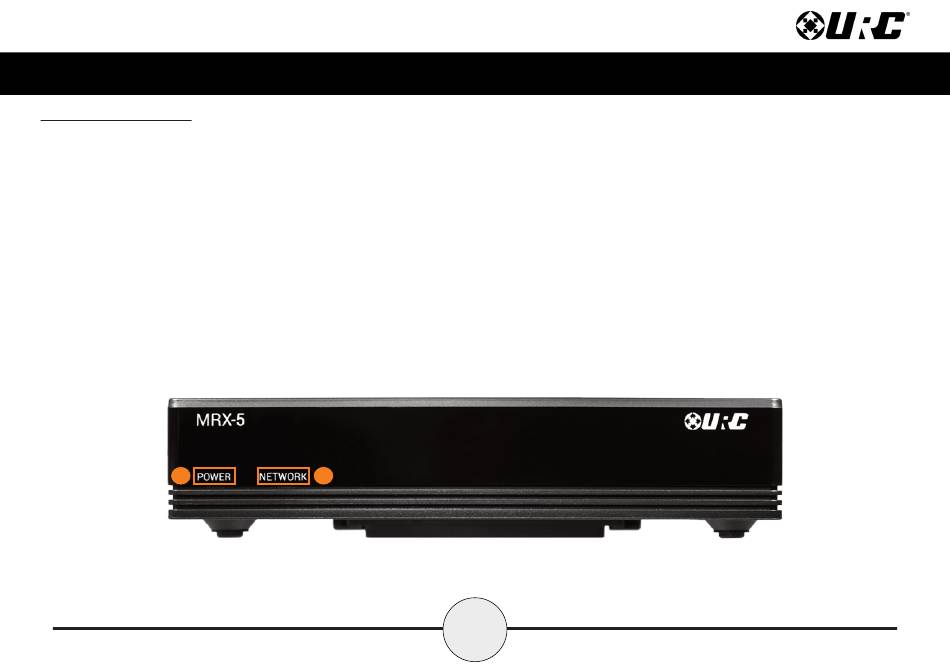

The front panel of the MRX-5 Advanced Network System Controller displays the
following information:
1. Power LED: Indicates three (3) possible states:
■ Solid Blue: The device is receiving power and has successfully
booted up.
■ Blinking Blue: The device is receiving power, but is still initializing.
■ Off: The device is not receiving power.
1 2
2
2. Network LED: Indicates three (3) possible states:
■ Solid Blue: The device is connected to the network and has
received an IP address.
■ Blinking Blue: The device is connected to the network, but has
not yet received an IP address.
This LED blinks blue after a Total Control configuration file has
been downloaded to the device.
■ Off: The device is not connected to the local network.
