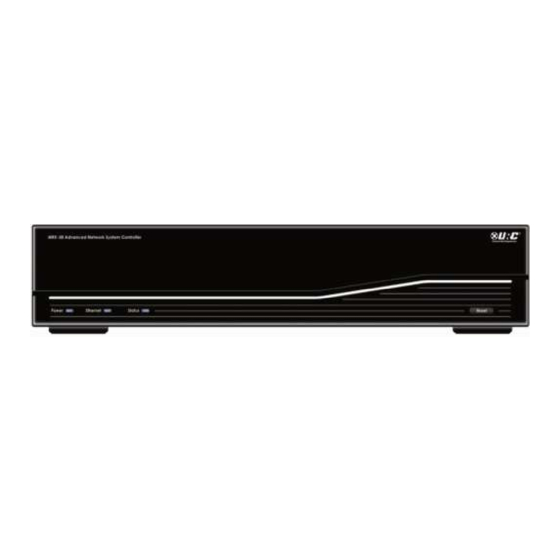

URC Total Control MRX-30 Owner's Manual
  1. Manuals
  2. Brands
  3. URC Manuals
  4. Controller
  5. Total Control MRX-30
  6. Owner's manual

URC Total Control MRX-30 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MRX-30
Total Control
Owner's Manual
MRX-30
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Total Control MRX-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for URC Total Control MRX-30

Summary of Contents for URC Total Control MRX-30

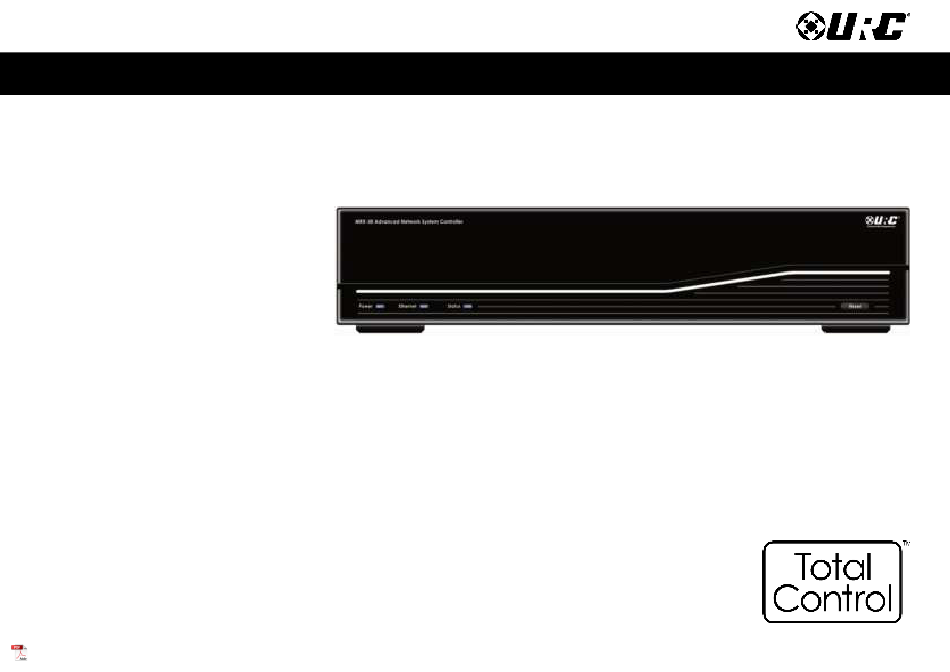

  • Page 1 MRX-30 Total Control Owner’s Manual MRX-30 Owner’s Manual...

  • Page 2: Table Of Contents

    Specifications ....................................................7 Limited Warranty Statement................................................7 Technical Suppor t Toll Free: 800-904-0800 Main: 914-835-4484 techsupport@urc-automation.com H o u r s : 9 : 0 0 a m - 5 : 0 0 p m E S T M - F Rev 1.0...

  • Page 3: Introduction

    MRX-30 Total Control Owner’s Manual Introduction The MRX-30 Advanced Network System Controller controls is designed to meet the needs of large residential or small commercial environments. Only Total Control software, products, and user interfaces are supported by this powerful device. This device is not compatible with Total Control 1.0 legacy products.

  • Page 4: Front Panel Description

    MRX-30 Total Control Owner’s Manual Front Panel Description The front panel consist of two (2) indicator lights that illuminate during usage: 1. Power: Indicates that the MRX-30 is powered when illuminated. 3. Status Light: Two (2) possible states: 2. Ethernet: When the device has valid Ethernet connection, the ■...

  • Page 5: Rear Panel Description

    5. LAN: RJ45 10/100/1000 Ethernet port. 3. Sensors: Six (6) programmable sensor ports, compatible with all 6. IR Outputs: 12 standard 3.5mm IR emitter ports with variable output level URC sensors. adjustment screws 4. Power: Attach the included power supply here.

  • Page 6: Installing The Mrx-30

    1. Connect an Ethernet cable (RJ45) to the rear of the MRX-30 and the onto an available LAN port of the network’s local router (Luxul preferred). 2. A certified URC integrator is required for this step, configure the MRX-30 to a DHCP/MAC reservation within the local router.

  • Page 7: Connecting Ir Emitters

    MRX-30 Total Control Owner’s Manual Connecting IR Emitters IR emitters are used to communicate to AV devices such as cable boxes, televisions, blu-ray players and more. 1. Plug IR Emitters (twelve (12) supplied in the box) into any of the twelve (12) IR outputs available on the rear of the MRX-30.

  • Page 8: Connecting Rs-232 (Serial)

    The MRX-30 can operate equipment via RS-232 communication. The allows discrete serial commands to be triggered from the Total Control system. Connect RS-232 device using URC’s proprietary RS-232 cables. These use either male or female DB-9 connections with standard pin-outs.

  • Page 9: Specifications

    Owner’s Manual Specifications Limited Warranty Statement Network: One 10/100/1000M RJ45 Ethernet port (two LED indicators) https://www.urc-automation.com/legal/warranty-statement/ Weight: 99.15 oz End User Agreement Size: 16.92” (W) x 3.7” (H) x 8.66” (D) The terms and conditions of the End User Agreement available at https://www.urc-automation.com/legal/end-user-agreement/...
  • Page 10 MRX-30 Total Control Owner’s Manual Warning! The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Regulatory Information to the User •...
