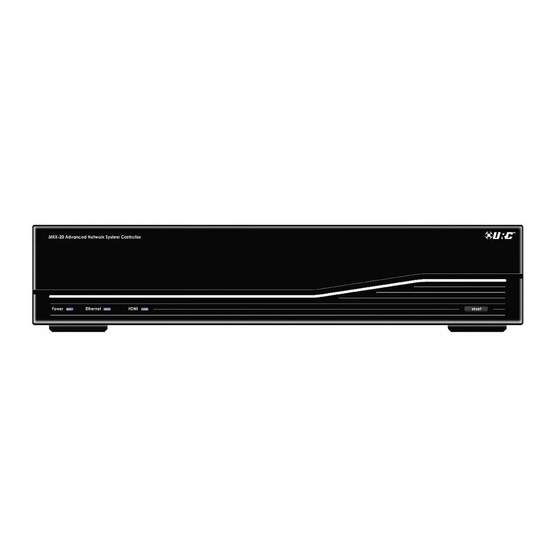

URC MRX-20 Owner's Manual

Advanced network system controller
Hide thumbs Also See for MRX-20:
Table of Contents

Advertisement

Quick Links

Download this manual
Order Number
: GETEC-C1-13-118
Test Report Number
: GETEC-E3-13-032
APPENDIX G
: USER'S MANUAL
EUT Type: Advanced Network System Controller
FCC ID.: OZ5URCMRX20
FCC Part 15 subpart C
1 / 1
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRX-20 and is the answer not in the manual?

Questions and answers

Related Manuals for URC MRX-20

Summary of Contents for URC MRX-20

  • Page 1 Order Number : GETEC-C1-13-118 FCC Part 15 subpart C 1 / 1 Test Report Number : GETEC-E3-13-032 Page APPENDIX G : USER’S MANUAL EUT Type: Advanced Network System Controller FCC ID.: OZ5URCMRX20...
  • Page 2 MRX-20 Advanced Network System Controller Owner’s Manual...
  • Page 3 The information in this manual may be subject to change without prior notice. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.

  • Page 4: Table Of Contents

    MRX-20 Front Panel Descriptions MRX-20 Rear Panel Descriptions Navigating the MRX-20’s On-Screen Menu On-Screen Menu Options Overview Using the On-Screen Menus Adjusting the Settings on the MRX-20 Installing the MRX-20 Specifications USA Limited Warranty Statement Federal Communication Commission Interference Statement...

  • Page 5: Congratulations

    MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Page 1...

  • Page 6: Mrx-20 Front Panel Descriptions

    • Problem: Flashes • Not Connected: Not illuminated. Reset: Press to reset the MRX-20. Resetting the unit will not lose its programming. Press and hold the Reset button for 15 seconds to erase all programming and set the MRX-20 to its original factory condition.

  • Page 7: Mrx-20 Rear Panel Descriptions

    Power Network IR Outputs HDMI IN HDMI OUT Power: Plug the included Power cable into the rear of the MRX-20. Network: Communicate over the Network to a MRX-20 using an Ethernet cable. USB: For future use! IR Outputs: Ten standard 3.5mm IR emitter ports with individual output level attenuators.

  • Page 8: Navigating The Mrx-20'S On-Screen Menu

    ETWORK YSTEM ONTROLLER Navigating the MRX-20’s On-Screen Menu Navigating through the MRX-20’s on-screen interface is very simple. Control the on-screen menu’s using URC’s Umotion remotes (TRG-100/200). While moving the remote, notice that the on-screen cursor mimic’s your movements. Place the cursor over a button to reveal its hovered state and select.

  • Page 9: On-Screen Menu Options Overview

    MRX-20 A DVANCED ETWORK YSTEM ONTROLLER On-Screen Menu Options Overview Quick Bar Menu The Quick Bar menu was designed to contain up to ten of the most needed commands for the device that is being used. Your Custom Professional programs these commands, so any changes to your current view will need to be adjusted by your installer.
  • Page 10 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Favorites Menu Use this menu for instant access to your Favorite Channels, like ABC, HBO, etc... These channels are previously set by your custom installer. Main Menu This Main Menu will allow you to control any “connected device”...

  • Page 11: Using The On-Screen Menus

    MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Using the On-Screen Menus Quick Bar Menu While watching or listening to a device, such as a Cable or CD, access the Quick Bar menu with a TRG-100/200 remote by pressing the Umotion button. The Quick Bar menu opens. Move the remote around the on-screen interface to reveal the on-screen cursor.
  • Page 12 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Device Menu While watching or listening to a device, such as a Cable or CD, access the Device menu with a TRG-100/200 remote by pressing the Umotion button or the Full Screen button from the Quick Bar menu.
  • Page 13 Shortcuts Menu There are a maximum of six (6) shortcuts per room location. Remember, the MRX-20 can access any room in the Total Control system regardless of its physical location. Only items that appear in the currently selected room are available to be added to the Shortcuts menu.
  • Page 14 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Editing Shortcuts To add devices/activities to Shortcuts, select the Add/Edit button in the Shortcut menu. This opens the Shortcuts Add/Edit screen, which allows the user to scroll through all of the devices/activities available to that room.
  • Page 15 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Favorites Menu While watching a device such as Cable or Satellite, press the Umotion button on the TRG-100/200 remote. Press the Favorites button, from either the Quick Bar or Device menu, to access the favorite channel list.
  • Page 16 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Main Menu While using a TRG-100/200 remote, press the Main button to access the Main Menu’s on-screen interface. Pressing the Umotion button activates the remote’s motion control. Move the remote around the on-screen interface to reveal the on-screen cursor.
  • Page 17 The current room portion of the Title Bar shows the room that the MRX-20 is controlling. Remember, in a Total Control system, the MRX-20 will default to control the room in which it is placed, using the Rooms Menu will allow it to control any other room in the system.
  • Page 18 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER • If an activity is being performed (like DVD or Cable) in the selected room, the Now Playing section will display the activity. If an activity is being performed in the selected room, the Now Playing bar will describe the activity.
  • Page 19 Sunset Time: Updated at midnight every day, this shows the sunset time for the next day. URC Thermostat Temperature: If a THZ-100 (URC’s thermostat) is included in your home, this shows the current temperature status based upon the internal sensor, optional wired sensor, or the average temperature of both.
  • Page 20 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Rooms Menu The Rooms Menu offers the user control of every room throughout the home. It is now easier to turn off lights in other rooms while in the Master Bedroom. The Rooms Menu is used to: •...
  • Page 21 “going on” in that room. Selecting a Room (Room Control) Selecting any room from the room list will allow the MRX-20 to control that room, as if it were physically in that room.
  • Page 22 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Linking Rooms (DMS Audio only) Selecting the Link Rooms button will open up the Link Rooms screen with the current room already selected. Only rooms/areas that are part of the DMS family of products will appear.
  • Page 23 Selecting the Room Options button for a room will cause the menu to expand and offer the user various options to control the room. • Lights Off: If URC controlled lights are located in the selected room, the Options menu will display a light bulb icon.

  • Page 24: Adjusting The Settings On The Mrx-20

    YSTEM ONTROLLER Adjusting the Settings on the MRX-20 You can adjust the settings of the MRX-20, by pressing and holding the Date and Time area for five seconds. When you do, the screen will change to the Settings menu. Press and hold the Date and Time for 5 seconds to open the Settings menu.
  • Page 25 Select one of the radio buttons found on the right side of each property: • Use Generic Screen Saver: Uses URC’s generic slide show after a certain amount of time specified in Turn On After.
  • Page 26 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER General The General settings screen allows for setting the Date, Time and Temperature scale (Fahrenheit/Celsius). To view the rest of the General settings menu, be sure to move the remote up or down or press the arrow with the TRG-100/200 remote.
  • Page 27 Motion Speed Adjust the TRG-100/200 motion speed by selecting one of the options (slow, medium or fast) on the MRX-20 user interface. Selecting OK will accept any changes made and return to the Main menu, as well as selecting Exit will return the user to the Main menu, without incorporating any changes.
  • Page 28 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Network This option will show important information about the current network, its settings and give the ability to edit the IP address of the MRX-20. The Network Information screen will display the status of the network connection (connected, not connected), current address type (DHCP or Static), IP address, Subnet Mask, Gateway and DNS.
  • Page 29 ONTROLLER System Although none of the information can be modified, these System Pages will show important information about your MRX-20. These pages should only be needed by a custom install professional, or a technical support representative. Selecting Exit will return the user to the Main menu.

  • Page 30: Installing The Mrx-20

    Wires are connected to the detachable connectors for use of the relays. Network Installation 1. Connect an Ethernet cable (RJ45) to the rear of the MRX-20 and into the network router or switch. 2. Connect your laptop into the same network router as the MRX-20.
  • Page 31 The MRX-20 can operate equipment via RS-232 communication. This allows discrete serial commands to be triggered from a Total Control remote and sent from the MRX-20 over the network connection. The signal is then sent to the device over proprietary URC RS-232 cables.
  • Page 32 ONTROLLER Using Power/Video Sensors with the MRX-20 The MRX-20 can use either a Video (composite) or Voltage signal to determine the power status of the equipment it controls. This can then be used to alter the function of a Macro by using IF/ELSE statements in the programming software.
  • Page 33 ONTROLLER Wiring to the Relay on the MRX-20 The MRX-20 has a Relay with three contacts, NO, NC, and COM. These can be used as dry contacts or to send a current to an electrical switch or motor for use with screens, blinds, curtains, etc.

  • Page 34: Specifications

    MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Specifications -Microprocessor : ARM Cortex-A8 Core -Memory : 512MByte -Input & Outputs: l IR : Ten adjustable output l USB : One (for future use) l Ethernet : One 10/100 RJ45 port (Indicator 2LED)

  • Page 35: Usa Limited Warranty Statement

    MRX-20 A DVANCED ETWORK YSTEM ONTROLLER USA Limited Warranty Statement Your Universal Remote Control, when delivered to you in new condition, is warranted against defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this product against defects in material or workmanship for a period of one (1) year and as set forth below.
  • Page 36 MRX-20 A DVANCED ETWORK YSTEM ONTROLLER LIMITATION OF REMEDIES UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL...

  • Page 37: Federal Communication Commission Interference Statement

    MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 38: Declaration Of Conformity

    MRX-20 A DVANCED ETWORK YSTEM ONTROLLER Declaration of Conformity Company Name OH SUNG ELECTRONICS CO., LTD. Company Address #181 GONG DAN-DONG, GUMI, GYEONG BUK, REPUBLIC OF KOREA Contact Information Phone: +82-54-468-7281, Fax: +82-54-461-8368 Brand Name UNIVERSAL remote control Product Name...
  • Page 39 Page 35...
  • Page 41 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0141A Rev 01...
