- Page 1 Order Number : GETEC-C1-21-309 FCC Part 15 Subpart B 1 / 1 Test Report Number : GETEC-E3-21-019 Page APPENDIX H : USER’S MANUAL EUT Type: BASE-STATION FCC ID.: 2AT6QMRX12...
- Page 2 MRX-12 Total Control Owner’s Manual MRX-12 Owner’s Manual...
-
Page 3: Table Of Contents
Specifications ....................................................7 Limited Warranty Statement................................................7 Technical Suppor t Toll Free: 800-904-0800 Main: 914-835-4484 techsupport@urc-automation.com H o u r s : 9 : 0 0 a m - 5 : 0 0 p m E S T M - F Rev 1.1... -
Page 4: Introduction
MRX-12 Total Control Owner’s Manual Introduction The MRX-12 Advanced Network System Controller controls is designed to meet the needs of large residential or small commercial environments. Only Total Control software, products, and user interfaces are supported by this powerful device. This device is not compatible with Total Control 1.0 legacy products. -

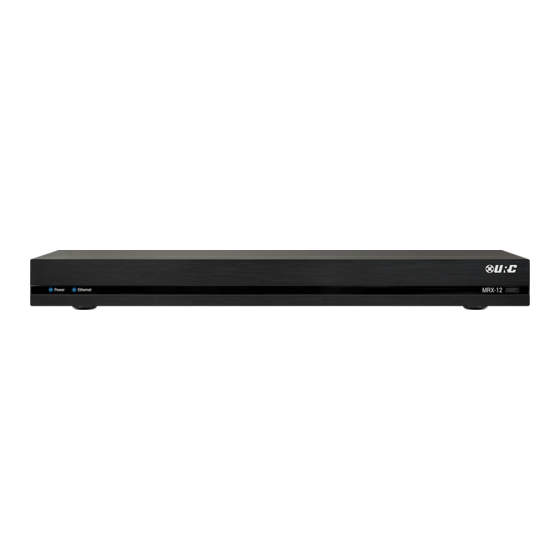

Page 5: Front Panel Descriptions
MRX-12 Total Control Owner’s Manual Front Panel Descriptions The front panel consist of two (2) indicator lights that illuminate during usage: 1. Power: Indicates that the MRX-12 is powered when illuminated. 2. Ethernet: When the device has a valid Ethernet connection the indicator light remains a solid blue. -
Page 6: Rear Panel Description
7. Sensors: Two (2) sensor ports that allow the programming of state 3. LAN: RJ45 10/100/1000 Ethernet port. dependent and triggered macros. Compatible with all URC sensors. 4. IR Outputs: Six (6) standard 3.5mm IR emitter ports with two output 8. -
Page 7: Installing The Mrx-12
1. Connect an Ethernet cable (RJ45) to the rear of the MRX-12 and the onto an available LAN port of the network’s local router (Luxul preferred). 2. A certified URC integrator is required for this step, configure the MRX-12 to a DHCP/MAC reservation within the local router. -
Page 8: Connecting Ir Emitters
MRX-12 Total Control Owner’s Manual Connecting IR Emitters IR emitters are used to communicate to AV devices such as cable boxes, televisions, blu-ray players and more. 1. Plug IR Emitters (six (6) supplied in the box)into any of the six (6) IR outputs available on the rear of the MRX-12. -
Page 9: Connecting Rs-232 (Serial)
The MRX-12 can operate equipment via RS-232 communication. The allows discrete serial commands to be triggered from the Total Control system. Connect RS-232 device using URC’s proprietary RS-232 cables. These use either male or female DB-9 connections with standard pin-outs. -
Page 10: Specifications
URC equipment Sensor: Two (2) programmable sensor ports and/or the URC software fails to so comply, URC shall, at its own expense, take all reasonable measures to promptly cause such to comply. - Page 11 This limited warranty specifically excludes the URC equipment sold by unauthorized resellers. In the event of any warranty claim, URC will, at its sole option, repair the URC equipment using new or comparable rebuilt parts, or exchange the URC equipment With the exception of URC’s IR-only, broad-based consumer remotes, none of Page...
- Page 12 The terms and conditions of the End User Agreement available at www.universalremote.com/eua.php shall apply. IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO DATA, COMPUTER SYSTEMS OR COMPUTER PROGRAMS. URC’S LIABILITY, IF ANY, FOR Federal Communication Commission Interference Statement...
- Page 13 MRX-12 Total Control Owner’s Manual Warning! Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Note : The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
