URC MRX-10 Owner's Manual

Advanced network ystem controller
Hide thumbs Also See for MRX-10:
Table of Contents

Advertisement

Quick Links

Download this manual
Order Number
: GETEC-C1-10-181
Test Report Number
: GETEC-E3-10-093
APPENDIX H
: USER'S MANUAL
EUT Type: RF Remote Controller
FCC ID.: OZ5URCMRX10
FCC Part 15 subpart C
1 / 1
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRX-10 and is the answer not in the manual?

Questions and answers

Related Manuals for URC MRX-10

Summary of Contents for URC MRX-10

  • Page 1 Order Number : GETEC-C1-10-181 FCC Part 15 subpart C 1 / 1 Test Report Number : GETEC-E3-10-093 Page APPENDIX H : USER’S MANUAL EUT Type: RF Remote Controller FCC ID.: OZ5URCMRX10...
  • Page 2 MRX-10 Owners Manual Advanced Network ystem Controller...
  • Page 3 MRX-10 Owners Manual ©2010 Universal Remote Control,Inc. The information in this manual is copyright protected.No part of this man-ual may be copied or reproduced in any form without prior written consentfrom Universal Remote Control,Inc. UNIVERSAL REMOTE CONTROL,INC.SHALL NOT BE LIABLE FOR OPER- ATIONAL,TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
  • Page 4 THEDIGITALMULTIZONEAMPLIFIER Introduction Features and Benefits Parts Guide Front and Rear Panel Descriptions Specifications USA Limited Warranty Statement Federal Communication Commission Interference Statement Regulatory Information to the user Declaration of Conformity...

  • Page 5: Features And Benefits

    MRX series connected devices throughout the entire home. Press a button on a Total Control remote or keypad to issue a command from the MRX-10 to turn off the lights in every room all while watching a movie. View the artist name, song title and album art your child is listening to in their room from a Total Control remote or keypad.

  • Page 6: Front And Rear Panel Descriptions

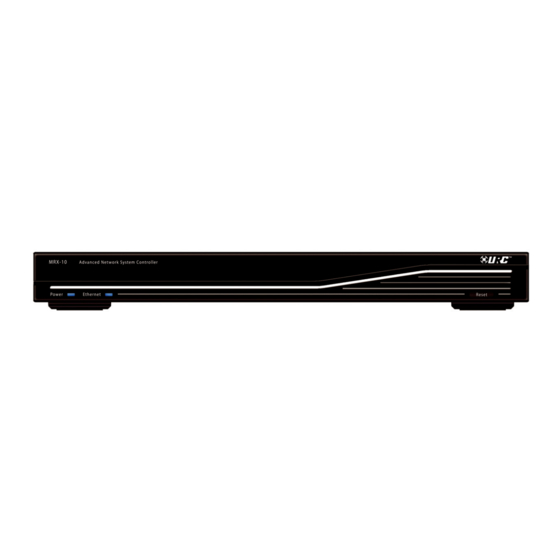

    Power LED Ethernet LED Total Control llumination Reset Power LED: Indicates that the MRX-10 is powered on when lit. Ethernet LED:Indicates the network connectivity status of the MRX- 10. On=Connected, Off=not connected. Total Control Illumination: Attractive, adjustable accent lighting. Reset: Press for one second and release to reboot the MRX-10.

  • Page 7: Rear Panel

    30V/.5A. Sensors: Four sensor ports allow programming of state dependent and triggered macros. Compatible with URCVideo (URC part: VID) and voltage (URC part: VS-100) sensors. 12V OUT: Two programmable 12V/0.2A outputs. Each may be pro- grammed to turn on, off or momentarily toggle its output.

  • Page 8: Specifications

    IR: Eight adjustable output USB: One (for future use) Ethernet: One 10/100 RJ45 port (Indicator 2LED) RS-232: Four, supporting TX, RX and GND. Sensor: Four, supporting Video or Voltage sensing (requires URC sensors). Relays: NO, NC or COM Frequency: 2.4GHz (for MS-780) Range: 50 to 100 feet, depending upon the environment Power Supply: 12v DC 3.5A External Power Supply...

  • Page 9: Usa Limited Warranty Statement

    MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER USA Limited Warranty Statement Your Universal Remote Control, when delivered to you in new condition, is warranted against defects in materials or work- manship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this product against defects in material or workman- ship for a period of one (1) year and as set forth below.

  • Page 10: Federal Communication Commission Interference Statement

    MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a res- idential installation.

  • Page 11: Regulatory Information To The User

    ) marked power adaptor & same ratings described on the product label (12Vdc,3.5A). Declaration of Conformity “Hereby, Universal Remote Control Inc. declares that this MRX-10 is in compliance with the Essential requirements and other relevant pro- visions of Directive 1999/5/EC.”...

  • Page 12: Declaration Of Conformity

    MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER Declaration of Conformity Company Name Universal Remote Control Inc. Company Address 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A www.universalremote.com Contact Info rmation Phone: (914)835-4484 Fax: (914)835-4532 Brand Name UNIVERSAL remote control Product Name NETWORK BASE STATION Model Name MRX-10 This product herewith complies with the requirements of EMC Directive (2004/108/EC) and R&TTE Directive(1995/5/EC) issued bythe Commission of the European Community...
  • Page 13 OCE-0000A Rev 01...
