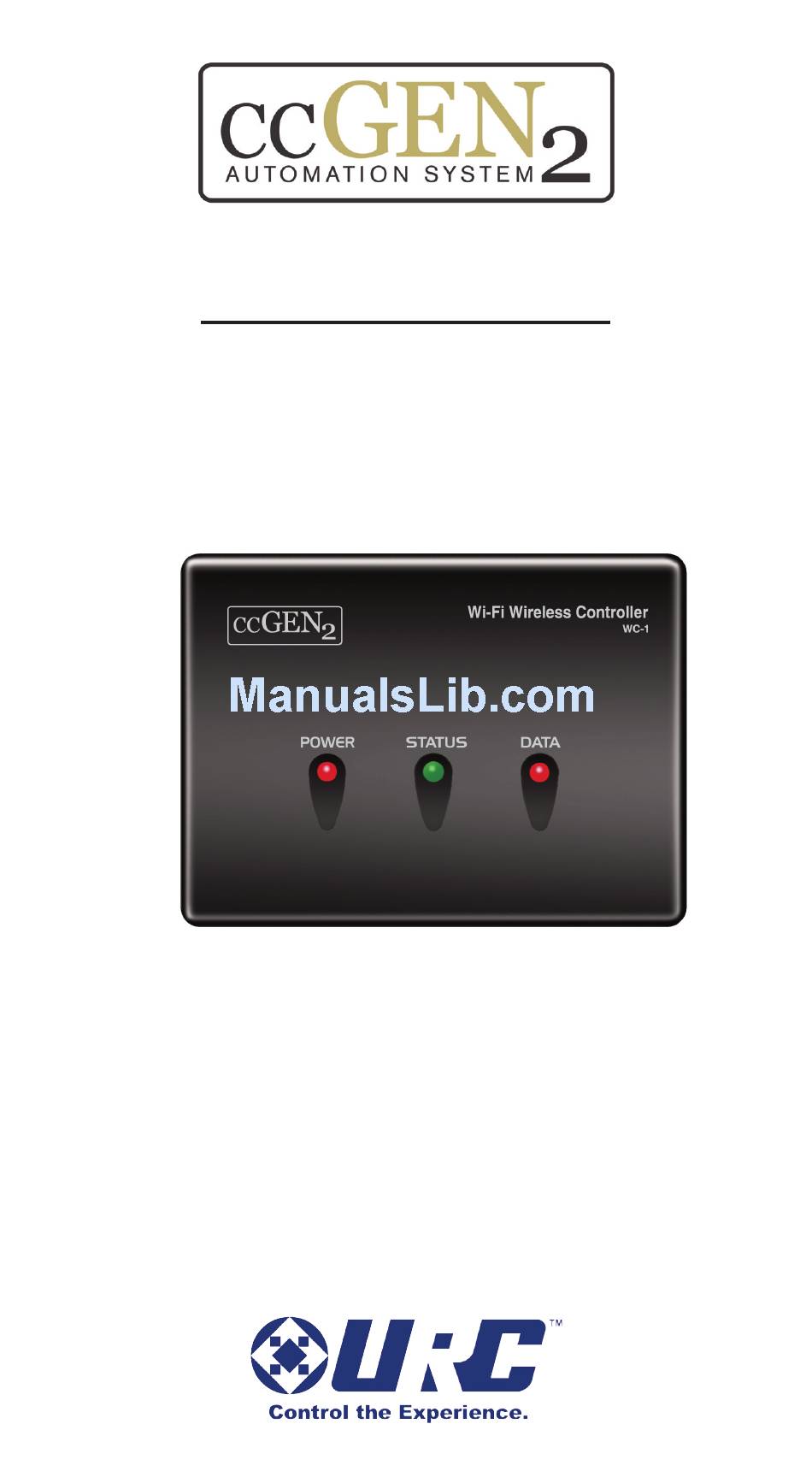

- Page 1 Owner’s Manual WC-1 Wireless Controller...
- Page 2 IN THIS MANUAL. The information in this Owner’s Manual may be subject to change without prior notice. ccGEN2 is a registered trademark of Universal Remote Control, Inc. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.
-
Page 3: Table Of Contents
ABLE ONTENTS Introduction Features and Benefits Parts Guide Front, Rear and Bottom Panel Descriptions Network Installation Network Discovery & Download Optimizing IR Flasher Levels Overview of IR Routing Limited Warranty Statement End User Agreement Specifications Federal Communication Commission Interference Statement Declaration of Conformity... -
Page 4: Introduction
Receives commands over the network from an CP-1 Central Processor and then sends IR signals to control your components. Compact Size The small size of the WC-1 allows it to easily fit behind devices or into places where a traditional base station would not. Parts Guide... -
Page 5: Front, Rear And Bottom Panel Descriptions
IR Blaster Power LED: The Power LED illuminates when the unit is powered. Status LED: When the WC-1 powers up, both the Status and Data LEDs blink. When a network connection is made, the Status LED color will vary depending upon its “connected state”: ●... -
Page 6: Rear Panel
WC-1 W IRELESS ONTROLLER Rear Panel The rear panel ports are: DC 12V Power: Plug in the included 12V DC 1A power supply. IR Outputs (Ports 1-4): Connect an included 3.5mm IR emitter to each of the four IR outputs. Adjust the IR output signal strength for port 1 using the attenuator located on the bottom of the unit. -
Page 7: Bottom Panel
Pressing and holding the Reset button for 15 seconds, will factory default the WC-1, and return the unit back to its original unprogrammed state. Mac Address Sticker: The MAC Address (12 numbers) identifies this wireless device when connected to the network. -
Page 8: Network Installation
WARNING!! Before proceeding, a Custom Professional is required to install and configure your WC-1. The WC-1 is a network base station that allows full control of your components with the use of ccGEN2 Central Processor and compatible interfaces. Once installed on the network, and a button is pressed on an interface, a command is transferred over the customer’s network to the CP-1 Central Processor, which in turn is... -
Page 9: Network Discovery & Download
WC-1. 1. Open a new or current project. In Step 3: Add URC Devices, add an WC-1 to a room included in your project which represents the physical location of the unit. 2. In Step 6: Network Setup, discover the WC-1 using the same process used for other Total Control network products in the project. -
Page 10: Optimizing Ir Flasher Levels
WC-1 W IRELESS ONTROLLER Optimizing IR Flasher Levels Test a few commands for each component before fixing the flasher in place on the front panel of a device. Since TiVo, Satellite Receivers and Cable Boxes are all extremely sensitive to IR overload or saturation, you should test them thoroughly. -
Page 11: Overview Of Ir Routing
There are several considerations to take into account when you are installing an WC-1 to control an array of components: 1. When connecting a flasher from the WC-1 to your component make sure to notate the IR outputs being used. Program the same port designations into the ccGEN2 program. -
Page 12: Limited Warranty Statement
Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for one (1) year from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America. - Page 13 WC-1 W IRELESS ONTROLLER SKILL AND CARE, OR OUTCOME OR RESULTS. WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II) MODIFICATIONS, (III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE WARRANTY PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY CLAIM PROCEDURE.
-
Page 14: End User Agreement
WC-1 W IRELESS ONTROLLER equipment are authorized for online internet sales. Buying URC’s PC programmable remotes or any of our ccGEN2™ whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either. -
Page 15: Specifications
WC-1 W IRELESS ONTROLLER Specifications CPU : ARM 32-bit Cortex-M3(120MHz) Memory : 128Kbyte SRAM, 768Kbyte Flash Macro Capability : Up to 255 steps each IR Range(Line of Sight via Infrared) : 30 to 50 feet, depending on the environment RF Range(radio frequency) : 50 to 100 feet, depending upon the environment Wi-Fi : IEEE 802.11 b/g/n... -
Page 16: Federal Communication Commission Interference Statement
WC-1 W IRELESS ONTROLLER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 17: Declaration Of Conformity
WC-1 W IRELESS ONTROLLER Declaration of Conformity Company Name OH SUNG ELECTRONICS CO., LTD. Company Address #181 GONG DAN-DONG, GUMI, GYEONG BUK, REPUBLIC OF KOREA Contact Information Phone: +82-54-468-7281, Fax: +82-54-461-8368 Brand Name UNIVERSAL remote control Product Name Wireless Controller... - Page 18 Page 15...
- Page 20 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0132D Rev 01...
