Ltech LT-312RF Quick Start Manual

LTECH

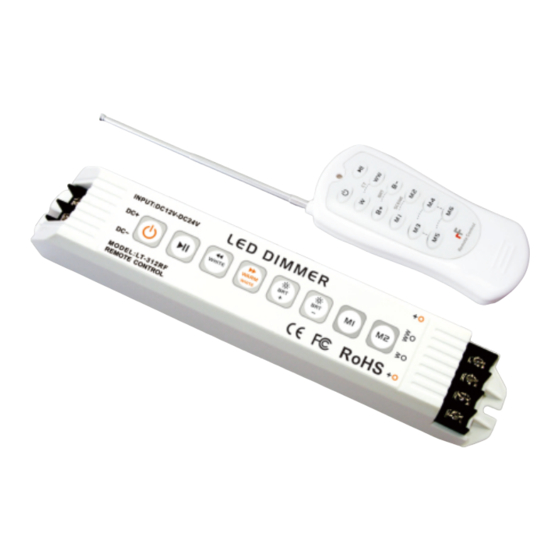

LT-312RF
LED Dim controller
ISO9001:2008
LT-312RF LED controller dedicated to adjust the LED lights' color temperature and
brightness. You can change light environment and add life amuse according to your
own moods and preferences.
LT-312RF adopts advanced PWM (Pulse Width Modulation) digital dimming technology ,
PC engineering plastic, soft-touch button control and exquisite appearance. It can be
controlled by the buttons on the controller and also by RF remote control, which widely
used to control the LED decorative lights that require color temperature adjustment,
such as LED light strip, LED panel lights, LED downlight.
Note: LT-312RF can be connected to our constant current power repeater to control
high-power LED lights.

1. Technical specs

LT-312RF
P ower supply chosen
Input Power
Max current load
Max output power
Dimming range
Remote controlling distance
Working temperature
Dimension
Package Size
Weight (G.W)
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-312RF LED Dim Controller Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC12V～DC24V
5A/CH×2CH Max 10A
120W/240W(12V/24V)
5~100%
100m
-30 -55 ℃ ℃
L211×W40×H30(mm)
L313×W50×H32(mm)
230g
1
Tel: +86 756 620 8823
LTECH

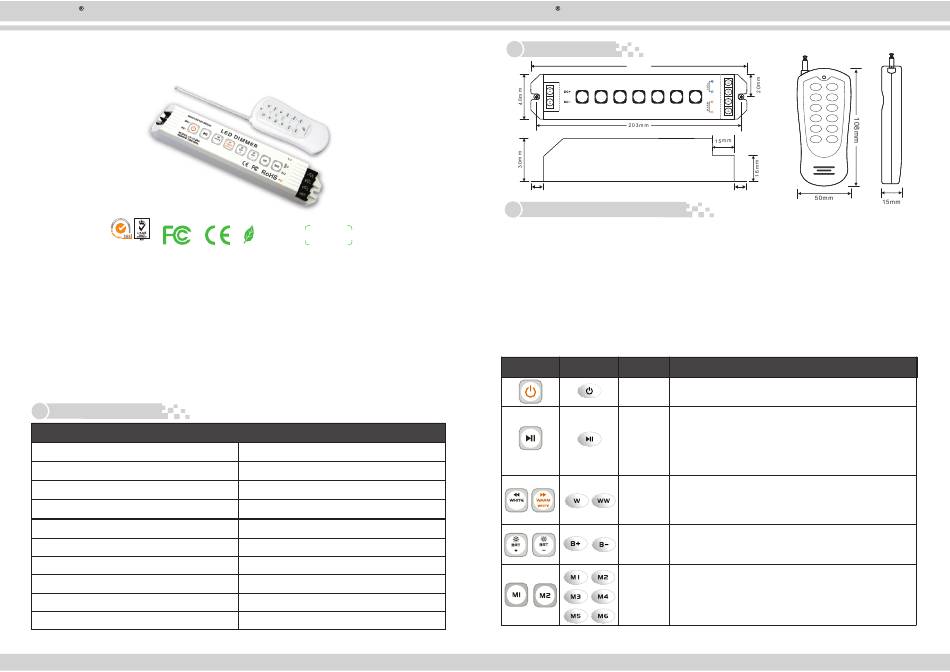

2. Product size
211mm
LED DIMMER
MODEL:LT 312RF -
REMOTE CONTROL
10mm
3. Operation instructions
There are 8 function keys on the controller:
ON/OFF, PAUSE WHITE WARME/WHITE BRT+ BRT- M1 M2 , ,
The learning of remote control :
:
Learning ID Press button ON/OFF on the controller for 3 seconds, it is on the state
of addressing when RF green indicator light is on. Then press any button on remote
control, the indicator light turns off, the controlling between the remote control and
controller is activated.
Cancelling ID: Press the ON / OFF key over 5 seconds, The RF green indicator light
is on and then off, Press any button on remote control, the RF green indicator light
start flickering, it means the controlling between remote control and controller is
cancelled.
Remote
Controller sign Button
control sign
ON/OFF Turn on/off the controller(Turn on/off the LED light).
Press the button shortly, play or pause the gradual
change from the low color temperature to high color
PLAY/
temperature. In this process, press the BRT+, BRT-
PAUSE
to change the brightness.
Other function: Press the key in 3 seconds ,the
buzzer can be on or off.
Press these two keys to increase or decrease the
WHITE
LED color temperature.
WARM
Keep Pressing to adjust the color temperature
WHITE
continuously.
Press these two keys to increase or decrease the
BRT+
LED brightness.
BRT-
Keep Pressing to adjust the brightness continuously.
Press the key over 3 seconds, the controller will save
the present function mode automatically. It is convenient
for the user to save the changing mode or static
DIY
brightness state that he like. The controller has M1,
M2 2 keys and the remote control has M1 ~ M6 6 keys.
Fax: +86 756 620 8833 LT@LTECHONLINE.COM
LT-312RF LED Dim Controller Manual
10mm
, , , ,
Description
2
