2 4G
LED
RGB Controller
Main Characteristics
V3

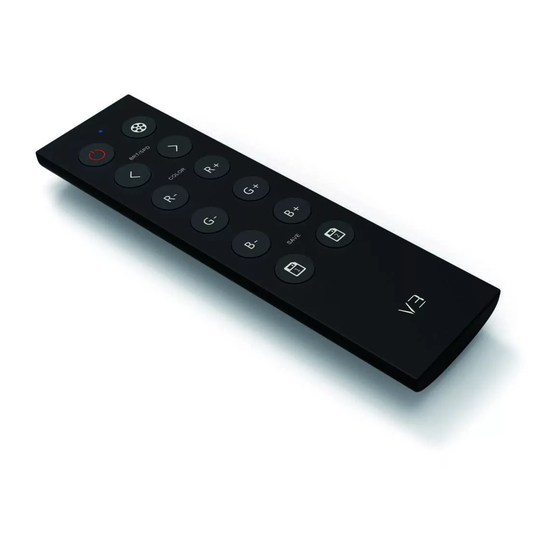

Remote Control
RF RGB
RGB
Remote Option:
W
orking Voltage
:
3Vdc (Battery CR2032）
Wireless Frequency:
2.4GHz
Working Temperature:
-30 ~55
Package Size:
L150×W46×H18(mm)
Weight(G.W.):
85g
R4-3A
CV Receiver
Input Voltage:
5~24Vdc
Max Current Load:
3A
× 4CH Max. 12A
Max Output Power:
60W/144W/288W(5V/12V/24V)
Working Temperature:
-30 ~55
Package Size:
L127×W35×H24(mm)
Weight(G.W.):
60g
R4-5A
CV Receiver
Input Voltage:
5~24Vdc
Max Current Load:
5A
× 4CH Max. 20A
Max Output Power:
100W/240W/480W(5V/12V/24V)
Working Temperature:
-30 ~55
Package Size:
L178×W48×H33(mm)
Weight(G.W.):
150g
Note: Receiver is sold separately.
Dimensions
V3
Holder
R4-CC CC Receiver
Input Voltage:
Output Voltage:
Output Current:
Output Power:
Working Temperature:
Package Size:
Weight(G.W.):
R4-5A/R4-CC
RGB
12~48Vdc
3~46Vdc
CC 350/700/1050mA×4CH
1.05W~48.3W×4CH Max 193.2W
-30 ~55
L178×W48×H33(mm)
165g
R4-3A
www.ltech-led.com
1
Advertisement
Related Manuals for Ltech V3
Summary of Contents for Ltech V3
- Page 1 Max Output Power: 100W/240W/480W(5V/12V/24V) Output Current: CC 350/700/1050mA×4CH Working Temperature: -30 ~55 1.05W~48.3W×4CH Max 193.2W Output Power: Package Size: L178×W48×H33(mm) Working Temperature: -30 ~55 Weight(G.W.): 150g Package Size: L178×W48×H33(mm) Weight(G.W.): 165g Note: Receiver is sold separately. Dimensions Holder R4-5A/R4-CC R4-3A www.ltech-led.com...
- Page 2 CV Power Supply CV Power Supply CV Power Supply 5~24Vdc 5~24Vdc 5~24Vdc Attention: Please replace the battery if the remote becomes insensitive or control distance is shortened. Please take out the battery for long time unused. Update time 2016 09 29 www.ltech-led.com...
