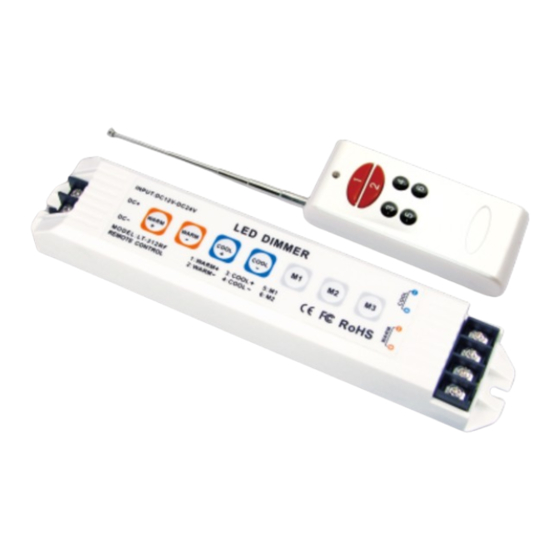

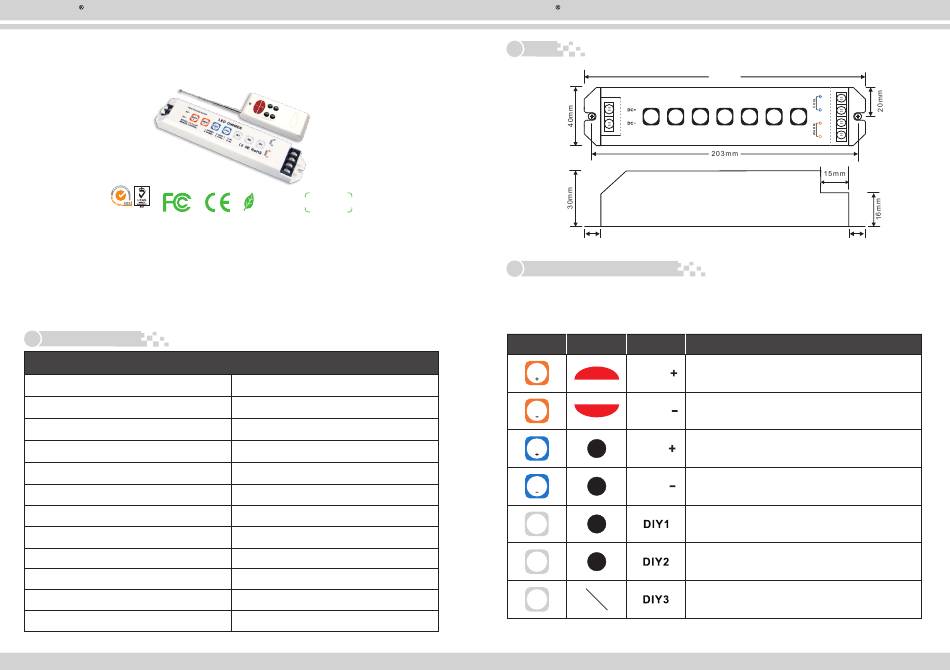

LT-312RF is a multi-functional LED controller and dedicated to adjust the color temperature of
LED light, It can change our lighting environment and atmosphere according our mood at
anytime, increase our life interests.
LT-312RF adopted the most advanced PWM (Pulse-Width Modulation) controlling technology at
present. With a ABS engineering plastic housing, soft-touch function button and exquisite
appearance, can control the LED light through the buttons on the controller and the RF remote
control, widely used to on the LED lights which need color temperature adjustment, such as LED
strip, LED panel, LED Down light etc.
1. Technical Specs
LT-312RF
Power supply chosen
Input Power
Max current load
Output power max
Grey scale
Remote controlling distance
Speed
BRT adjust
Working temperature
Dimension
Package Size
Weight (G.W)
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-312RF LED Dim Controller Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC12V～DC24V
5A/CH 2 H × C Max 10A
120W/240W(12V/24V)
256 levels
Credible 50meters
8 levels
64 levels
℃ ℃
-30 -55
L211×W40×H30(mm)
L293×W43×H33(mm)
210g
1
Tel: +86 756 620 8823
LTECH
2. Size
MODEL:LT 312RF -
REMOTE CONTROL
10mm
3. Operation instructions
Controller has 7 function buttons:
WARM+, WARM-, COOL+, COOL-, M1, M2, M3.
Controller sign Remote control sign
Button
1
WARM
WARM
2 WARM
WARM
3 COOL
COOL
4 COOL
COOL
5
M1
6
M2
M3
Fax: +86 756 620 8833
LT@LTECHONLINE.COM
LT-312RF LED Dim Controller Manual
211mm
LED DIMMER
10mm
Description
Warm color temperature plus button
WARM+：
Press and hold to increase continuously
Warm color temperature minus button
WARM-：
Press and hold to decrease continuously
cool color temperature plus button
COOL+：
Press and hold to increase continuously
Cool color temperature minus button
COOL-：
Press and hold to decrease continuously
DIY1： color temperature storing key 1
DIY2： color temperature storing key 2
color temperature storing key 3
DIY3：
