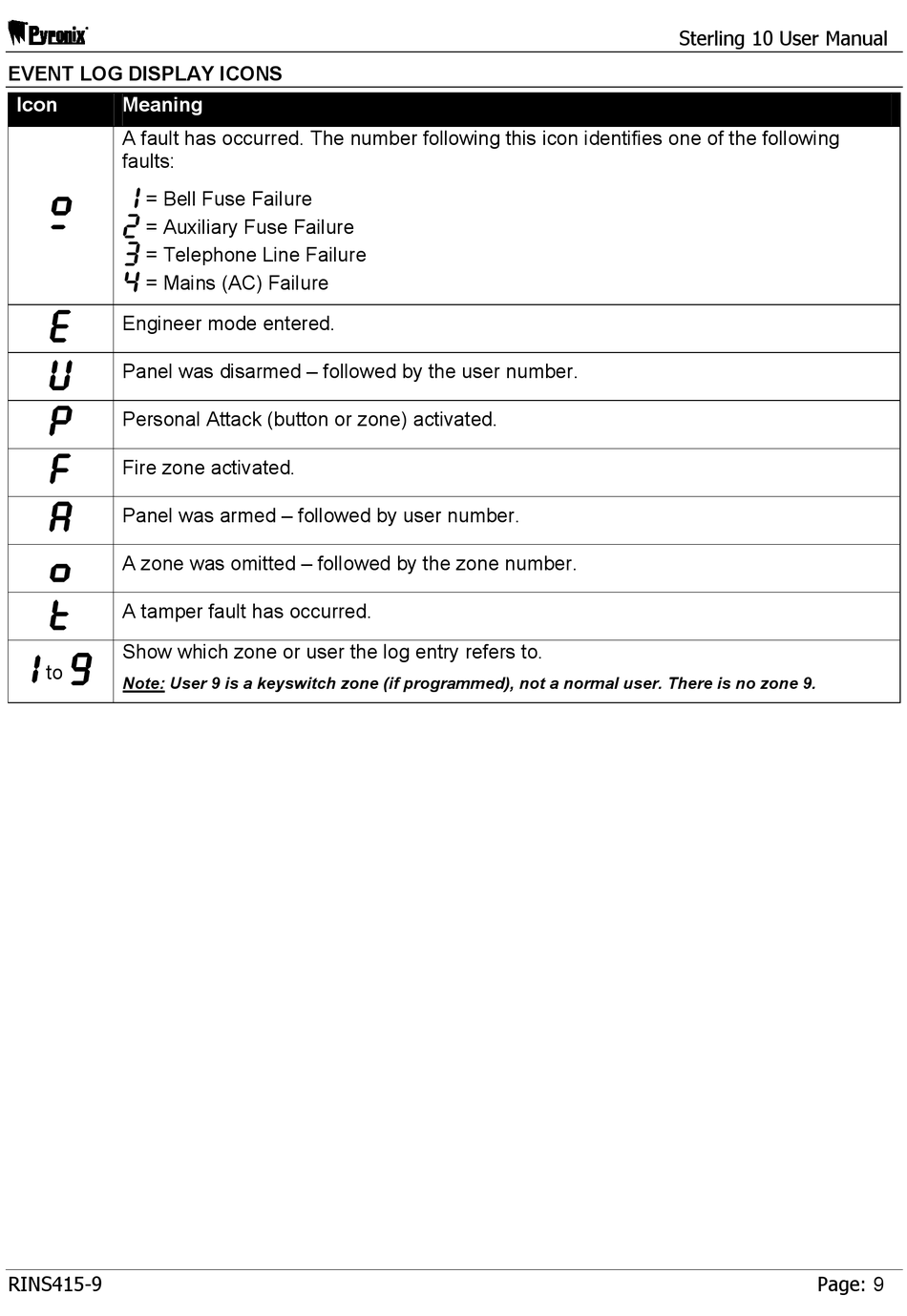

EVENT LOG DISPLAY ICONS
Icon Meaning
A fault has occurred. The number following this icon identifies one of the following
faults:
= Bell Fuse Failure
= Auxiliary Fuse Failure
= Telephone Line Failure
= Mains (AC) Failure
Engineer mode entered.
Panel was disarmed – followed by the user number.
Personal Attack (button or zone) activated.
Fire zone activated.
Panel was armed – followed by user number.
A zone was omitted – followed by the zone number.
A tamper fault has occurred.
Show which zone or user the log entry refers to.
to
Note: User 9 is a keyswitch zone (if programmed), not a normal user. There is no zone 9.
