Development tools
AN2752

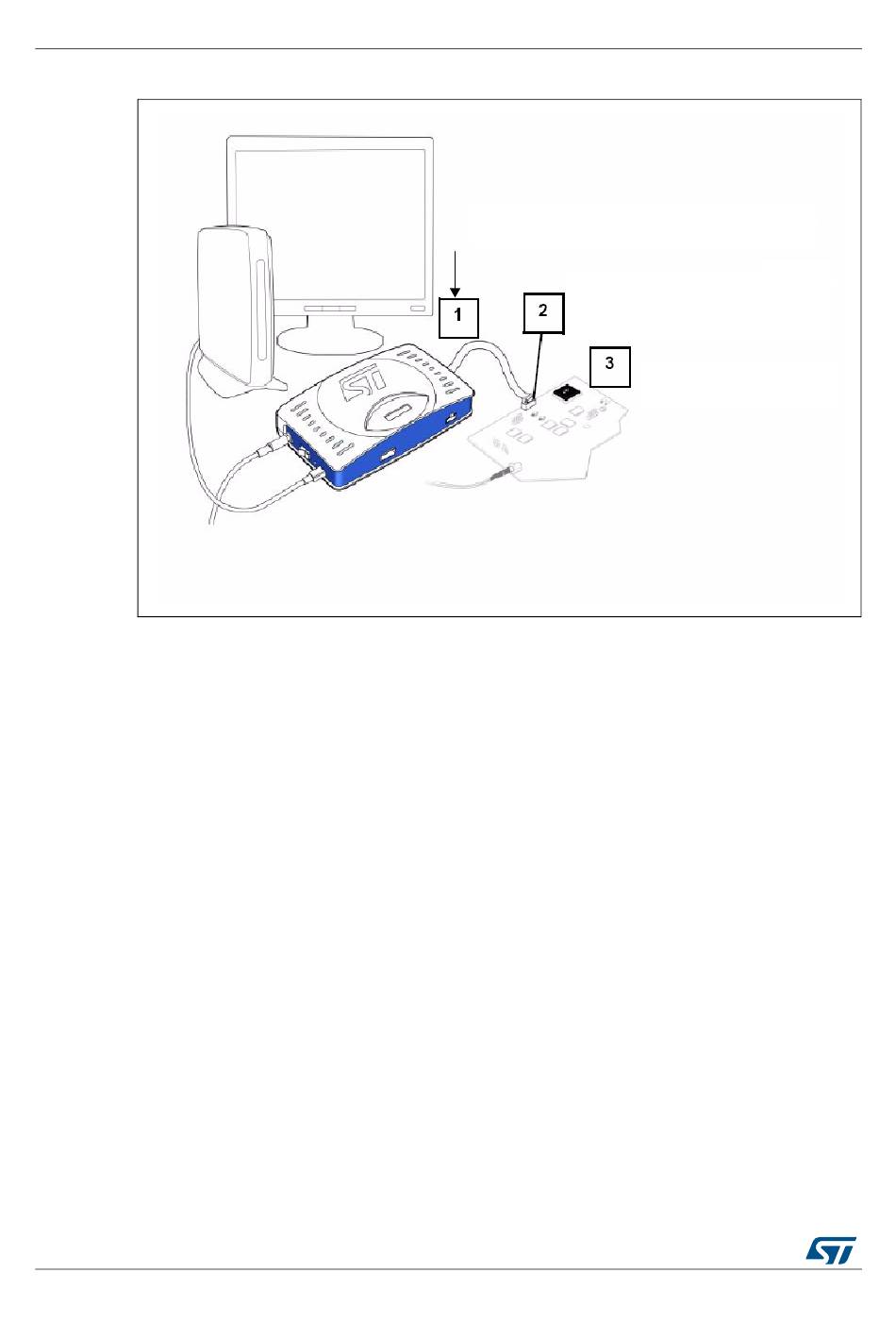

Figure 15. In-circuit programming and debugging
ICD/ICP flat cable connects STice to microcontroller via
ICD/ICP connector on application board
SWIM connector linked to microcontroller
(SWIM protocol for STM8, or ICC protocol
for ST)
ST microcontroller on
application board
24/40
AN2752 Rev 6
